Question

Color Vacuum Picture....

I saw on one of the threads some time ago a color coded vacuum picture for the FD. I want to double check all of my vacuum lines. Does anyone know where I can find it? As soon as the search function sees the word vacuum and million results pop up.

Thanks!

KehoeAutomotive is offline

Reply Like

Old

05-04-14, 04:39 PM

#2

seven1997

Senior Member

iTrader: (2)

Join Date: Nov 2002

Location: ID

Posts: 482

Received 0 Likes on 0 Posts

https://www.rx7club.com/3rd-generati...-turbo-749702/

seven1997 is offline

Reply Like

Old

05-04-14, 04:47 PM

#3

existanzrx7

Just Boosting

iTrader: (8)

Join Date: Mar 2004

Location: Chy-Town

Posts: 1,124

Received 7 Likes on 5 Posts

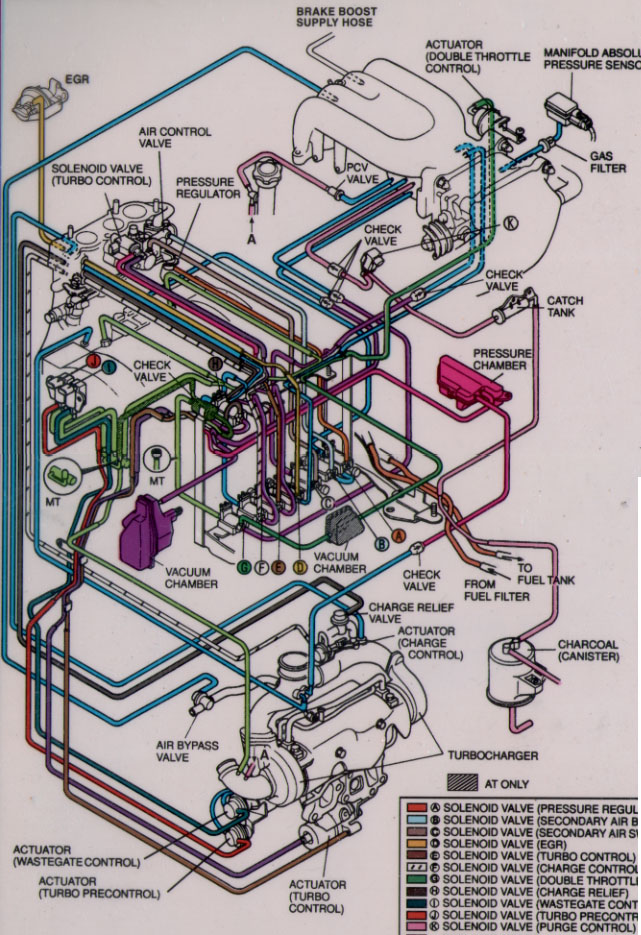

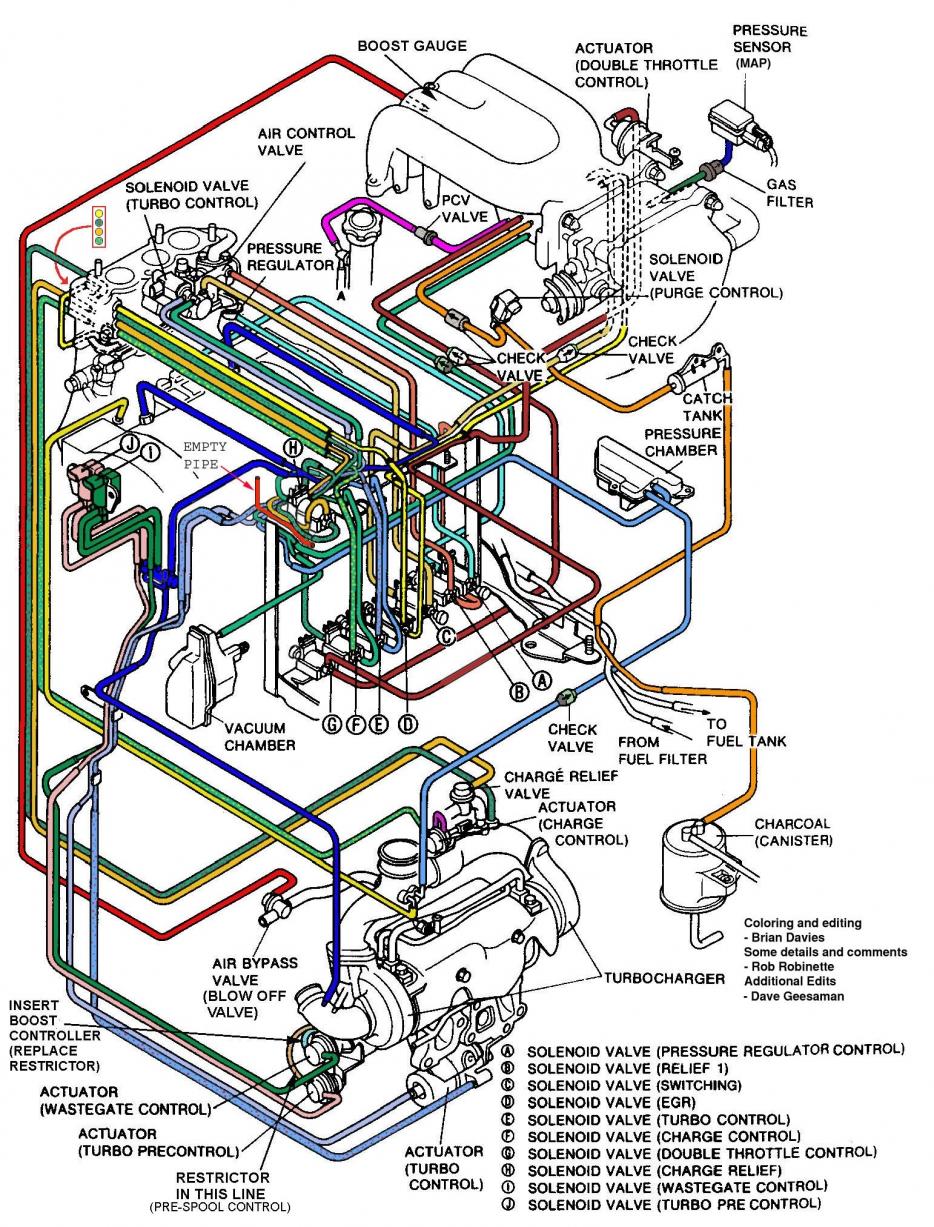

There are so many threads on here with this info if you really did search you should've found many. But here are some I have on hand.

Attached Thumbnails

Color Vacuum Picture....-26.jpg

Color Vacuum Picture....-vacuum_hose_diagram.jpg
