Clocking suspension bushings

Thread Tools

Search this Thread

Old May 25, 2012 | 04:49 PM
  #1
sc_frontier's Avatar
Thread Starter
Senior Member
Tenured Member 05 Years
iTrader: (3)

Joined: Oct 2008
Posts: 266
Likes: 1
From: Sherman, Tx
Thumbs up Clocking suspension bushings

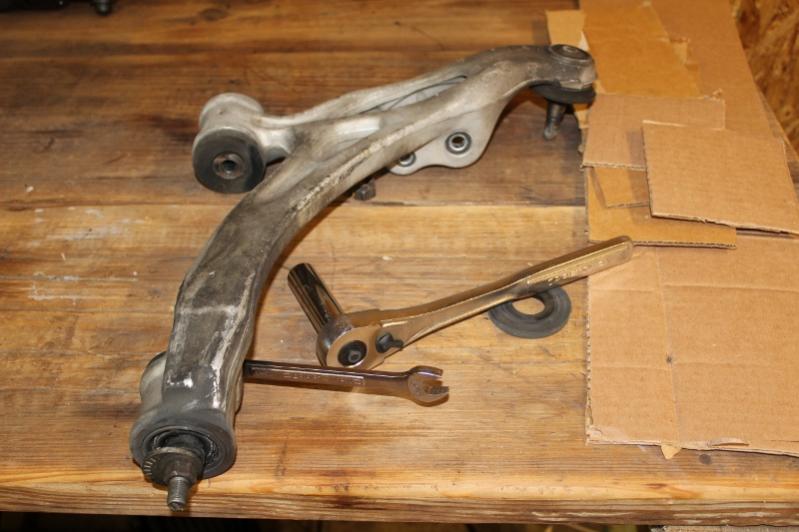

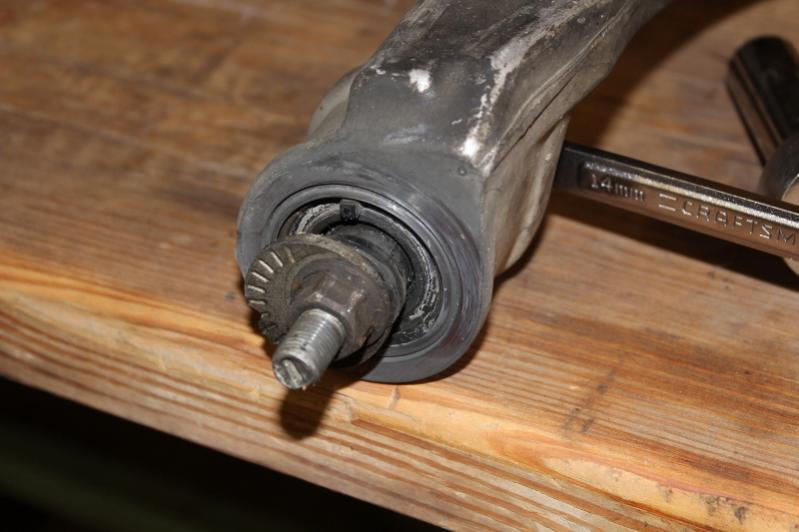

So while working on my lower front control arm, I began to wonder how the bushings in it actually worked. I realized that the rubber flexes inside the bushing, and the center race returns back to its resting place. This got me wondering if you should tighten the bushings with the suspension down, or with the car at ride height. After a little research, I learned that the best practice is to tighten rubber flex style bushings with the car at normal ride height, this is called "clocking". To some people this might be obvious, but I had never considered the effects on handling when a bushing could be bound. Furthermore, if you lower your car, these type of bushings should be loosened, bounce the car up and down to help them reset, and then re-tightened.
Attached Thumbnails Clocking suspension bushings-img_2469-800x533-.jpg   Clocking suspension bushings-img_2468-800x533-.jpg
Reply
Old May 25, 2012 | 08:13 PM
  #2
gracer7-rx7's Avatar
needs more track time
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (16)

Joined: Mar 2006
Posts: 9,767
Likes: 795
From: Bay Area CA
Yep. It's in the FSM too.
Reply
Old May 25, 2012 | 08:33 PM
  #3
Juan's Avatar
Im a tall midget.
iTrader: (28)

Joined: Feb 2001
Posts: 3,131
Likes: 6
From: So Cal, USA
I do this on BMW's otherwise the bushings wear out prematurely. I don't get many FD's with stock bushings but this is good practice especially on those with stock bushings and slammed ride heights. Those with poly bushings dont need to worry about doing this.
Reply
Old May 27, 2012 | 10:10 PM
  #4
razsays's Avatar
Don't Hate! Rotate!
Tenured Member 05 Years
iTrader: (5)

Joined: May 2010
Posts: 78
Likes: 0
From: Clearwater, FL
What's up Juan. I need a set of bushings. Do you still have the Powerflex bushings in stock? Would the sway bar mounts fit any aftermarket bars or just the stock sway bars?

Last edited by razsays; May 27, 2012 at 10:17 PM.
Reply
Old May 30, 2012 | 02:32 AM
  #5
Juan's Avatar
Im a tall midget.
iTrader: (28)

Joined: Feb 2001
Posts: 3,131
Likes: 6
From: So Cal, USA
Bushings are in stock. PM'd you
