Can someone identify this air box outlet for me?

Thread Tools

Search this Thread

Old Nov 12, 2006 | 01:56 PM
  #1
EricRyan's Avatar
Thread Starter
Autocrossed. I got CONED!
Tenured Member 05 Years
iTrader: (4)

Joined: Jun 2006
Posts: 629
Likes: 0
From: Lake Charles, LA

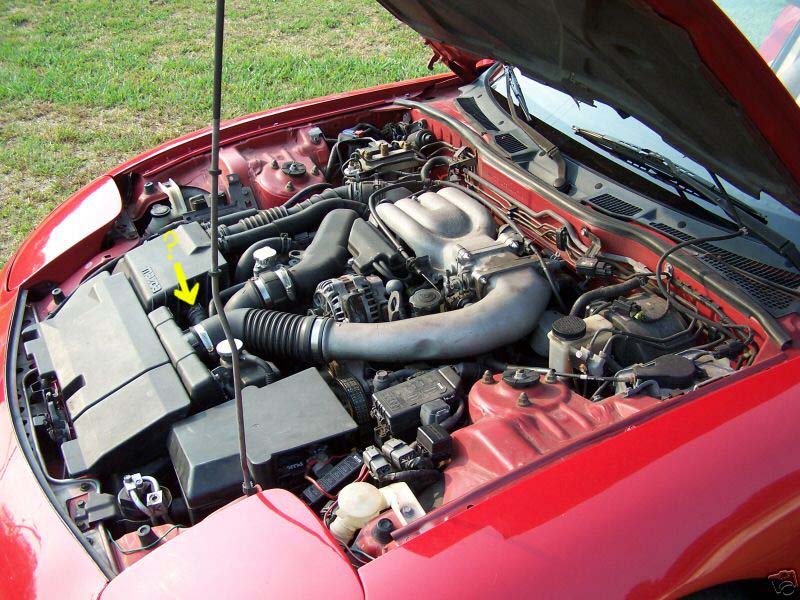

Can someone identify this air box outlet for me?



Thanks in advance.
Attached Thumbnails Can someone identify this air box outlet for me?-79_3.jpg
Reply
Old Nov 12, 2006 | 02:13 PM
  #2
bajaman's Avatar
Constant threat
Tenured Member 20 Years

Joined: Jul 2001
Posts: 4,968
Likes: 39
From: near Wichita, Kansas
It is there to vent excess pressure that could build up in the air box from the ABV and CRV.
Reply
Old Nov 12, 2006 | 02:20 PM
  #3
BillM's Avatar
RX-7's since 1980
Tenured Member 15 Years
iTrader: (4)

Joined: May 2006
Posts: 801
Likes: 59
From: NYC
the infamous hose to nowhere
Reply
Old Nov 12, 2006 | 02:31 PM
  #4
EricRyan's Avatar
Thread Starter
Autocrossed. I got CONED!
Tenured Member 05 Years
iTrader: (4)

Joined: Jun 2006
Posts: 629
Likes: 0
From: Lake Charles, LA
Yeah, it definitely goes to nowhere...

Thanks guys
Reply
Old Nov 12, 2006 | 05:15 PM
  #5
maxcooper's Avatar
WWFSMD
Tenured Member 15 Years

Joined: Jun 2001
Posts: 5,035
Likes: 4
From: SoCal
There is a muffler built into the air box to quiet the hose that dumps the excess air pumped by the air pump. (Note the reports of duck noises for aftermarket intakes, when the air pump is still in place.) That hose is just the outlet for the muffler. It just hangs off the air box, with nothing connected on the other end.

-Max
Reply
Old Nov 12, 2006 | 11:43 PM
  #6
cewrx7r1's Avatar
Eye In The Sky
Tenured Member: 25 Years
iTrader: (2)

Joined: Feb 2001
Posts: 7,941
Likes: 133
From: In A Disfunctional World
If you vent the ACV dump to atmosphere, plug the enlet and outlet tubes for the built in muffler, and cut out the muffler, you will improve the breathing capacity of the filter.

Look at the space the muffler consumes of the top and how it distorts the air flow around that area before it goes to the turbos.
