Guys,

Am in the process of wiring this to my FD race car...


picture sharing

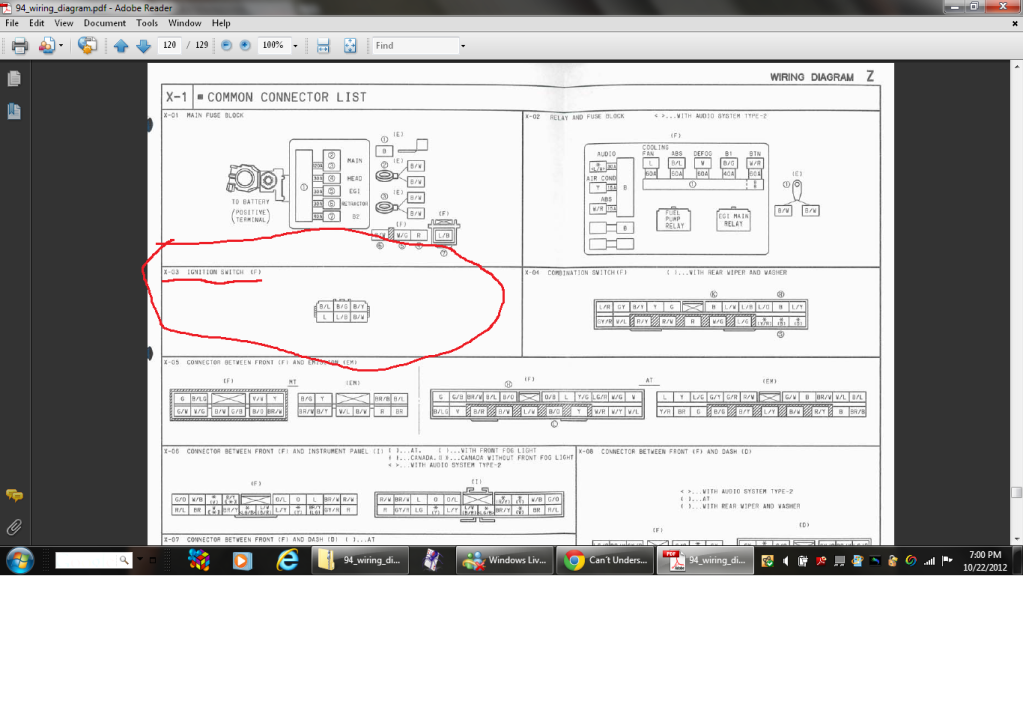

But I canīt understand the FSN where it shows this connector...


images


photo hosting

Please your help...

Which wire to Tap for ACC ON & START ??

Thanks..!!!



Wait for at least one other person to chime in but the Ignition On should be Black/White coming off the Ignition Switch.



Looks like inorder to keep all of the functions of the key switch you will need to tap into the ig1 and ig2 wires and maybe the acc wire.



Thanks a lot GG....

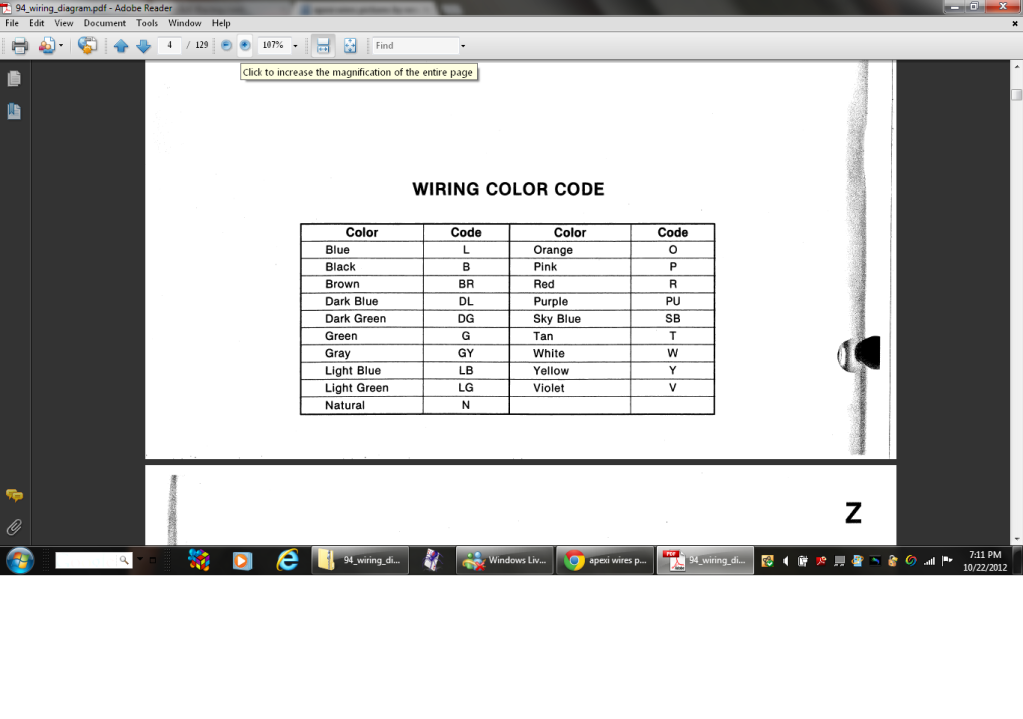

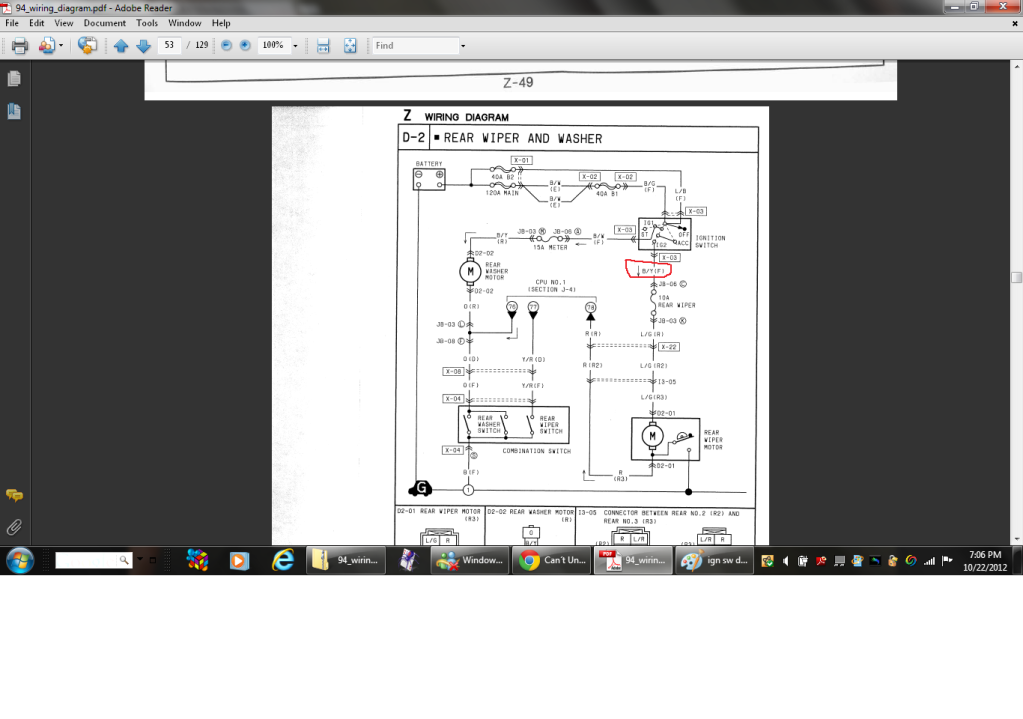

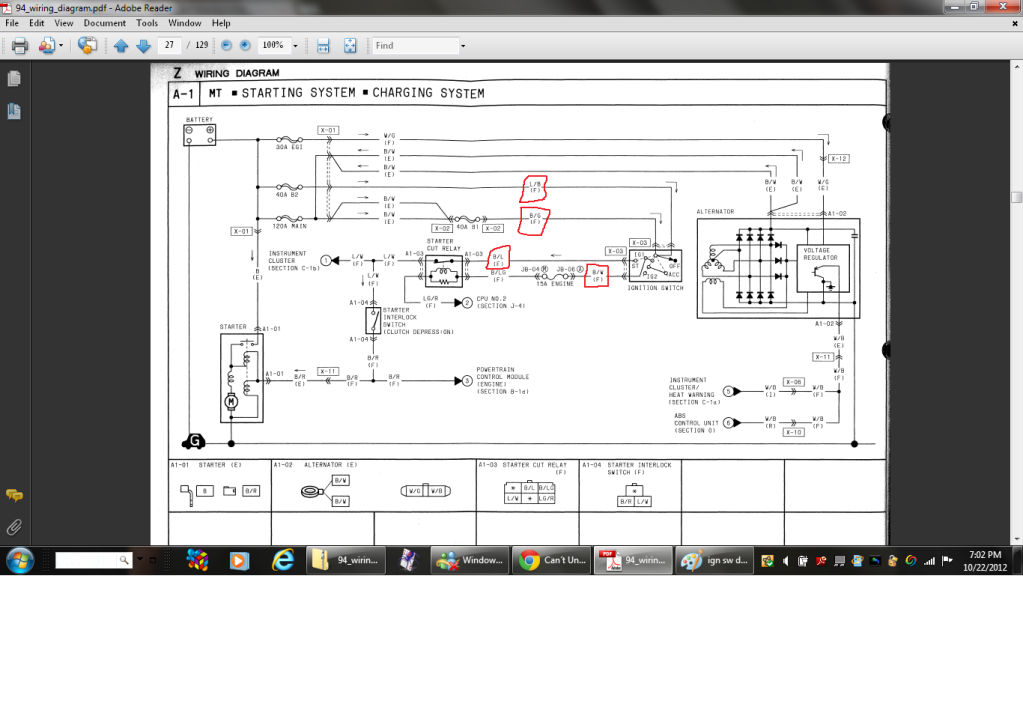

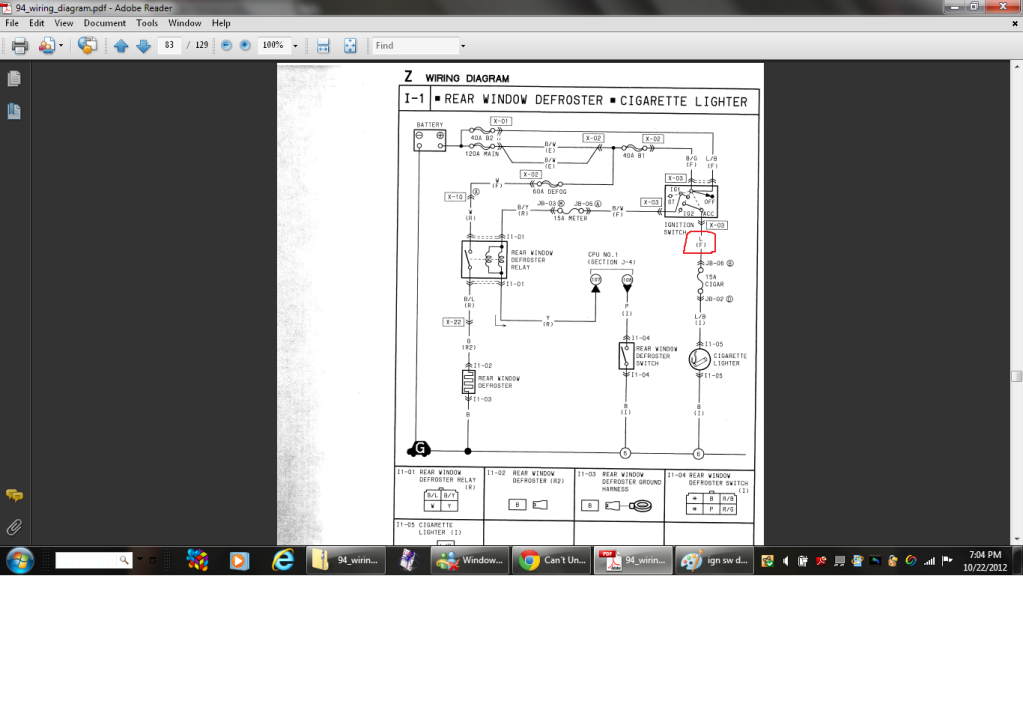

Found a better diagram that can help a lot more...


picture sharing

It looks like for some reason I donīt have BLACK/BLUE wire, but I have BLACK/RED instead on the Top Left.

Is thatīs the way it is, then thatīs my START WIRE.

But also, according to diagram above; there is not ONE ACCESORY WIRE, all of them turn something On. It means all of them would need to be wired to ACC SWITCH.

Am I wrong here ??

Gracias..!!



Damn..!!! You guys are awesome..!!!

So, am I right ?? Do I need to power all wires (Except Starter) with the ACC Switch to retain functions ??

thanks..!!



That looks correct to me. The color may be wrong because you have a JDM FD.
