Hi guys , I have a 92Jpsec
Does anyone know where to solder the top
Connector of the brake light switch?

No•1 in picture (top connector)


What does it do if I don't have it ??

More info ;
my original harness is from a 92 Jspec
The one I got is from 94 Jspec
Another 10pin black connector is missing on the 94 (where the brake light switch connector connects on the 92)

Thank you it's for your help



Anyone help please..



I've seen a couple dash harnesses for sale in classifieds.



on the 3 gen the small 2 pins is for the deactivation for cruise control which uses the same switch on the 2 gen. on some mazda(protege,626 ect) that didnt have cruise control factory they came with a 2 pin for the brake light switch.



Thanks you for helping me
So...I've been searching and I got figure
That the brake switch Q-03 is connected to the 20pin connector Q-01 (Cruise control)

This new firewall harness that I got
Does not have Q-03 AND Q-01

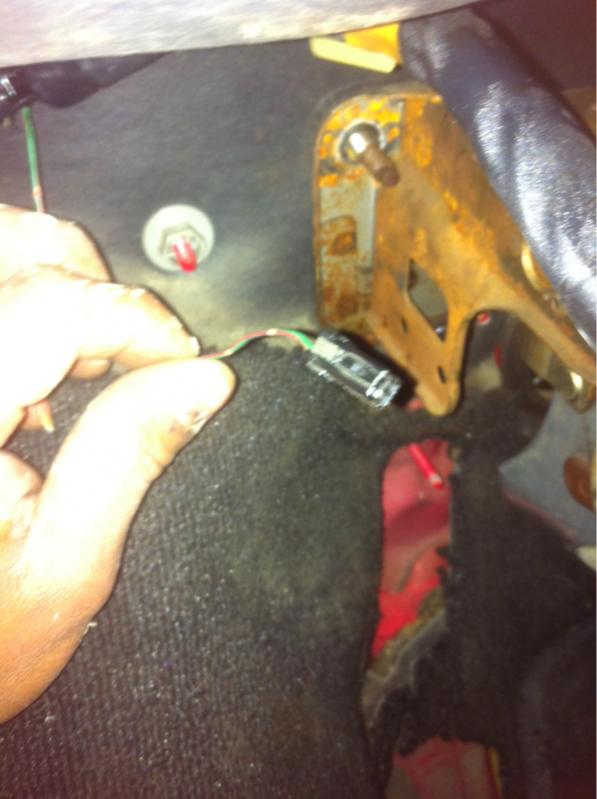

Instead they are replace by this unknown connector (Green/Red) by the left of clutch switch (which I don't know yet to where it connected to)

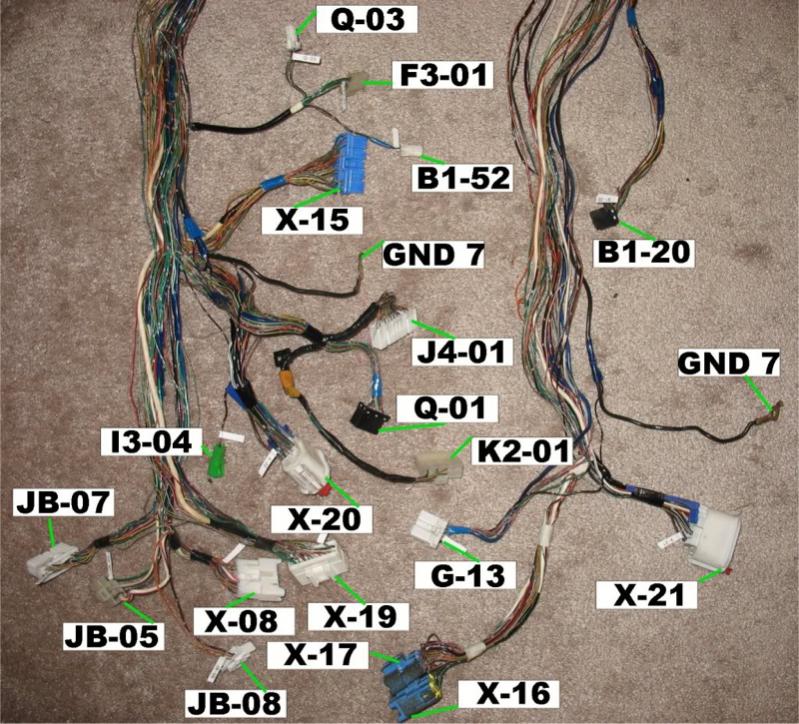

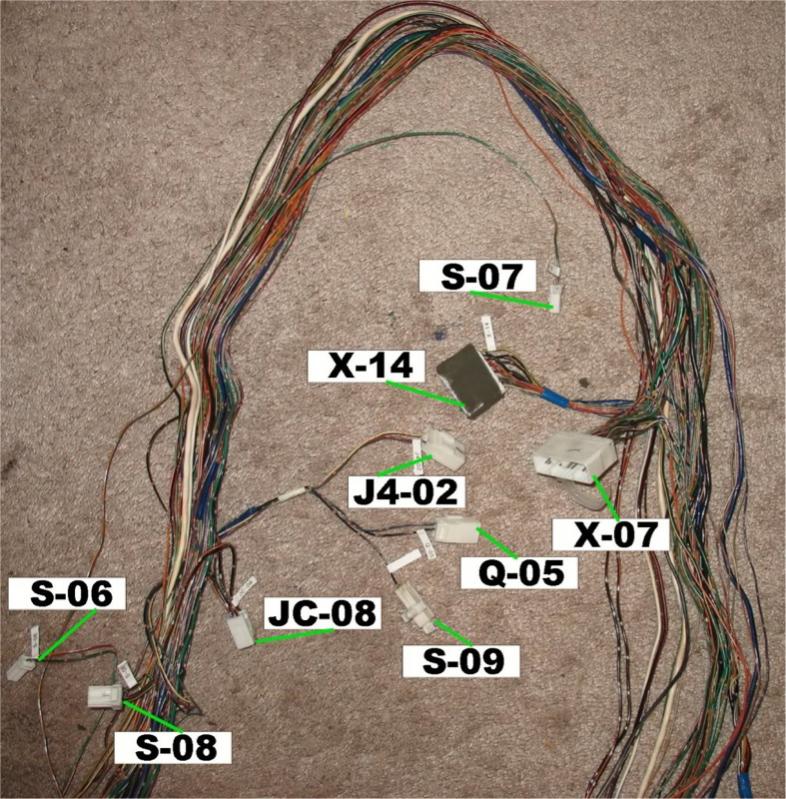

I've been using this picture from 93 LHD for reference and "convert" to RHD











Reading Dale Clark'cruise control , Aren't all
FD's (and FD3S?) wired up for Cruise Control ??

Why this harness doesn't have Q-01 & Q-03
Actually why is it "replace" by this unknown black connector?



I simply don't want to buy harness after harness , I think I have all the connectors to make one
I simply want to know/understand my problem.

Thank you.
