Beginner PowerFC Questions
08-29-05, 10:38 PM
#1
Newbie
Thread Starter
Join Date: Aug 2005
Location: Pittsburgh, pa
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Beginner PowerFC Questions
Does the PowerFC use input from the o2 sensor or can you just remove the o2 when using a PowerFC? And why are there wires cut by the yellow connectors that go into the PowerFC?
08-29-05, 10:40 PM
#2
Originally Posted by csoell
Does the PowerFC use input from the o2 sensor or can you just remove the o2 when using a PowerFC? And why are there wires cut by the yellow connectors that go into the PowerFC?
08-29-05, 10:41 PM
#3
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
The PFC can use the stock o2 sensor for cruise conditions, you can also turn that function off -- so no, you don't need to run the stock o2 sensor.
You have to cut four wires or pull the pins out of the PFC because the Japanese FDs did not have EGR or AWS functions. The car will run funny without removing these four connections.
You have to cut four wires or pull the pins out of the PFC because the Japanese FDs did not have EGR or AWS functions. The car will run funny without removing these four connections.
08-30-05, 01:36 AM
#4

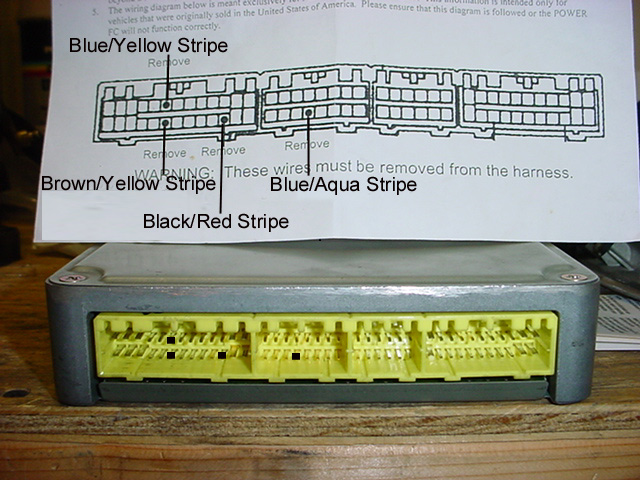

I just installed my power FC cut the wires and left the os sensor in place and i'm installing a FJO wideband.... Here is a pic of what wires to cut or you can be brave and open the power FC box and unsolder the pins but I would just cut the wires and tape them up..
Last edited by Jxy nyc; 08-30-05 at 01:37 AM. Reason: typos
