^ yeah, looks like a 2yr old made it..and the finish doesn't match the dash

i say stick with frank's- but i'm just one opinion



oh my goodness that is so clean

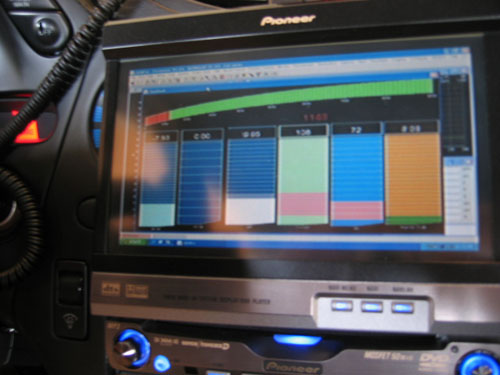

For tuning purposes, I have my laptop running AEM's engine management software. I noticed that there was a TV video out port on the laptop, and a VCR in port on my stereo...Anyway, here's what became of that:



It's a functional little dashboard template...haven't taken the time to make it pretty or anything...yet



Hyperite.... that's the best I've seen so far...

Maybe someone gets the idea of setting up an engine management system, using such a screen, but with touchscreen to change settings....



it's quite doable, actually. my friend is purchasing a touchscreen to go with his in-car Pc. Its simple to hook up, too, just has your regular monitor cable as well as a ps/2 mouse cable that you plug into a mouse port. that would be the pimpness.



Isn't the new pioneer touch screen in dash DVD/Nav. like 20 G's??



Yeah, it doubled the value of my car :-\

After spending a good chunk of time tuning, I wouldn't want to do it with a touch screen. I need a mouse and a number pad, and I like to make the changes when I'm not actually IN the car I use log files and fuel maps to make my changes.

There's an A/V interface to the hideaway unit with the Pioneer, and I believe it outputs the center pixel that was touched, but I'll have to do some engineering to figure out how to use that...and I'm not in a rush to be forced into keeping a laptop in my car.



BBAAAAAAAMMM!!! My God...TRUE BALLER!! That's SUPER crucial man. Holy crap. So you can basically trade in that screen for another FD!!



thats a somewhat clear pic of my inside, on the a-pillar is boost (top) and air/fuel (bottom).. THEN, if you look closely, inside my dash pocket (below the radio), to the left of my valentine one concealed display thingie is my nordskog led digital water temp gauge.. i know, its kinda hard to see cause of the steering wheel..and i put it there cause im getting a pfc soon and i wont be needing that so i just put it there for now..i did a clean job though, no wires showing or anything

i'll prob take new pics tomorrow if this thread is still alive..



If interested in teh center speaker gauge pods gotham racing carries them

www.gothamracing.com





of course.... you ****



Looks like there are going to be 2 *****!!!



Custom one off pod by FlyRX-7. Thanks Frank.



I did this myself a while back:





.....wish I hadn't chosen Autometers and for that much an A/F gauge. Not as nice as some that others have posted---just another idea.



of course



did you ever sell your car?



Hyperite... nice unit!!


Nah, haven't sold it yet... I'm working on a couple of more events for the time being...



LOL, you have your license plate the same place i do....stupid new jersey front plates



I got my little commander screen reading from the PFC. That makes me happy posted on my dash.



RotaryWhat? that looks VERY good! I did mine the same a while back.. But with the gauges on the bottom. In the process of doing another one with an A/C relocation..





Wow some nice setups



Thats nice - do the other interior plastics match this one (with its rougher texture?)

Where did you get this b/c Im seriously thinking about moving my gauges from the a-pillar.



Damn! You guys with the custom guages and a/c control relocations do great work.
