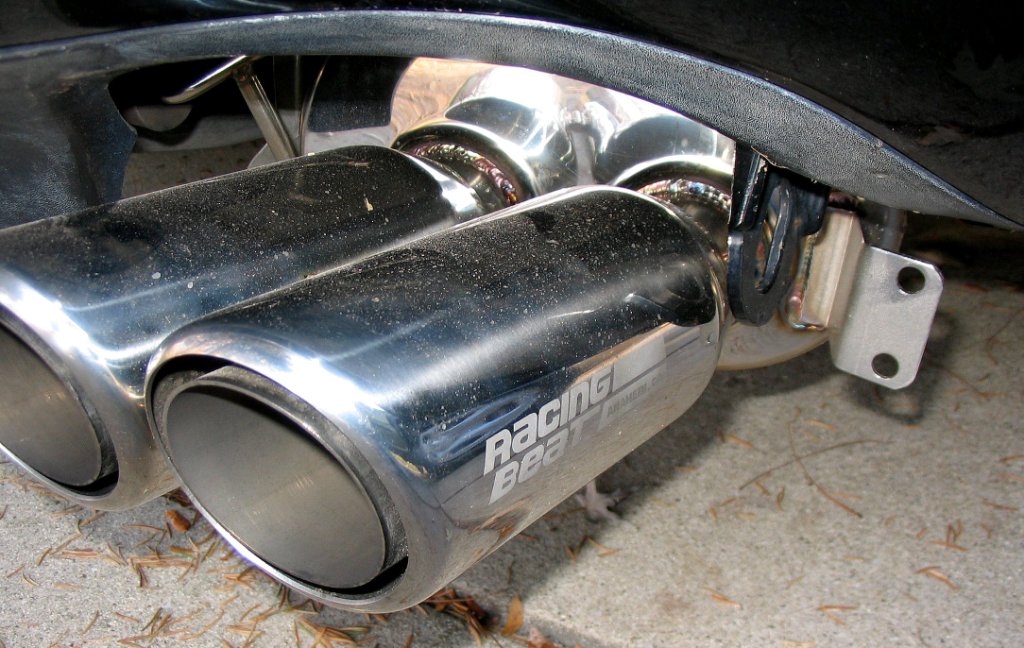

does anybody have a picture of their RB exhaust installed? i need to know what bracket or metal bar im missing. the RB has that side bar on the right side with the two holes and i have the hanger(hook) right above the exhaust but is there a bar that im missing or how is it attached together?? i ordered what i thought i needed but got the hanger instead. i had a muffler shop look at it and they said there must be some kind of bar that comes down and attaches to the side bar on the exhaust.
thanks!



You are missing the stock mounting bracket. It is used on both the stock exhaust and RB exhaust. If I had any extras I would give it to you, but I dont. You should be able to find on for about $10-20.00 shipped off the forums.



or go to the dealer and they are 11 bucks I think..





Thats the part i need! anyone have the part # for it? Apparently i ordered the wrong part from malloy. Called Ray earlier today but hes out till monday.
thanks for the pic!



I usually order from Ray at Malloy, or the local dealer. Also, worldpartsexpress.com usually has some great deals but... I just checked and no exhaust hangars.



I have mine at home, I will let you know tonight, unless you've found one already.



Here are the part (3) #'s.
FE20-40-061-Rubber, hanger
N3A1-420-190-Bracket, hanger
N3A1-420-290-Hanger
Good luck

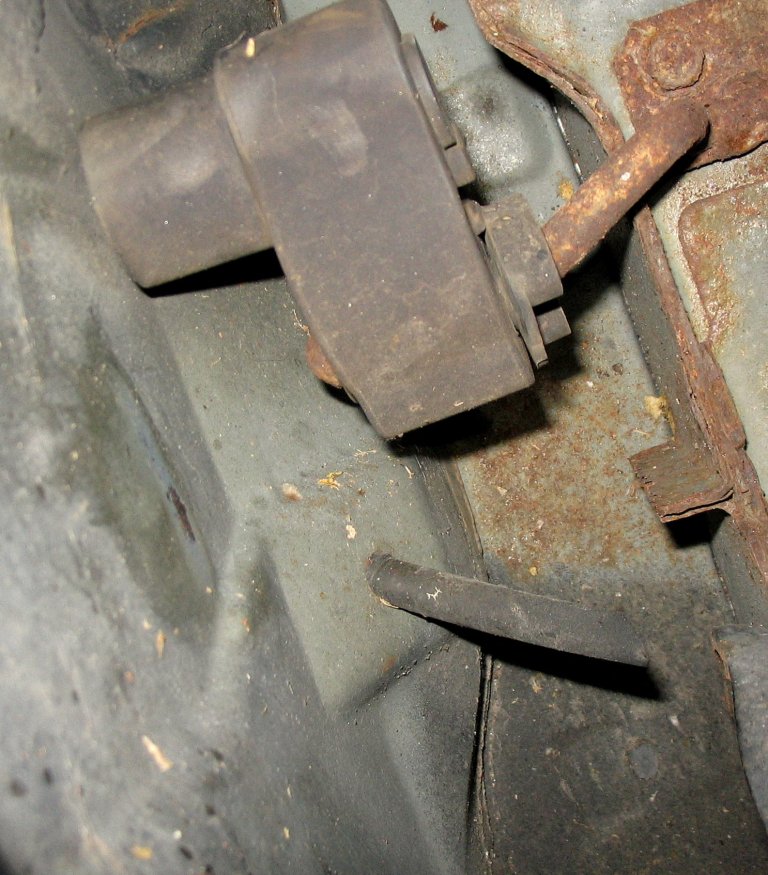

Well i feel like a dumb@$% now! hahaah After looking at the picture of the hanger attached to the exhaust that you posted it turns out i did get the right part # N3A1-40-290A(new updated part from Malloy). When i got the part it looked similar to the upper hanger with the rubber doughnut so automatically i thought i got the wrong part. now that i looked at my hanger and compared it to your picture it turns out to be the right part after all.
thanks again guys!



Cool!

You are going to love that RB exhaust.
