Any interest in custom HID lights?
11-10-04, 02:25 PM
#26
Full Member
Join Date: Apr 2004
Location: states
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kento
Which ones "work quite well"? Are you referring to the HID retrofits? If so, I'd have to disagree, as I have that setup. The low beams are OK, but the high beam pattern is poor. The light bandwidth of HID doesn't lend itself well to simply moving the location of the bulb to change the reflection/location of the light pattern, and especially with a projector lamp. OEM HID lamps do not use a "bi-xenon" bulb configuration because of this.
11-10-04, 02:31 PM
#27
Full Member
Join Date: Apr 2004
Location: states
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
There is another style of high/low HID system that uses a B field to manipulate the arc within the envelope. They have no moving parts and work extremely well; and have a extreme cost as well...
Originally Posted by J_J
I think what you are describing is an HID kit. In a bi-xenon projector the bulb does not move at all. Instead, a shield blocking off the light above the cutoff drops down and that is how you get illumination above the cutoff line. The transition (solenoid dropping and raising the cutoff shield) happens almost instantly. In aftermarket HID kits with a high beam option, there is either a scoop that tries to emulate this effect or the bulb moves fore/aft to change the beam characteristics.
All xenon bulbs themselves are low beam only; if you switch on your high beams the HID bulbs will likely switch off.

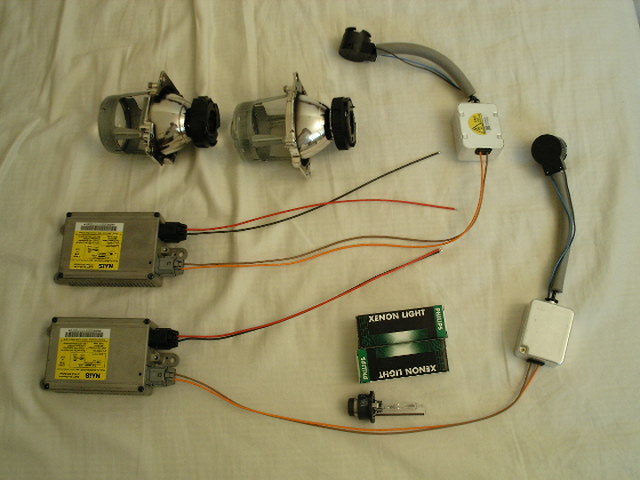

These are the components I will try to use shown below. A lot of high-end vehicles have bi-xenon as a lighting option (probably adds about $500+ to MSRP). The projectors below are the same ones used in the new E-class Mercedes and 7-series BMW.
I'm going to try these but they are bigger than the M3 projectors I was using so this project is going to take some time.
All xenon bulbs themselves are low beam only; if you switch on your high beams the HID bulbs will likely switch off.
These are the components I will try to use shown below. A lot of high-end vehicles have bi-xenon as a lighting option (probably adds about $500+ to MSRP). The projectors below are the same ones used in the new E-class Mercedes and 7-series BMW.
I'm going to try these but they are bigger than the M3 projectors I was using so this project is going to take some time.
12-08-04, 11:20 PM
#30
S2K
Thread Starter
Join Date: Jul 2003
Location: Irvine, CA
Posts: 1,116
Likes: 0
Received 0 Likes
on
0 Posts
Pics are coming this weekend...I'll finish it up this Sunday. Can anyone host a video file? I want to take a short clip of the lights in action when I'm finished.
12-09-04, 05:50 AM
#31
Missin' my FD
Join Date: Aug 2002
Location: Seminole, FL (Tampa Bay Area)
Posts: 1,755
Likes: 0
Received 0 Likes
on
0 Posts
I can host a video. E-mail it to pianoprodigy@gmail.com
12-09-04, 03:25 PM
#35
S2K
Thread Starter
Join Date: Jul 2003
Location: Irvine, CA
Posts: 1,116
Likes: 0
Received 0 Likes
on
0 Posts
Parts came in today. The projectors were inported from Germany. The Euro version projector from the BMW M3 has a sharper output compared to our domestic version.
12-09-04, 05:17 PM
#41
E-code projectors might not be DOT legal for those who have to worry about that sort of thing. I believe the east-coasters have to deal with vehicle inspections that include headlight checks.
I prefer as much portable daylight as possible, so bring on the Euro M3's!!!
-s-
I prefer as much portable daylight as possible, so bring on the Euro M3's!!!
-s-
