Air Conditioning leak - See pic

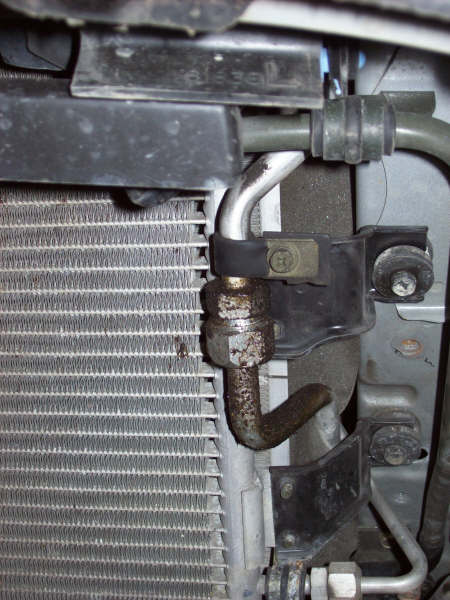

I just my vehicle in the shop and they noticed that the AC was leaking at the condensor nut - where the condensor and pipe meet. We checked the parts catalog and could not see if there was an "O" ring in this fitting. If there is no "O" ring, what part is the most common to fail?

Thanks.

Reply Like

05-23-08, 02:37 PM

Speed of light

Form follows function

iTrader: (8)

Join Date: Oct 2004

Location: Now in Arizona

Posts: 1,203

Likes: 100

Received 33 Likes on 21 Posts

It's called a pilot tube fitting and you bet there's an o-ring in there!

Reply Like

05-23-08, 09:12 PM

IRPerformance

Sponsor

iTrader: (41)

Join Date: Apr 2003

Location: NJ

Posts: 11,347

Likes: 75

Received 317 Likes on 190 Posts

Should definitely be an o-ring in there. If you have a harbor freight tools by you, they sell nitrile o-ring kits that work for many applications. Otherwise order it from Mazda. Be sure to properly evacuate the system and recover the refrigerant.
