Aftermarket Sway Bar Mounts
Hi All,
I installed Tein Flex coilovers this weekend and when I was installing the fronts I noticed my sway bar mounts were bent. The left one is very badly bent and the right one only slightly bent.
I have looked on a few sites for aftermarker reinforced sway bar mounts and only come across one site, SRMotorsports.com. http://www.srmotorsports.com/sr93susp.html They want 300 for them.
Do any of you know of any other manufacturers that have them? Any that are less than 300?
Also do any of you own or recommend Pettit Racing's swaybar reinforcer? http://www.pettitracing.com/sections/Suspension.html
Thanks,
Joseph
'94 Black & Tan Beast
I installed Tein Flex coilovers this weekend and when I was installing the fronts I noticed my sway bar mounts were bent. The left one is very badly bent and the right one only slightly bent.
I have looked on a few sites for aftermarker reinforced sway bar mounts and only come across one site, SRMotorsports.com. http://www.srmotorsports.com/sr93susp.html They want 300 for them.
Do any of you know of any other manufacturers that have them? Any that are less than 300?
Also do any of you own or recommend Pettit Racing's swaybar reinforcer? http://www.pettitracing.com/sections/Suspension.html
Thanks,
Joseph
'94 Black & Tan Beast
#2
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
There's the Widefoot mounts that quite a few people use. I think they're about the same price as the SR Motorsports mounts.
Their site's down right now but it's www.widefootracing.com
BTW, the sway brace reinforcer that Pettit sells is actually a Racing Beat part -- marked up $20.....
By all accounts, it seems to be a good piece.
Their site's down right now but it's www.widefootracing.com
BTW, the sway brace reinforcer that Pettit sells is actually a Racing Beat part -- marked up $20.....
By all accounts, it seems to be a good piece.
#4
Eats, Sleeps, Dreams Rotary
Joseph,
about Widefoot. Just do a search for David Breslau and mounts...somewhere on here there is his contact info. I just purchased a set from him like a month ago and I can easily say that these are the best quality pieces that I have ever put on my car!
When I first got them I was like man this is it?? But the quality is beyond first rate. It is one solid (I think billet) block of aluminum. It raises the mount of the sway bar also to lessen the chance of hitting anything in the future and bending things again.
The best part is installing them...they fit PERFECTLY!! And when you put them in you really appreciate the subtle engineering that he did. On the side there is an additional plate that secures to the frame to really give it strength and rigity....
I HIGHLY recommend the piece...pm me if you have any questions
about Widefoot. Just do a search for David Breslau and mounts...somewhere on here there is his contact info. I just purchased a set from him like a month ago and I can easily say that these are the best quality pieces that I have ever put on my car!
When I first got them I was like man this is it?? But the quality is beyond first rate. It is one solid (I think billet) block of aluminum. It raises the mount of the sway bar also to lessen the chance of hitting anything in the future and bending things again.
The best part is installing them...they fit PERFECTLY!! And when you put them in you really appreciate the subtle engineering that he did. On the side there is an additional plate that secures to the frame to really give it strength and rigity....
I HIGHLY recommend the piece...pm me if you have any questions
#5
Eats, Sleeps, Dreams Rotary
Series7....
I don't have a digital camera....but I should have gotten one for the install. I commented on the install when I had it done in a shop here in dallas (see the South forum)....
To tell you the truth...the mounts are probably overkill, if you plan on tracking your car...its a nice upgrade if you bent yours previously, if not...save some money and get the stock ones...REALLY...
I was just impressed on the fit...and finish...IT WAS SOO EASY TO INSTALL!!
The only bar that I know it doesn't work on is the Tripoint bar with the bronze bushings...the regular tripoint bar (the one I got) works fine...
I don't have a digital camera....but I should have gotten one for the install. I commented on the install when I had it done in a shop here in dallas (see the South forum)....
To tell you the truth...the mounts are probably overkill, if you plan on tracking your car...its a nice upgrade if you bent yours previously, if not...save some money and get the stock ones...REALLY...
I was just impressed on the fit...and finish...IT WAS SOO EASY TO INSTALL!!
The only bar that I know it doesn't work on is the Tripoint bar with the bronze bushings...the regular tripoint bar (the one I got) works fine...
#6
Rotary Freak
Join Date: May 2002
Location: Houston
Posts: 1,742
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#8
Rotary Freak
Join Date: May 2002
Location: Houston
Posts: 1,742
Likes: 0
Received 0 Likes
on
0 Posts
If you aren't going to upgrade the stock anti-sway bar, and not beat the crap out of the car, the stock ones are fine. Otherwise they suck ***. The quickest way to ruin the front is to upgrade the sway bar and run some SCCA events.
#9
Racing Beat swaybar
On that thought, does anyone here use the Racing Beat sway bar mount brace?
http://www.rxecret7.com/fronswaybarr.html
Does anyone know of a Japanese part similar to this?
(Living in New Zealand, parts from Japan are cheap and shipping is a breeze - parts from the US are not)
http://www.rxecret7.com/fronswaybarr.html
Does anyone know of a Japanese part similar to this?
(Living in New Zealand, parts from Japan are cheap and shipping is a breeze - parts from the US are not)
#10
Senior Member
iTrader: (2)
Join Date: Oct 2001
Location: Orange County, CA
Posts: 456
Likes: 0
Received 0 Likes
on
0 Posts
RE Amamiya has a NEW sway bar mounts with a brace in one piece. It's on there website if you could read and find it. Also it was on option Feb or March. (Option and RE Amamiya site are both in Japanese)
http://www.re-amemiya.co.jp/new_part...brige_bar.html
-joe
http://www.re-amemiya.co.jp/new_part...brige_bar.html
-joe
#13
Lives on the Forum
Originally Posted by M104-AMG
If I'm going to keep the stock front swaybar, and compete in autocross
From the rules:
"Non-standard lateral members which connect between the brackets for the bar are not permitted."
Last edited by DamonB; 02-03-05 at 12:08 PM.
#14
Do it right, do it once
iTrader: (30)
Originally Posted by DamonB
Stock, Street Prepared and Street Touring classes allow aftermarket front sway bar mounts but the mounts cannot be tied together. That makes both the Racing Beat brace and the A-Spec Tuning pieces shown illegal for any class other than Street Modified, Prepared or Modified.
From the rules:
"Non-standard lateral members which connect between the brackets for the bar are not permitted."
From the rules:
"Non-standard lateral members which connect between the brackets for the bar are not permitted."
Go SM2 and you'll love it.
#16
Rotary Freak
iTrader: (19)
Originally Posted by 93silverbullet
I just got mine from AWR. Cost was $134.00 +S&H. Here's the link: http://www.awrracing.com/pages/rx/rxsusp.htmlInstall was a snap!
#18
Lives on the Forum
Originally Posted by M104-AMG
BTW: the Tri-point swaybar reinforcement is also approved for Super Stock as well. Anyone know how much they are ?
Too much. $125 just for the braces from Mazda Motorsports; I would expect Tripoint to be about the same. I would just buy stronger aftermarket mounts that don't need the braces. You only need the braces if you also run the solid bushings for the Tripoint bar shown in the pic. I happen to use the braces because I bought the whole package at a great deal, but if I were buying it new I would get the Tripoint bar with plain bushings and then use stronger mounts with no braces.
#19
Senior Member
Join Date: Apr 2003
Location: Seoul, Korea
Posts: 379
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by LetsGO7
RE Amamiya has a NEW sway bar mounts with a brace in one piece. It's on there website if you could read and find it. Also it was on option Feb or March. (Option and RE Amamiya site are both in Japanese)
http://www.re-amemiya.co.jp/new_part...brige_bar.html
-joe
http://www.re-amemiya.co.jp/new_part...brige_bar.html
-joe
#21
Full Member
I picked up the one from rotary extreme. Give Chuck a call, great service
http://www.rotaryextreme.com/fdindex.html
http://www.rotaryextreme.com/fdindex.html
#24
Lives on the Forum
Originally Posted by LDawg
Shows $134.00 for me. Front Sway Bar Mounts (P/N 01-E403), right?
Either you don't remember what you payed, they were on sale at the time or I can't read

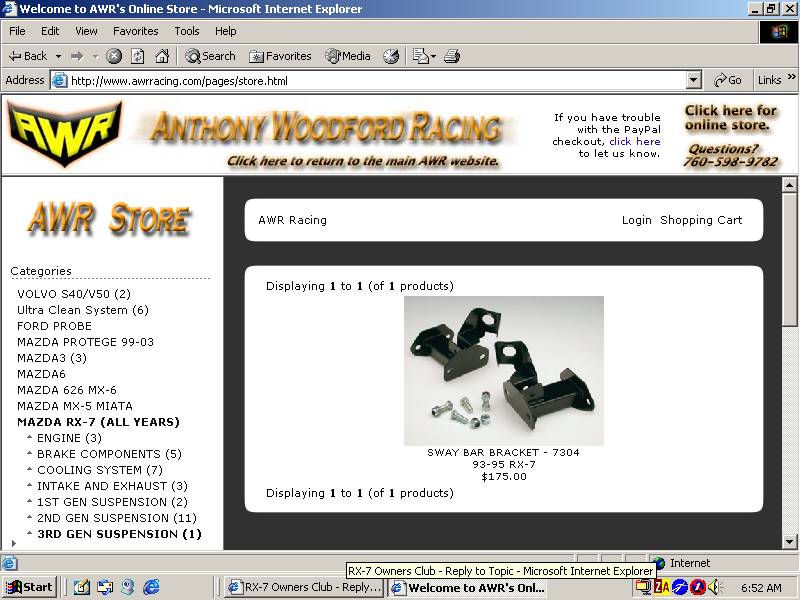

The FD part is $175:
#25
Living the dream...
iTrader: (7)
Originally Posted by DamonB
That part says "needle bearing mounting blocks" and is listed for use in EP or ITS which means those are not FD parts, they are FC parts. Notice how everything else on that page is for an FC?
Either you don't remember what you payed, they were on sale at the time or I can't read
The FD part is $175:
Either you don't remember what you payed, they were on sale at the time or I can't read
The FD part is $175:
Sorry for the confusion..
