ACV Wire is homeless.. help??
Hey guys. So before i get in **** for starting a new thread let me tell you first that i've been searching the forums and searching on my car for about 3 hours now... lol. It's probably something super simple which is why I can't find it.
Anywho. My car: 92 efini fd. Stock. still seq set-up. I was replacing vacuum lines in my rats nest and like an idiot figured i would remember where everything went without marking anything. Putting everything back together i could not figure out for the life of me where the wire (coming out the top) of the acv hooked up too. I will post 2 pics. 1 pic from my car, the other is not.

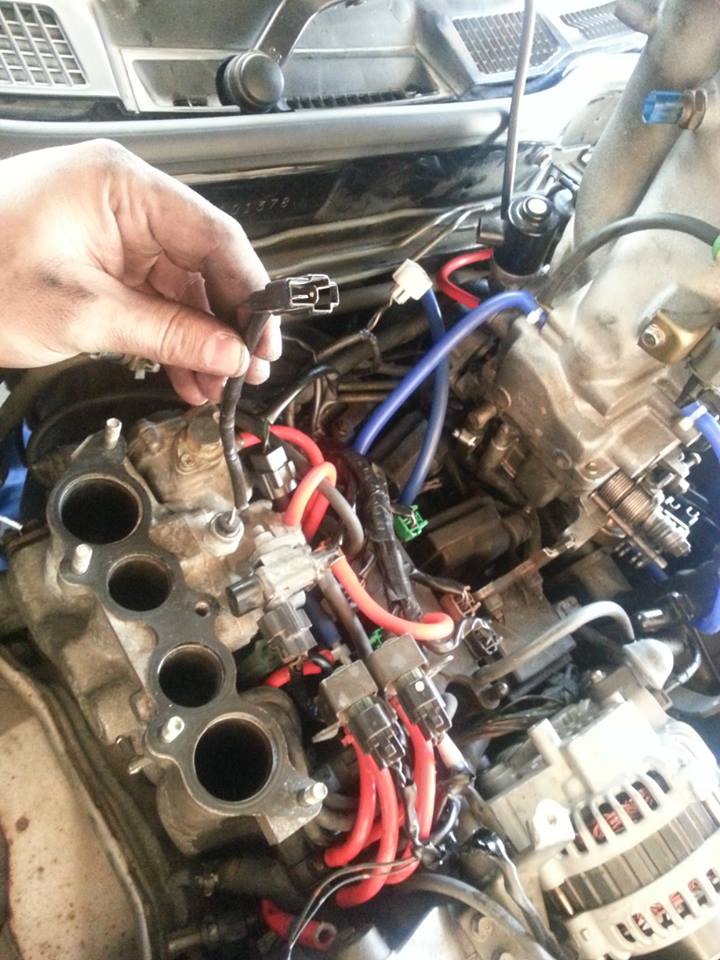

The wire i'm talking about is the one beside the top right corner of the yellow box and in the other pic the wire in my hand
** ACV wire, where does it go? Everything stock
Anywho. My car: 92 efini fd. Stock. still seq set-up. I was replacing vacuum lines in my rats nest and like an idiot figured i would remember where everything went without marking anything. Putting everything back together i could not figure out for the life of me where the wire (coming out the top) of the acv hooked up too. I will post 2 pics. 1 pic from my car, the other is not.
The wire i'm talking about is the one beside the top right corner of the yellow box and in the other pic the wire in my hand
** ACV wire, where does it go? Everything stock
#2
Original Gangster/Rotary!
iTrader: (213)
It plugs into a like connector on the engine harness.... it's probably stuck down below the Air Control Valve somewhere. Get a bright light and search around in that area of the rat's nest.
Consider using shop towels in those LIM runners, or buy a Sakebomb Garage nut blocker. You're asking for trouble
Consider using shop towels in those LIM runners, or buy a Sakebomb Garage nut blocker. You're asking for trouble
#3
No Rotor No Motor =)
Thread Starter
Thanks man, i'll take a look tomorrow. I was hoping i wouldn't have to take everything apart again =S And i did have my LIM plugged but i was literally putting it back on and was like.. where the hell does this go lol
