airboarder

iTrader: (6)

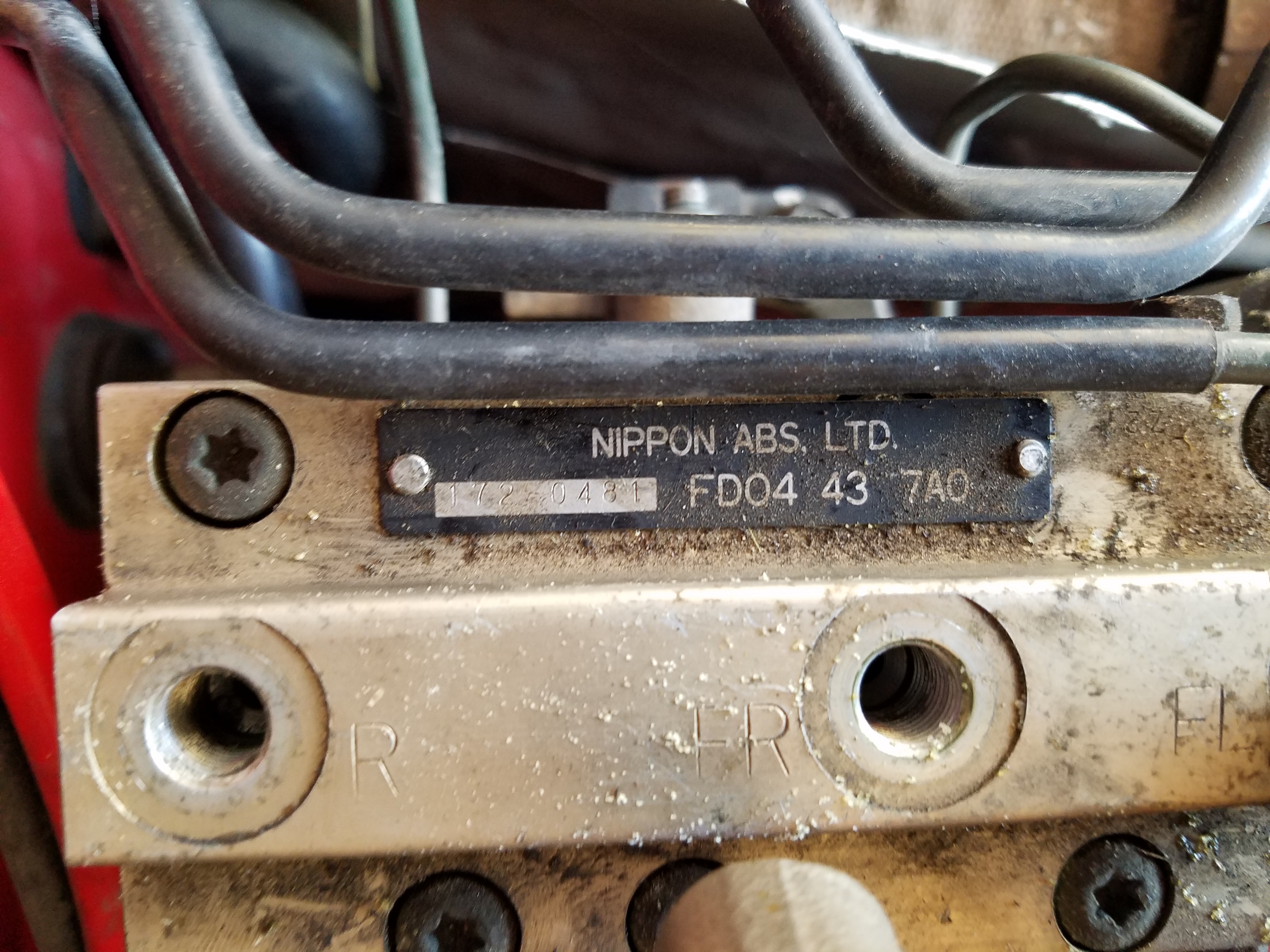

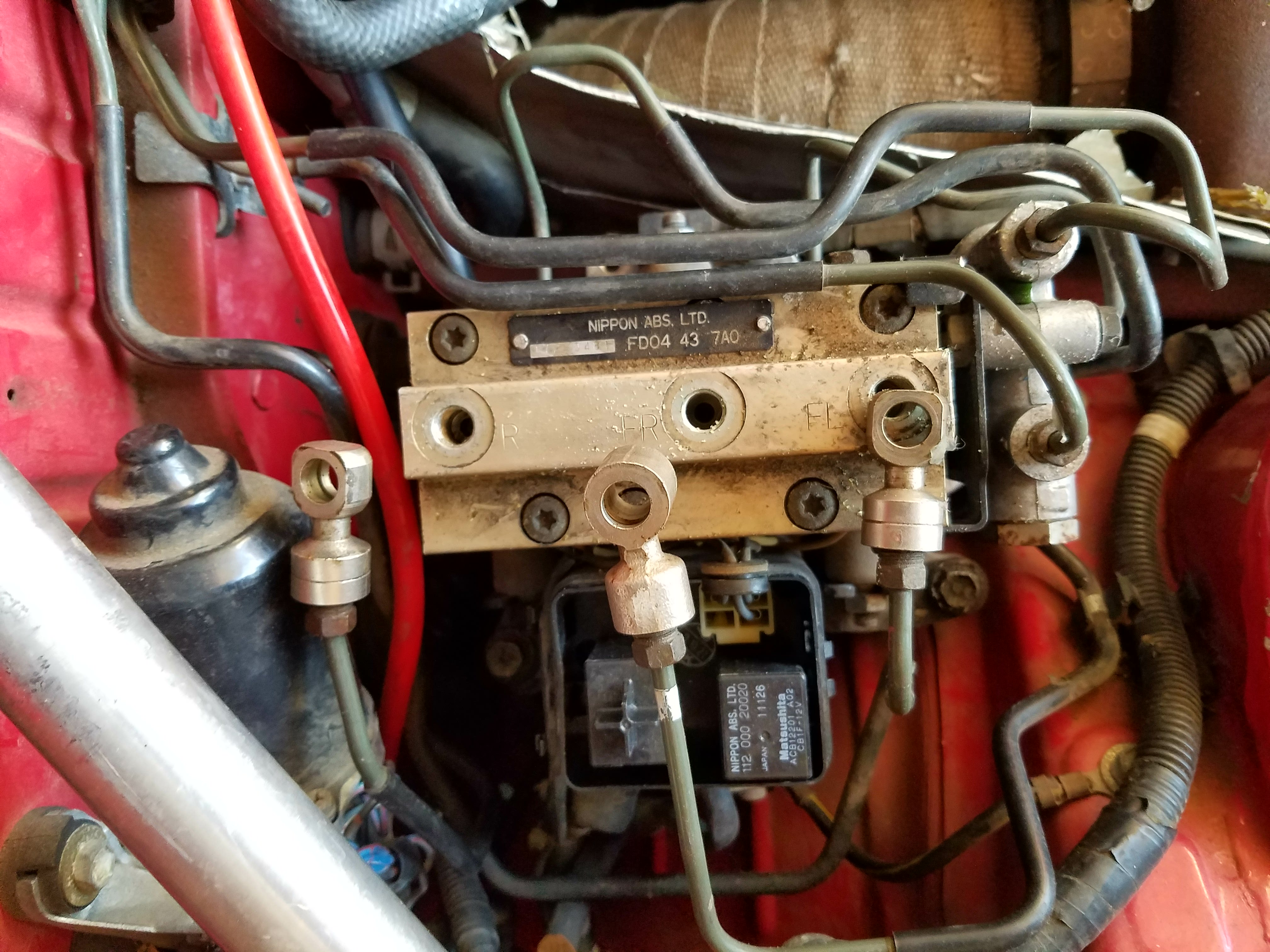

Hey guys I've got a 1993 RX-7 and finally trying to get it back on the road and fix a bunch of things the previous owner did to it. Apparently he attempted to do an ABS delete but all he did was disconnect the banjo bolts/lines from the main ABS unit. I don't have the banjo bolts for it and wanted to see if anyone knew the size so I could get some to reinstall it all. Just to clarify I'm talking about the unit that is under the hood right up against the firewall on the right hand side of the car. It's labelled as Nippon ABS LTD FD04 43 7A0 and has the lines for the FL, FR, and R ports. (see attached picture for clarification) If anyone can point me in the right direction I'd greatly appreciate it. Thanks in advance.

collectiv

iTrader: (1)

If no one gets back to you by tomorrow I will spin mine off and check the thread pitch. There loose now so it's no biggie.

airboarder

iTrader: (6)

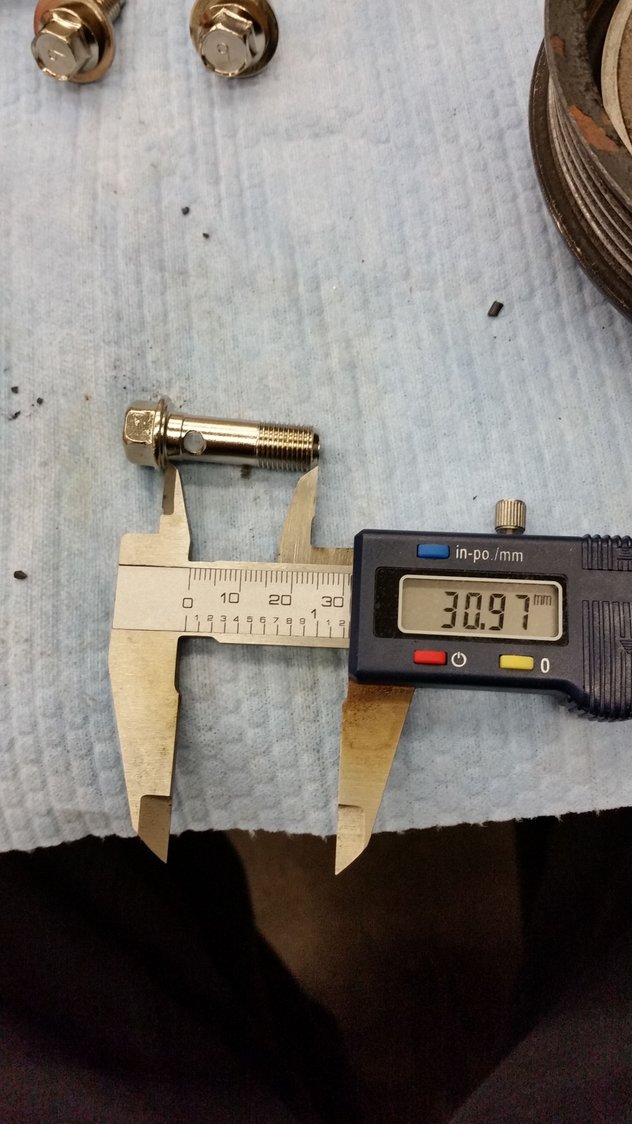

Thanks man I really appreciate it. If you could let me know length as well. If I remember right the FR one is a longer bolt than the other two.

collectiv

iTrader: (1)

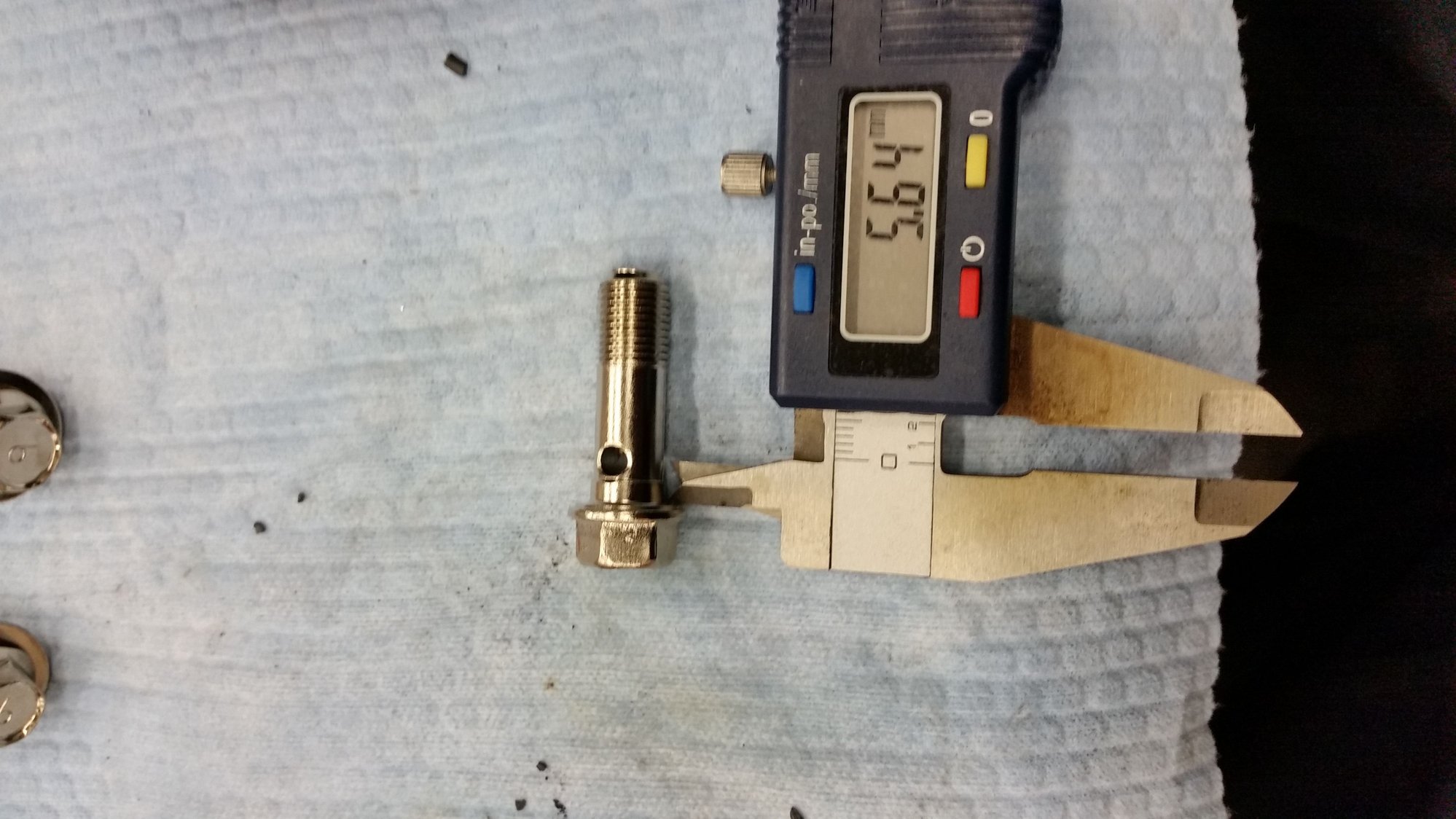

Both bolts have a washer size bevelled edge under the head

Drft_lock

iTrader: (2)

everything brake related in the fd is m10x1.0
