6-7 psi primary and no transition to secondary
10-20-10, 04:35 AM
#1
Yes it's twin turbo...
Thread Starter
iTrader: (4)
Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts
6-7 psi primary and no transition to secondary
Ok a little background info. I did a complete vac job in 08' after completing it and still having secondary boost issues I just dealt with it. Now 2 years later Ive dug back into the problem.
I pulled the rack out and tested each and every solenoid with only 4 of them passing the "pressure" testes as per Dave Geesman's testing procedure https://www.rx7club.com/3rd-generation-specific-1993-2002-16/how-test-your-solenoids-actuators-other-turbo-stuff-802060/. I reinstalled the rack with all new check valves from Dale Clark and she started up and idled perfectly which she wasn't doing before. So I feel confident I did something correct and take her for a spin. The boost is spotty only boosting after decelerating and then wot. So since I had brand new check valves I tested the pressure and vacuum chambers, both passed and had no leaking. After a day or two of reading now, I go back out determined that it is the check valves. So I test them and the two I tested, the pressure and vac chamber check valves, both are leaking... so I test my old ones and they are holding fine. Thinking I figured out the problem I take her for a spin once more. The only thing that changed is I am getting a consistent 6-7 psi on the primary. I switched the wastegate and pre control connectors and had the same result. after that run I pull a line off the pressure chamber and no "hissing" sound is heard, also I am not getting any boost during neutral revs... I tested my cca and it is working properley but after doing a wot run past 4500 rpms with no boost there is a strange "byew" sound just like Dale Clark explains in this post https://www.rx7club.com/showthread.p...ighlight=bheyw
So this is where Im at
-No Hissing noise from pressure tank
-only 6-7pis primary with no secondary and strange beyw noise
-no boost during neutral revving
-all solenoids tested and important boost solenoids passed all bench tests.
-check valves are tested and pointing in the correct direction
-Vac and pressure tanks hold 25+ inhg no leaking
-99 spec turbos so I believe they have the restrictor pills built in.
I tried to be as detailed as possible and yes I have been searching for the past week on different issues with no luck.
Any positive feedback is greatly appreciated!
I pulled the rack out and tested each and every solenoid with only 4 of them passing the "pressure" testes as per Dave Geesman's testing procedure https://www.rx7club.com/3rd-generation-specific-1993-2002-16/how-test-your-solenoids-actuators-other-turbo-stuff-802060/. I reinstalled the rack with all new check valves from Dale Clark and she started up and idled perfectly which she wasn't doing before. So I feel confident I did something correct and take her for a spin. The boost is spotty only boosting after decelerating and then wot. So since I had brand new check valves I tested the pressure and vacuum chambers, both passed and had no leaking. After a day or two of reading now, I go back out determined that it is the check valves. So I test them and the two I tested, the pressure and vac chamber check valves, both are leaking... so I test my old ones and they are holding fine. Thinking I figured out the problem I take her for a spin once more. The only thing that changed is I am getting a consistent 6-7 psi on the primary. I switched the wastegate and pre control connectors and had the same result. after that run I pull a line off the pressure chamber and no "hissing" sound is heard, also I am not getting any boost during neutral revs... I tested my cca and it is working properley but after doing a wot run past 4500 rpms with no boost there is a strange "byew" sound just like Dale Clark explains in this post https://www.rx7club.com/showthread.p...ighlight=bheyw
So this is where Im at
-No Hissing noise from pressure tank
-only 6-7pis primary with no secondary and strange beyw noise
-no boost during neutral revving
-all solenoids tested and important boost solenoids passed all bench tests.
-check valves are tested and pointing in the correct direction
-Vac and pressure tanks hold 25+ inhg no leaking
-99 spec turbos so I believe they have the restrictor pills built in.
I tried to be as detailed as possible and yes I have been searching for the past week on different issues with no luck.
Any positive feedback is greatly appreciated!
10-21-10, 06:31 PM
#3
Have you gone through the primary turbo troubleshooting procedure from the autosport site?
http://www.autosportracetech.com/RX-...erOverview.htm
What were the results?
Your secondary probably isn't spooling since the primary isn't generating enough boost.
http://www.autosportracetech.com/RX-...erOverview.htm
What were the results?
Your secondary probably isn't spooling since the primary isn't generating enough boost.
10-25-10, 01:54 AM
#4
Yes it's twin turbo...
Thread Starter
iTrader: (4)
Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts
The only thing I haven't checked yet, only because I thought it would be too simple of a fix is the intercooler hoses... I'll check them tomorrow. but would that have anything to do with the pressure chamber not releasing any air once I pulled a hose off it? Thanks
Trending Topics
10-25-10, 07:59 PM
#8
Yes it's twin turbo...
Thread Starter
iTrader: (4)
Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts
Ya no kidding! It would be who of any one to double check the new ones before installing them... Im going out now to check the hoses, I'll report back later.
10-25-10, 10:08 PM
#9
Yes it's twin turbo...
Thread Starter
iTrader: (4)
Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts
OK so I found a leak in one of the couplers
-Primary is perfect
-No Secondary transition
-Check valves have been re checked
-Pressure chamber does not hiss when unplugged
-charge control actuator is functioning properly at idle (ie the rod is pushed in)
-Vacuum at idle is 14 inhg
-Primary is perfect
-No Secondary transition
-Check valves have been re checked
-Pressure chamber does not hiss when unplugged
-charge control actuator is functioning properly at idle (ie the rod is pushed in)
-Vacuum at idle is 14 inhg
10-26-10, 07:10 PM
#12
Yes it's twin turbo...
Thread Starter
iTrader: (4)
Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts

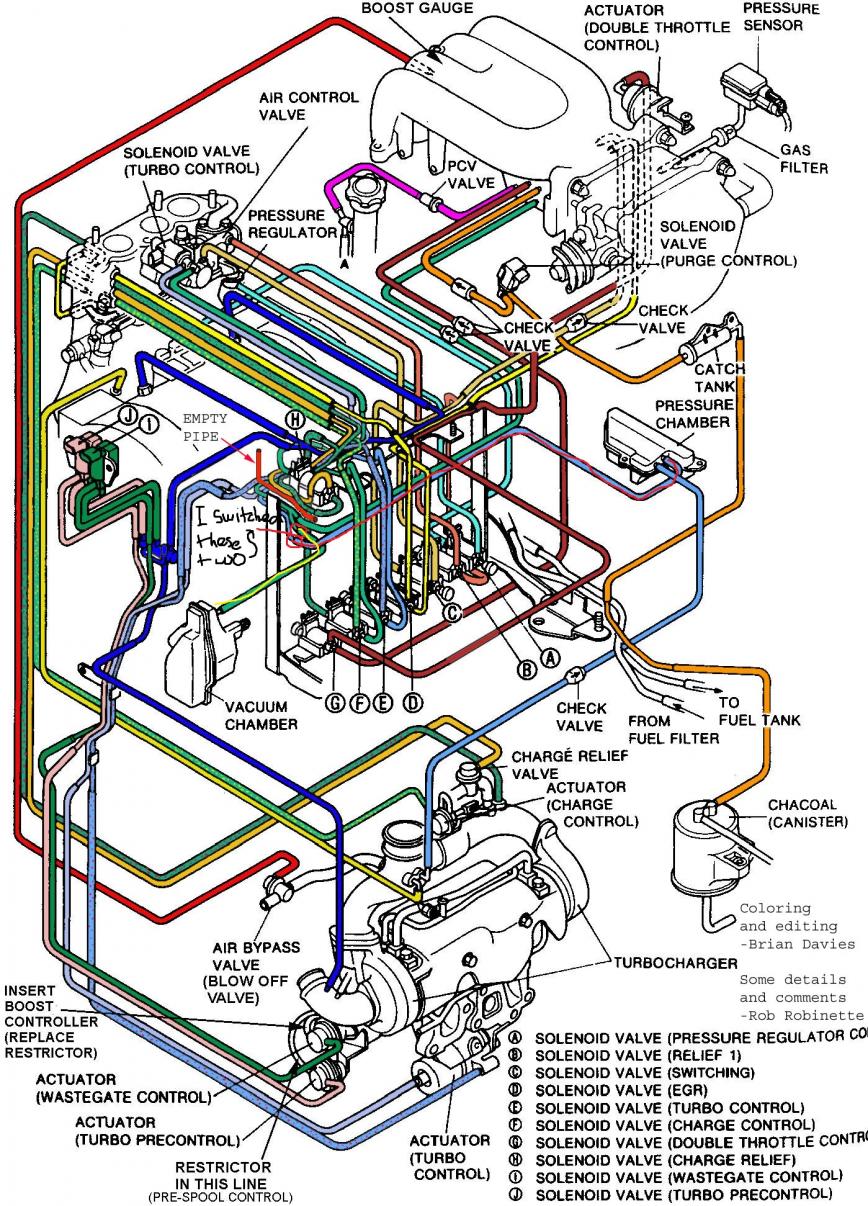

Ok update, just found that my vacuum chamber and pressure chamber hoses were switched, tricky bastards lol.
with that said my boost pattern as of 5 min ago is 11-7-14-8.... if that makes sense, spikes during the transition for a sec and drops to 8psi. my only Idea is that I used the silicone coupler that connected my secondary turbo to my intake to fix my cracked coupler from a few posts up. Im thinking that the turbo has no air restriction on the inlet side so it spikes. but like I said it drops down to 8 psi so Im not sure if thats the whole story... any insight?
with that said my boost pattern as of 5 min ago is 11-7-14-8.... if that makes sense, spikes during the transition for a sec and drops to 8psi. my only Idea is that I used the silicone coupler that connected my secondary turbo to my intake to fix my cracked coupler from a few posts up. Im thinking that the turbo has no air restriction on the inlet side so it spikes. but like I said it drops down to 8 psi so Im not sure if thats the whole story... any insight?
10-29-10, 04:24 PM
#14
Ok update, just found that my vacuum chamber and pressure chamber hoses were switched, tricky bastards lol.
with that said my boost pattern as of 5 min ago is 11-7-14-8.... if that makes sense, spikes during the transition for a sec and drops to 8psi. my only Idea is that I used the silicone coupler that connected my secondary turbo to my intake to fix my cracked coupler from a few posts up. Im thinking that the turbo has no air restriction on the inlet side so it spikes. but like I said it drops down to 8 psi so Im not sure if thats the whole story... any insight?
with that said my boost pattern as of 5 min ago is 11-7-14-8.... if that makes sense, spikes during the transition for a sec and drops to 8psi. my only Idea is that I used the silicone coupler that connected my secondary turbo to my intake to fix my cracked coupler from a few posts up. Im thinking that the turbo has no air restriction on the inlet side so it spikes. but like I said it drops down to 8 psi so Im not sure if thats the whole story... any insight?
I have exactly the problem. I did a lot of search and replace a few things like duty valve among other stuff but still no luck. secondary never come on.
and my problem is after I upgrade to 99spec turbo.

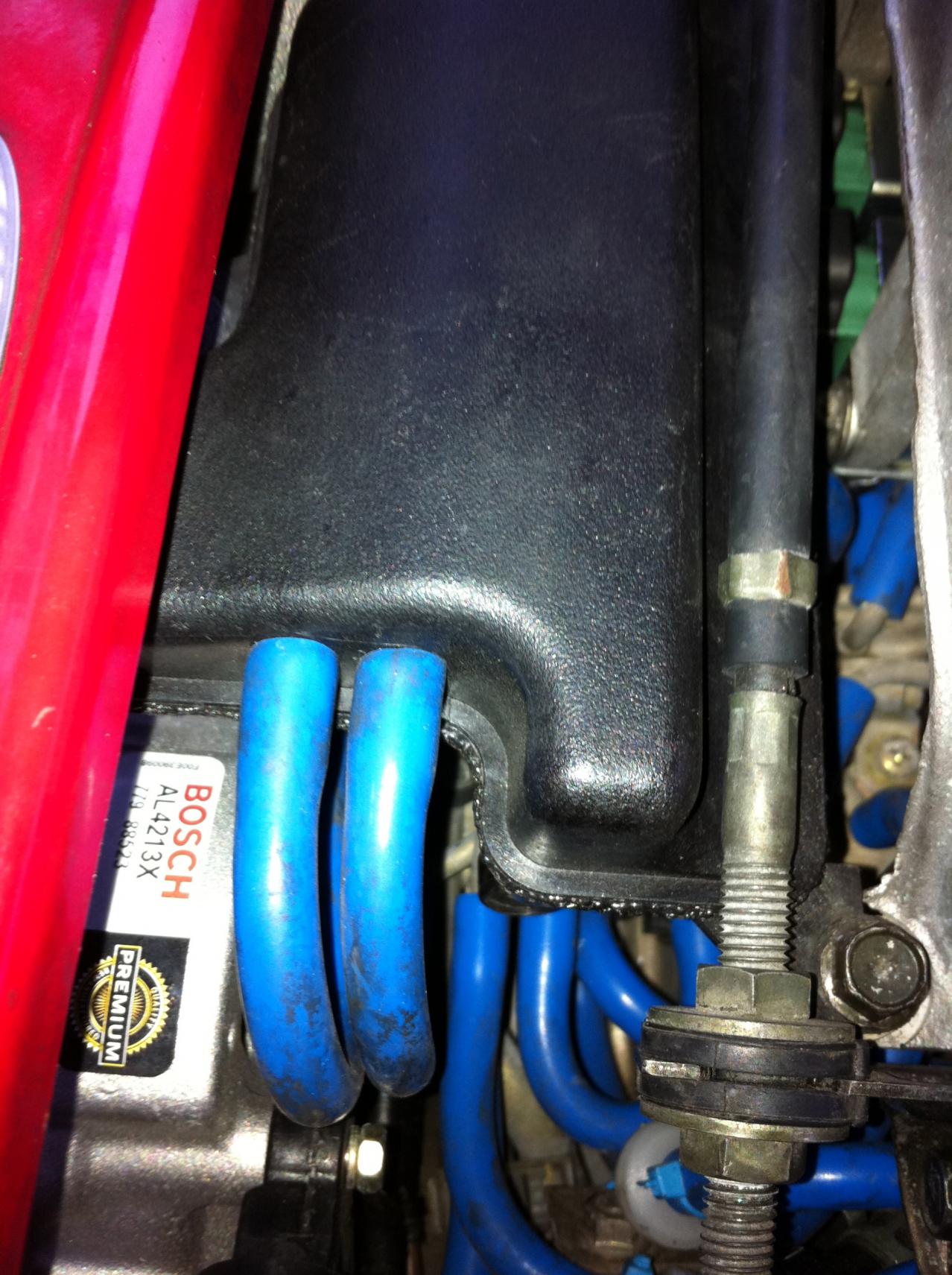

so you're saying these 2 lines were switched? (please see pictures)
is it safe to switch them. I want to try my luck if it is the case for me too.
thanks
10-30-10, 02:20 PM
#17
Yes it's twin turbo...
Thread Starter
iTrader: (4)
Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts
If your lucky, you will have the same problem, since its an easy fix. the tale tell sign is that when you turn your car off, and pull a line coming off the pressure chamber, it should hiss, if it doesnt you either have bad check valves or the two lines I circled are switched
10-31-10, 12:02 AM
#18
Yes it's twin turbo...
Thread Starter
iTrader: (4)
Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts
Its done! totally fixed now!!!!!!!!!!!!!!!! Im so stoked, I bought two hallmans, and set it up like damian, but I had to drill out my restrictor pills because they are built into the 99 turbos. I feel like rebuilding the engine would be an easier task haha
11-07-10, 11:46 AM
#23
If your lucky, you will have the same problem, since its an easy fix. the tale tell sign is that when you turn your car off, and pull a line coming off the pressure chamber, it should hiss, if it doesnt you either have bad check valves or the two lines I circled are switched
my problem is on 1st & 2nd gear I don't have secondary boost. after reach 4500rpm, boost drops and goes flat until redline. but I test and test on 3rd, 4th gear again and again, I do have boost after 4500rpm. eh... too scary to test on 5th gear but I assume it should be fine.
