3.73 Ring & Pinion gears for FD's
#51
Full Member
iTrader: (17)
Maybe the bushing would be thin enough that the case depth would be deep enough for it to be through hardened easily.
Interesting point, are you saying to swap the bushing to a new pinion for a rebuild? I figured it would need to be replaced with the pinion.
I shot them an email but no response yet.
Interesting point, are you saying to swap the bushing to a new pinion for a rebuild? I figured it would need to be replaced with the pinion.
I shot them an email but no response yet.
#53
10000 RPM Lane
iTrader: (2)
Some additional details on differentials with the ~8” ring gear that may be suitable. You’ll need to confirm the ratio though as 3.909 was the most popular for some of these and the 3.727 ratio was less so. The only one I know for sure has 3.727 is the USDM B2600 2WD truck models. However some places consider it the same as the B2200 and that one has 3.909. The 4WD models have 4.30. I bought a NOS MPV differential for super cheap taking a chance and it has a 3.909 gear set. 3.727 was very rare for the MPV and likely not easily found.
.
I still haven’t done anything on a pinion sleeve yet though, but in needs to get done within the next several months. Someone was in contact with Carlos earlier this year and he supposedly has some, but never heard anything further on it. Sent a message to that person yesterday to see if he ever connected, but not holding my breath.
.
I still haven’t done anything on a pinion sleeve yet though, but in needs to get done within the next several months. Someone was in contact with Carlos earlier this year and he supposedly has some, but never heard anything further on it. Sent a message to that person yesterday to see if he ever connected, but not holding my breath.
Last edited by TeamRX8; 10-31-22 at 11:43 AM.
#55
10000 RPM Lane
iTrader: (2)
he no longer does rotary stuff and the Miatas FC etc use the smaller R&P gearset.
I pulled that list off an MX5 Miata pdf that somebody has online, but it matches everything else I’ve found and is a nice summary.
it’s all online really, it just takes some time and tenacity to pull it together, but eventually is likely to fade away over time. Hopefully it will help having it here.
.
I pulled that list off an MX5 Miata pdf that somebody has online, but it matches everything else I’ve found and is a nice summary.
it’s all online really, it just takes some time and tenacity to pull it together, but eventually is likely to fade away over time. Hopefully it will help having it here.
.
#57
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
he no longer does rotary stuff and the Miatas FC etc use the smaller R&P gearset.
I pulled that list off an MX5 Miata pdf that somebody has online, but it matches everything else I’ve found and is a nice summary.
it’s all online really, it just takes some time and tenacity to pull it together, but eventually is likely to fade away over time. Hopefully it will help having it here.
.
I pulled that list off an MX5 Miata pdf that somebody has online, but it matches everything else I’ve found and is a nice summary.
it’s all online really, it just takes some time and tenacity to pull it together, but eventually is likely to fade away over time. Hopefully it will help having it here.
.
#59
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
#60
10000 RPM Lane
iTrader: (2)
is it really going to be this simple? 🤔
https://www.mcmaster.com/product/96990A490
I need to double-check the bearing width against the length, but there’s a custom option as well though for tuning the ID, OD, and length as needed
https://www.mcmaster.com/product/8486A901
Rockwell C61 hardness
.
https://www.mcmaster.com/product/96990A490
I need to double-check the bearing width against the length, but there’s a custom option as well though for tuning the ID, OD, and length as needed
https://www.mcmaster.com/product/8486A901
Rockwell C61 hardness
.
Last edited by TeamRX8; 01-26-23 at 09:31 AM.
The following users liked this post:
j9fd3s (01-26-23)
#61
10000 RPM Lane
iTrader: (2)
finally made some measurements today
4.777 RX8 Pinion gear-end bearing surface OD measured 40.75mm (FD3 is same)
3.727 B2600 Pinion gear-end bearing surface OD measured 30.78mm (-9.97mm)
I’ll need to go refresh myself on press-fit clearance/tolerances before establishing the correct ID/OD dimensions and ordering the spacer bushing. .

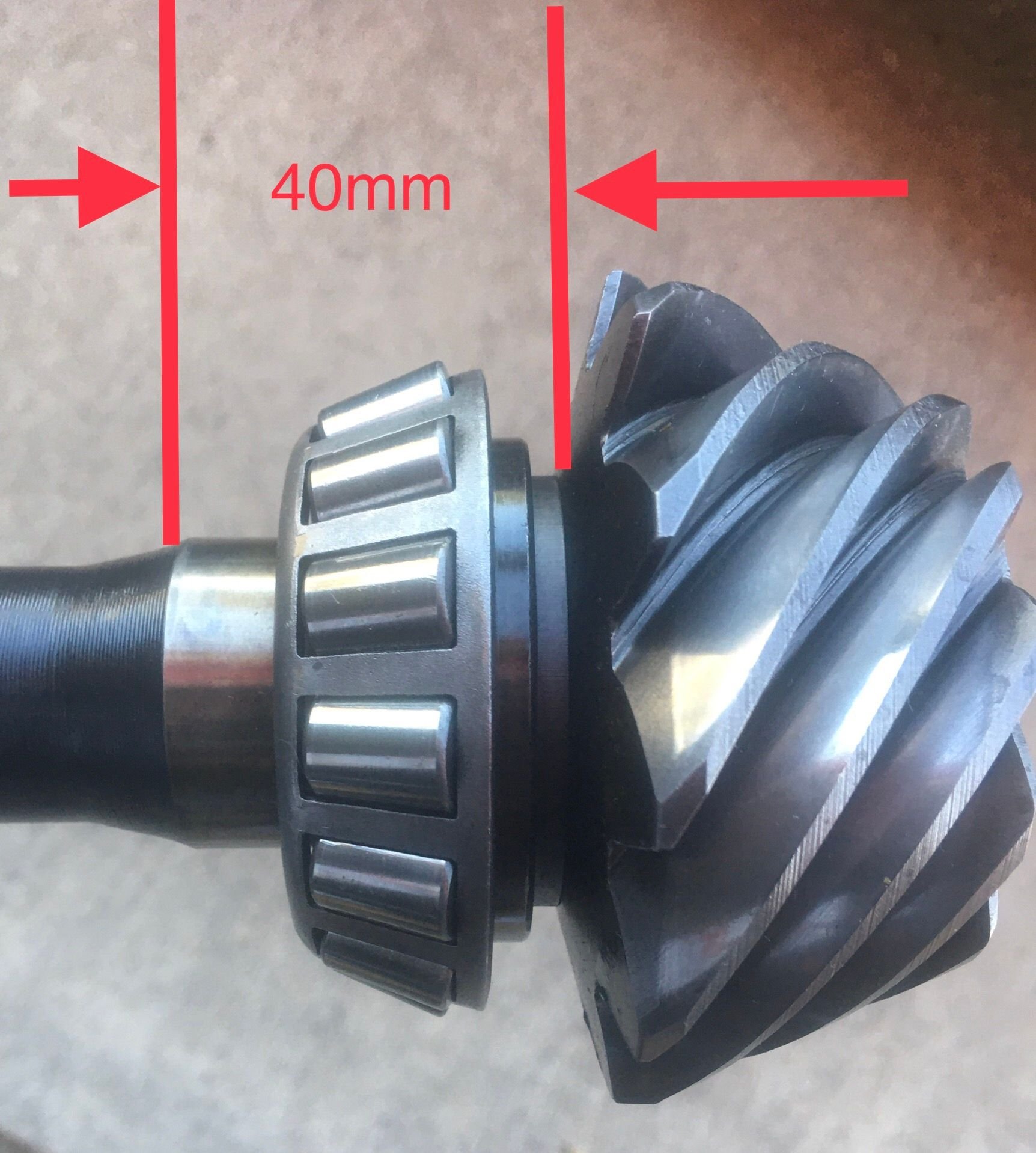

For determining the spacer bushing length; from the back face of the pinion gear-head to the far end of the bearing machined mounting surface is ~40mm long. The positioning shim and bearing on the early 3.727 pinion is only ~30mm long from the back side of the pinion gear-head. The larger ID late model bearing is likely longer. So my suggestion is to go ahead and use a 40mm long bushing.
Comparison pics between the early year 3.727 R&P gears and late year 4.777 gears; 3.727 pinion gear is larger OD with thicker teeth, but the ring gear is thinner to compensate for the larger pinion gear OD:
.
.
.
4.777 RX8 Pinion gear-end bearing surface OD measured 40.75mm (FD3 is same)
3.727 B2600 Pinion gear-end bearing surface OD measured 30.78mm (-9.97mm)
I’ll need to go refresh myself on press-fit clearance/tolerances before establishing the correct ID/OD dimensions and ordering the spacer bushing. .
For determining the spacer bushing length; from the back face of the pinion gear-head to the far end of the bearing machined mounting surface is ~40mm long. The positioning shim and bearing on the early 3.727 pinion is only ~30mm long from the back side of the pinion gear-head. The larger ID late model bearing is likely longer. So my suggestion is to go ahead and use a 40mm long bushing.
Comparison pics between the early year 3.727 R&P gears and late year 4.777 gears; 3.727 pinion gear is larger OD with thicker teeth, but the ring gear is thinner to compensate for the larger pinion gear OD:
.
.
.
The following users liked this post:
j9fd3s (02-05-23)
#62
10000 RPM Lane
iTrader: (2)
I ordered a custom-sized bushing from McMaster-Carr over a week ago, but the website states it may take up to 6 weeks for it to ship.
Mike, I also took pics of most of my gearsets, but have two more to do still. I should be emailing that to you in the not too distant future.
.
Mike, I also took pics of most of my gearsets, but have two more to do still. I should be emailing that to you in the not too distant future.
.
The following users liked this post:
j9fd3s (02-14-23)
#63
10000 RPM Lane
iTrader: (2)
so I received word from McM-C that the bushing is pushed out to June due to the all too common material supply availability issue excuse these days.
I only put it that way because there seem to be others offering custom sizes without issue. It’s not unique material or complex machined forging; it’s roughly a 35mm ID x 40mm OD x 40mm long piece of commonly available high strength heat-treated steel.
Going to try a different approach then.
.
I only put it that way because there seem to be others offering custom sizes without issue. It’s not unique material or complex machined forging; it’s roughly a 35mm ID x 40mm OD x 40mm long piece of commonly available high strength heat-treated steel.
Going to try a different approach then.
.
#64
Junior Member
Join Date: Sep 2017
Location: Monterey, CA
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
Any new news on this?
Now that my HP levels can support it, I'd like to move to longer gearing, especially since I'm running the lower ratio 5th gear in a JDM transmission.
Now that my HP levels can support it, I'd like to move to longer gearing, especially since I'm running the lower ratio 5th gear in a JDM transmission.
#65
10000 RPM Lane
iTrader: (2)
I suppose it might be worth a try to see if there’s any interest in some taller rear gear ratios:
11p/41r = 3.727 **Mazda 1980s-90s ratio USDM 929-MPV-B2600i 2WD
11p/40r = 3.636 **never offered in the 8” Mazda P diff that I’m aware of, just a possible option
12p/43r = 3.583 **Mazda 1986 EUDM 929
initial inquiry requires qty. (100) minimum per ratio, so looking for lower volume source to weigh out cost vs qty
.
11p/41r = 3.727 **Mazda 1980s-90s ratio USDM 929-MPV-B2600i 2WD
11p/40r = 3.636 **never offered in the 8” Mazda P diff that I’m aware of, just a possible option
12p/43r = 3.583 **Mazda 1986 EUDM 929
initial inquiry requires qty. (100) minimum per ratio, so looking for lower volume source to weigh out cost vs qty
.
Last edited by TeamRX8; 02-01-24 at 01:48 PM.
#66
Facilitator of Disorder
iTrader: (4)
Join Date: Dec 2020
Location: Allentown PA/ Three Mile Island
Posts: 277
Received 151 Likes
on
95 Posts
I may be interested in the 3.636 and/or the 3.583. Trying to avoid having to do an 8.8 conversion when I get around to doing my dog ring 4 speed conversion a couple years down the road. (or whenever my OE box has had enough)
Perhaps it may be beneficial to advertise this to the rx-7 facebook group for greater exposure?
Keep us posted!
Perhaps it may be beneficial to advertise this to the rx-7 facebook group for greater exposure?
Keep us posted!
#67
Junior Member
Join Date: Sep 2017
Location: Monterey, CA
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
I suppose it might be worth a try to see if there’s any interest in some taller rear gear ratios:
11p/41r = 3.727 **Mazda 1980s-90s ratio USDM 929-MPV-B2600i 2WD
11p/40r = 3.636 **never offered in the 8” Mazda P diff that I’m aware of, just a possible option
12p/43r = 3.583 **Mazda 1986 EUDM 929
initial inquiry requires qty. (100) minimum per ratio, so looking for lower volume source to weigh out cost vs qty
.
11p/41r = 3.727 **Mazda 1980s-90s ratio USDM 929-MPV-B2600i 2WD
11p/40r = 3.636 **never offered in the 8” Mazda P diff that I’m aware of, just a possible option
12p/43r = 3.583 **Mazda 1986 EUDM 929
initial inquiry requires qty. (100) minimum per ratio, so looking for lower volume source to weigh out cost vs qty
.
