I own a 2000 FD3S, and I am replacing the Vacuum Unit (Solenoid Rack or Manifold Solenoid)

I need a clear diagram on the hoses and where they go in the car.

This is a series 8 FD, and this replaces the rats nest found in older FDs.

The pictures I found dont show all the hosing clearly.

Cost me $350 at the Dealer here in Tokyo.

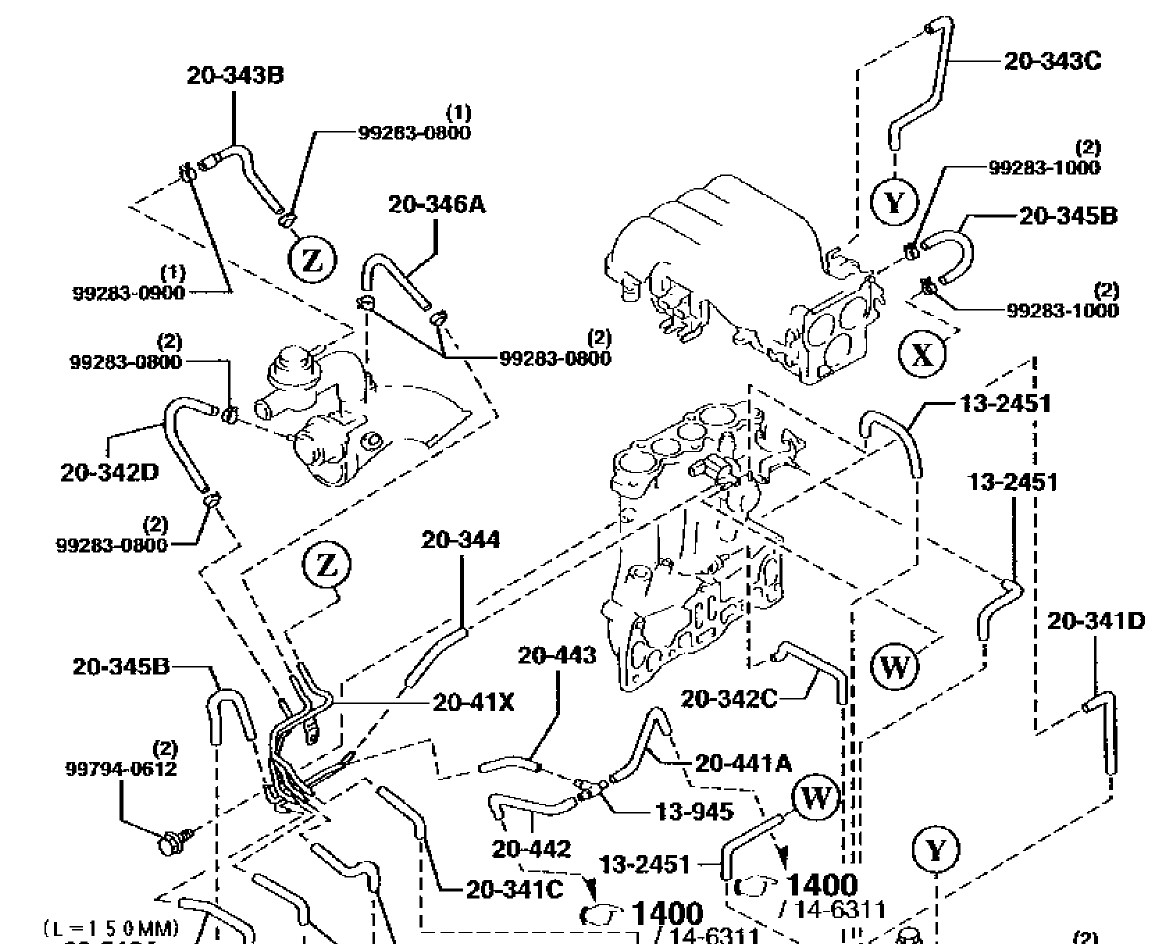

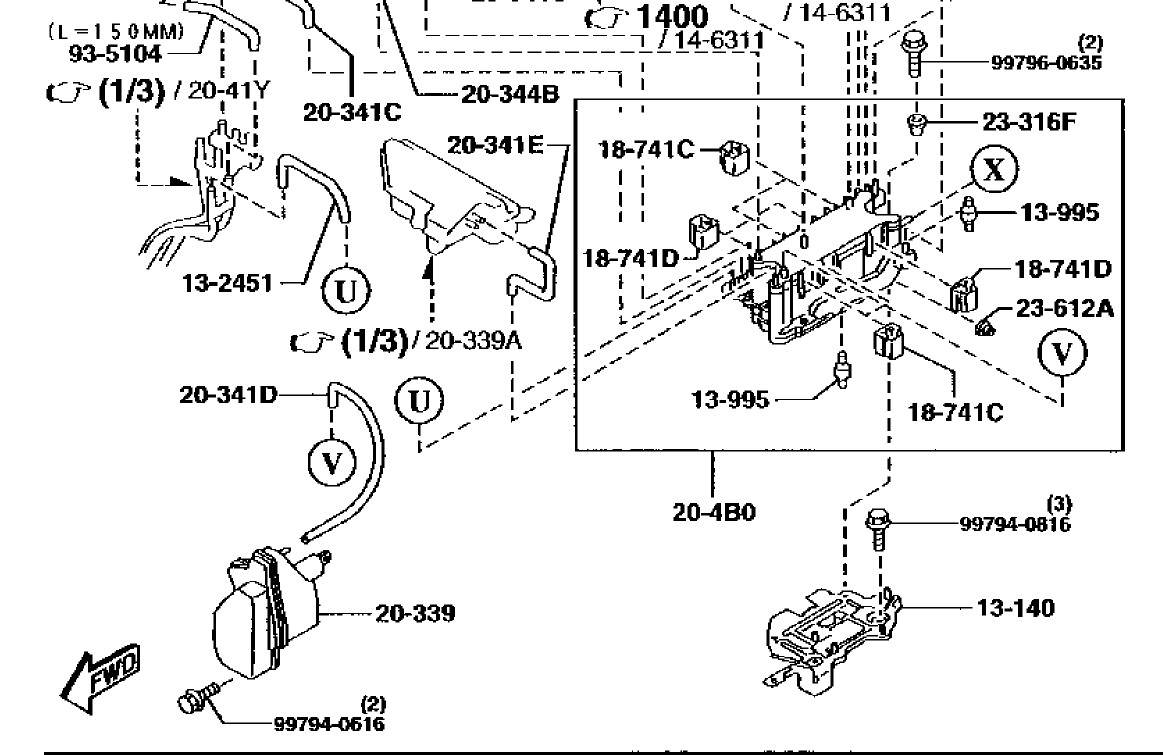

I am borrowing these pics from http://fdowners.com/showthread.php?t=31

<br><br>



There you go:



If you're replacing it, can't you mark the hoses as they come off and replace them the same way?

Dave



https://www.rx7club.com/3rd-generation-specific-1993-2002-16/s7-s8-wireing-diagam-792369/



Excellent idea

However.......I already replaced it.

I rushed the job.....and did not take pictures or mark the hoses like a Jack ***. I thought I could remember where they all went. Actually I was doing good......but the garage closed early.....and the next morning....well you get the picture. The car is running good...........full boost now.....however......its warms up really rough while idling.
