My ac worked perfectly before I put new engine in. I changed all o rings and got everything back together ready to recharge 134a.
I went from oem ecu to haltech 2500 elite plug n play.
went i hit ac button fans go on.but no ac compressor .there a plug from ac compressor not plugged in but has a wire going to loom from ac. But plug itself goes no where were.
what can I look for to get this compressor powered.i need ac.ill upload picture
Last edited by Beach3um; May 17, 2026 at 01:31 PM.
Not sure about JDM, but on USDM the A/C clutch wire is black/red (although same connector as you're showing). The mating connector is on (E) harness (battery to starter) near the strut tower. you can try looking for mating connector near that area, assuming it didn't break and fell off.
Not sure about JDM, but on USDM the A/C clutch wire is black/red (although same connector as you're showing). The mating connector is on (E) harness (battery to starter) near the strut tower. you can try looking for mating connector near that area, assuming it didn't break and fell off.
what if battery was moved to hatch. There's a single wire jerry rigged that goes through firewall loom.
Normally battery relocation should not affect it.

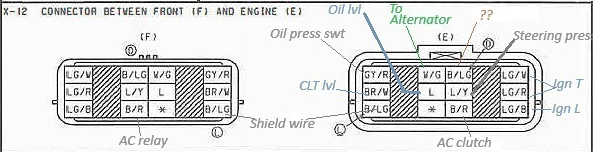

A/C clutch wire comes from X12 connector (big gray one), you can trace it and see if you can find an unplugged single connector.
