Wiring Question-Appreciate Help
#1
Wiring Question-Appreciate Help
Hi correct me if im wrong this is my first top to bottom resto-mod and am in the learning process. I can take crtisism

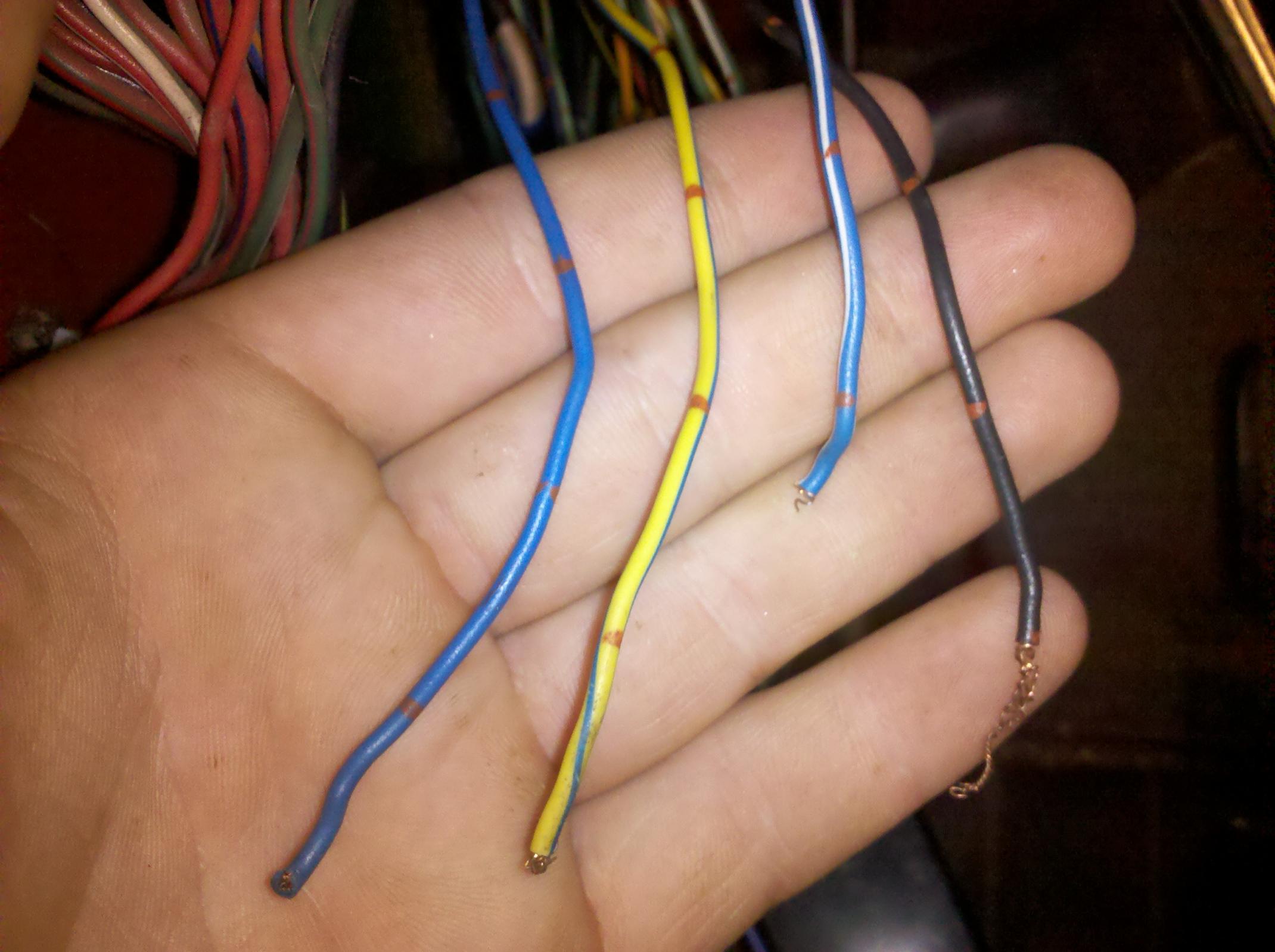

Theres a plug connecting to the what i beleive is the body harness or whatever is right next to the interior fuse box and some of the wires are pulled out. (P.O. abused and made a mess for me)
I referred to the fsm provided in the faq section but some of the wires on the plug are colored different while the rest seem to match up perfectly. So im a little confused.
Attached are pics of what im talking about
Any help will be much appreciated.
Thanks
Devin
Theres a plug connecting to the what i beleive is the body harness or whatever is right next to the interior fuse box and some of the wires are pulled out. (P.O. abused and made a mess for me)
I referred to the fsm provided in the faq section but some of the wires on the plug are colored different while the rest seem to match up perfectly. So im a little confused.
Attached are pics of what im talking about
Any help will be much appreciated.
Thanks
Devin
#2
Moderator
iTrader: (1)

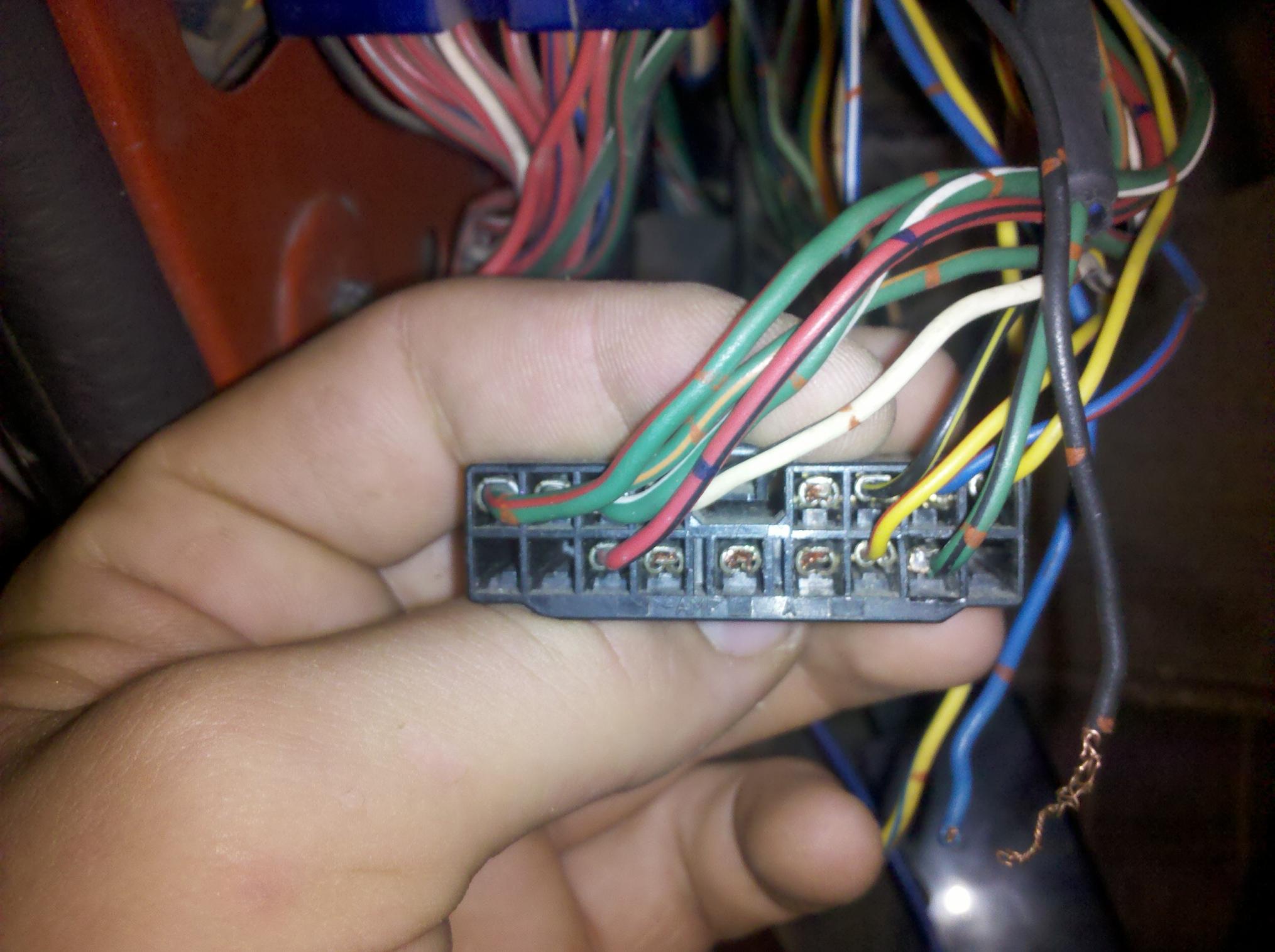

This plug is F-04 which connects to the CPU. Looking at your pic on the bottom row on the left you have a Red/Black wire. To the right of this wire is supposed to be the home for the Blue wire. To the right of this Blue wire goes the Black wire. To the right of this Black wire and to the left of the Yellow/Red wire goes the Blue/White wire, and the Yellow/Blue wire goes on top of the Blue/White wire which will be in between the Black/Yellow wire and the blank spot on the top row.
