wiring j-spec s5 signals with s4

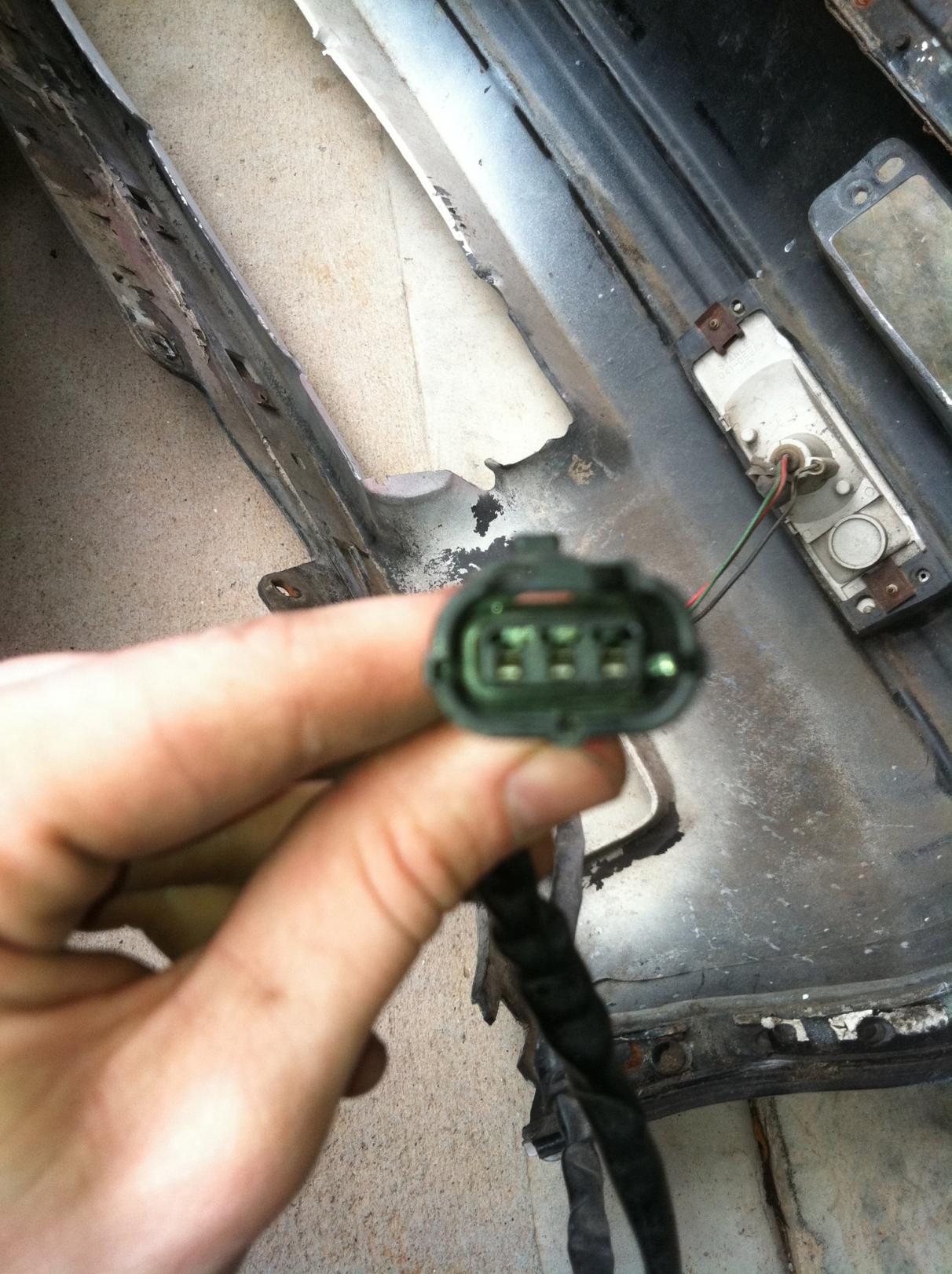

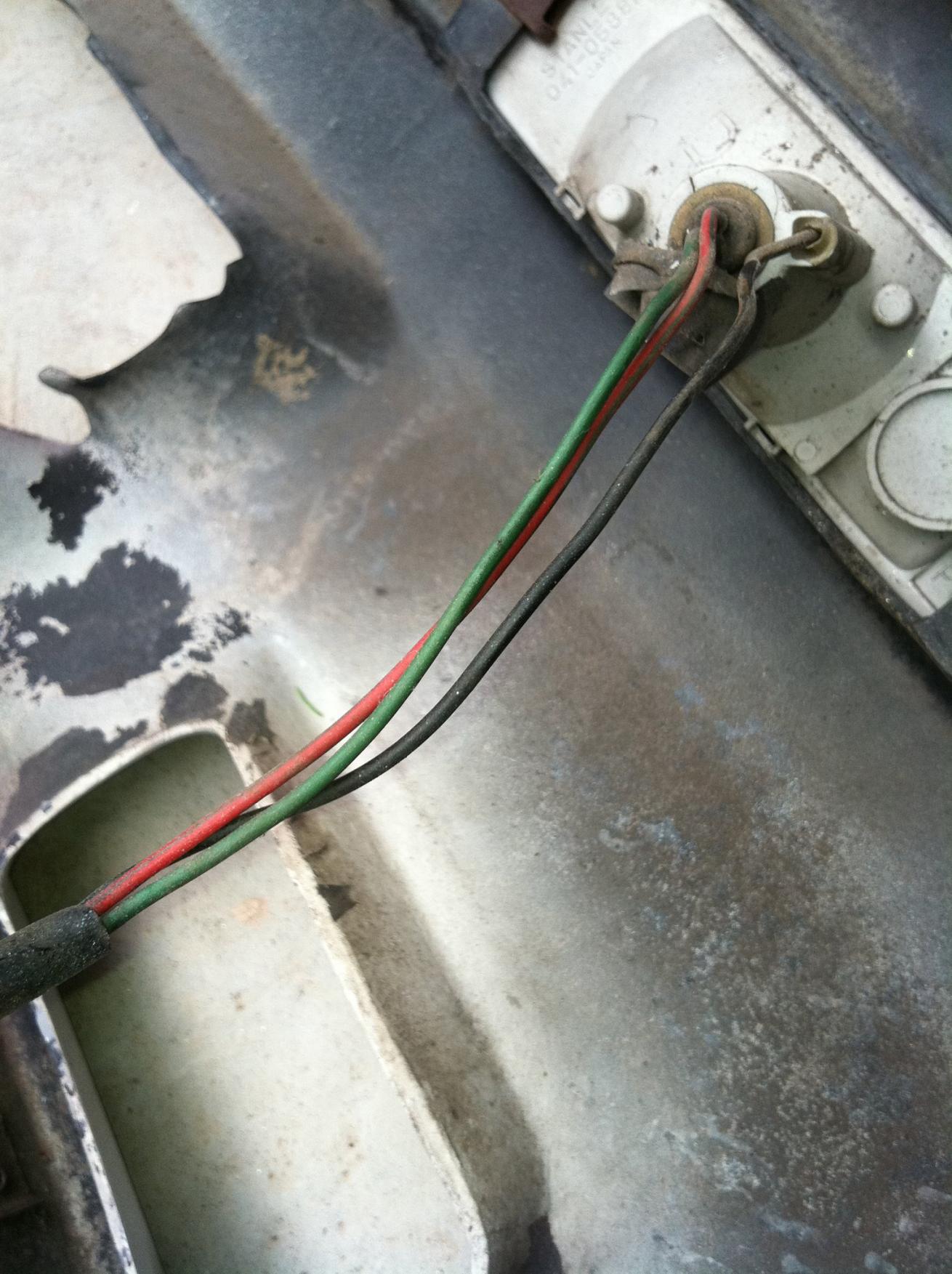

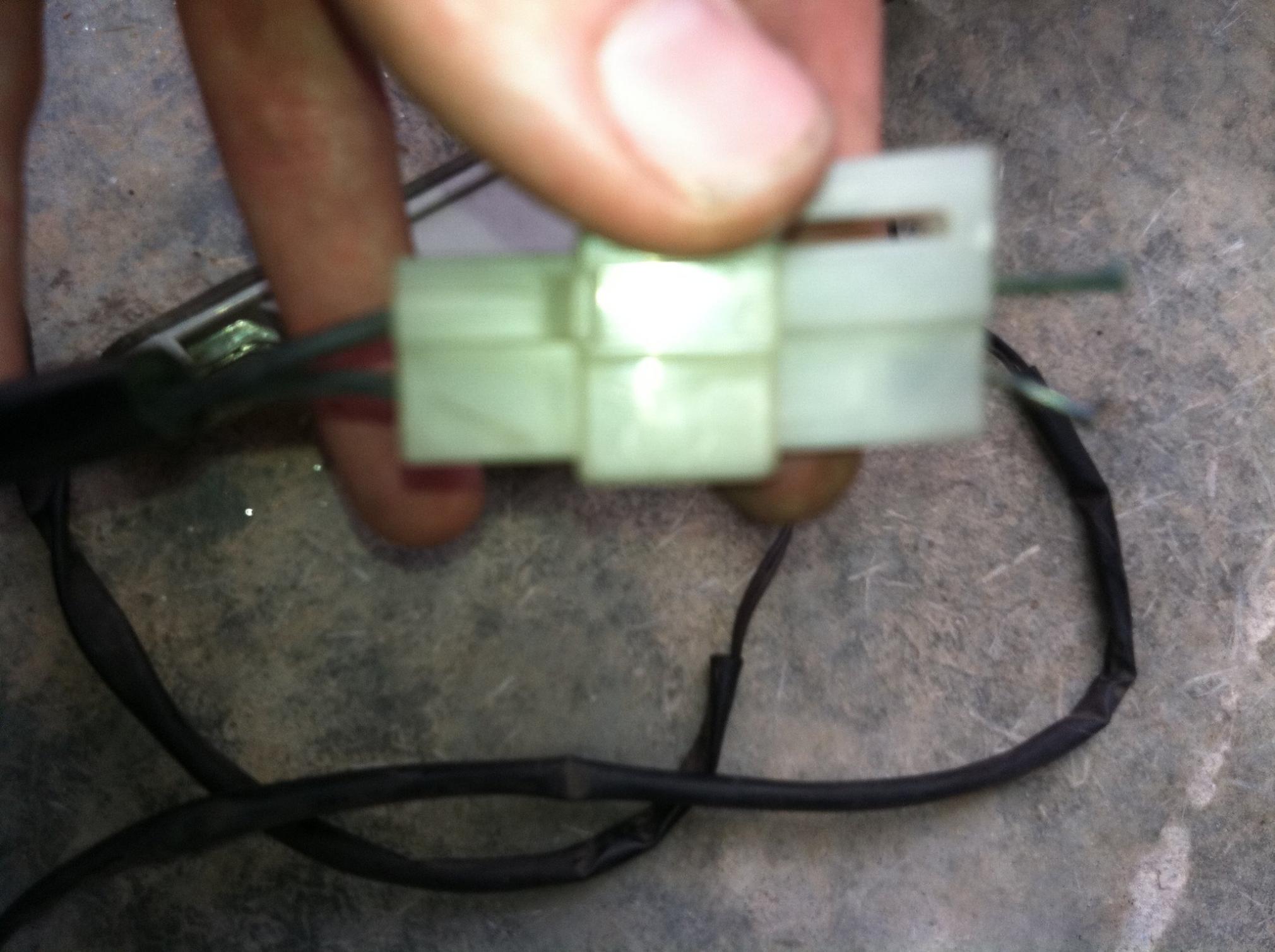

hey i just recently got a jspec s5 front bumper and i was wondering how in the hell do i wire these signals into my s4 theres 2 connectors with the jspecs as to one connector with the s4 .. heres pics below any help would be great i have no idea how to wire these bad boys in and id hate to have to try and put my s4s back in
#3
88 FC 13B NA
Thread Starter
Join Date: Jul 2010
Location: Snellville,GA
Posts: 394
Likes: 0
Received 0 Likes
on
0 Posts
nah theres one for a blue bulb and one for the amber signal...i tried using my s4 signals but they wot fit in the s5 bumper so i need to wire these up asap ..ive looked threw the forums and found nothing
#4
not a drifter
iTrader: (133)
the jdm turn signals are not running lights like the USDM are. they use the FTP's as running lights. so if you are set on using the JDM housings, they will not work the same as the USDM lights. the USDM lights have 3 wires, one is ground, one for the running lights, one as the blinker. so connect one of the two wires on your JDM housing to the black wire on the body harness (ground), and then connect the second wire to either the red or green. this is an easy way to find out which wire does what (i dont remember off the top of my head). my suggestion is use a USDM S5 housing with the JDM S5 lense.
