wire purpose

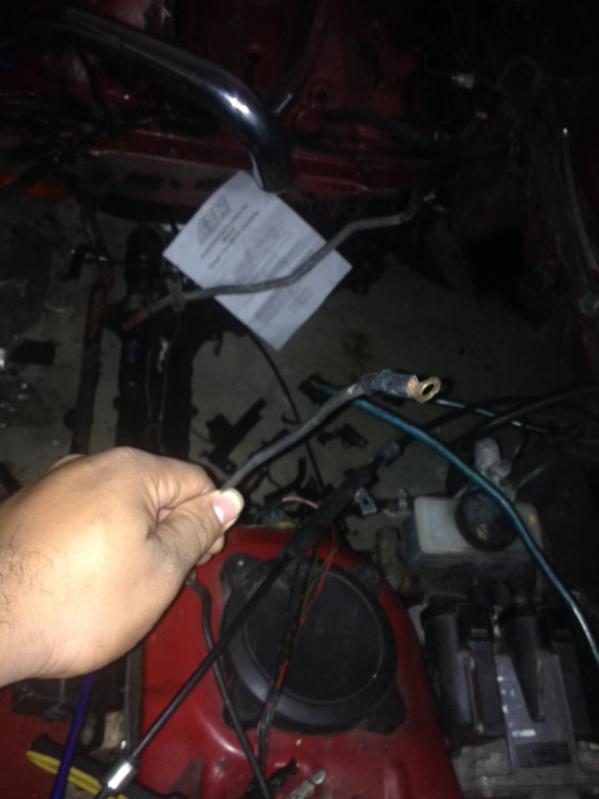

so i know the larger part of this wire goes to the altenator, but where does this go to?
Attached Thumbnails wire purpose-image-684616822.jpg
kidS4 is offline
Reply Like
Old 11-17-13, 10:08 PM
  #2
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
Engine bay fuse block?
misterstyx69 is offline
Reply Like
Old 11-17-13, 10:10 PM
  #3
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 12 Likes on 11 Posts
What is this?
satch is offline
Reply Like
Old 11-17-13, 10:14 PM
  #4
Full Member
Thread Starter

kidS4's Avatar

Join Date: May 2012
Location: douglasville ga
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
this particular wire has three ends, this one, one im positive for the altenator and another that has a plug that goes into the fuse block, so this wire bolts into the fuse block?
kidS4 is offline
Reply Like
Old 11-18-13, 07:31 AM
  #5
Senior Member

86rxNa's Avatar

Join Date: Jun 2011
Location: Md
Posts: 303
Received 2 Likes on 1 Post
You got any better pics?
86rxNa is offline
Reply Like
Old 11-18-13, 07:49 AM
  #6
Full Member
Thread Starter

kidS4's Avatar

Join Date: May 2012
Location: douglasville ga
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
have to take one when i get homw
kidS4 is offline
Reply Like
Old 11-18-13, 12:18 PM
  #7
Full Member
Thread Starter

kidS4's Avatar

Join Date: May 2012
Location: douglasville ga
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
wire does go to the fuse panel, actually causes the windows and such to work, thanks guys
