Wipers will not turn off and pulling the fuse does not shut them off either.
#1
Senior Member
Thread Starter
Join Date: Feb 2007
Location: Rock Hill, South Carolina?
Posts: 316
Likes: 0
Received 1 Like
on
1 Post
Wipers will not turn off and pulling the fuse does not shut them off either.
I pushed the wiper switch on my '91 vert down once to wipe them clean and then they would not stop wiping. If you set it to high it will go to high speed but on any other setting it will always stay on low speed.
To stop them I did the sensible thing; pull the 15 amp fuse. Mazda is not sensible though and this did not shut them off so I had to pull the dash apart and disconect the switch.
I would assume the switch is bad but I wanted to see if any on could confirm this. I searched the forum and found a couple post by people with the same problem but all they got was a bunch of people with wipers that did not work at certain speeds jumping in with what they did to fix they different problem. I will guess that people are going to do the same thing to this post. I would like to hear how this particular problem is fixed and I want to know why in the world the pulling the fuse won't shut the wipers off!
To stop them I did the sensible thing; pull the 15 amp fuse. Mazda is not sensible though and this did not shut them off so I had to pull the dash apart and disconect the switch.
I would assume the switch is bad but I wanted to see if any on could confirm this. I searched the forum and found a couple post by people with the same problem but all they got was a bunch of people with wipers that did not work at certain speeds jumping in with what they did to fix they different problem. I will guess that people are going to do the same thing to this post. I would like to hear how this particular problem is fixed and I want to know why in the world the pulling the fuse won't shut the wipers off!
#4
Lives on the Forum
iTrader: (7)
As for the problem, perhaps the relay that controls the low speed got stuck in the closed position. This is just speculation, though, so wait for someone like Icemark to chime in.
#5
needs a cheaper hobby
iTrader: (4)
Join Date: Dec 2004
Location: Morgantown WV
Posts: 781
Likes: 0
Received 0 Likes
on
0 Posts
hahaha i had that problem once. had to unplug them from under the hood. it's a switch. uuummmm be careful when replacing it though, mazda sucked at making anything out of plastic and making it last.
-j
-j
#6
Senior Member
Thread Starter
Join Date: Feb 2007
Location: Rock Hill, South Carolina?
Posts: 316
Likes: 0
Received 1 Like
on
1 Post
I did indeed pull the correct fuse according to the fuse box cover and the wipers did not stop. This means that Mazda marked the cover incorrectly, wired the car wrong, or there is some sort of short. But has anyone dealt with that?
I was playing with the switch yesterday and it does seem to be the relays. I think I can get the relays working but I may buy a new switch from Icemark since my Hazard lights don't work either and there is probally a lot of time involve in fixing those. When you drive an RX-7 , hazard lights are important.
I was playing with the switch yesterday and it does seem to be the relays. I think I can get the relays working but I may buy a new switch from Icemark since my Hazard lights don't work either and there is probally a lot of time involve in fixing those. When you drive an RX-7 , hazard lights are important.
#7
Former Moderator. RIP Icemark.
I pushed the wiper switch on my '91 vert down once to wipe them clean and then they would not stop wiping. If you set it to high it will go to high speed but on any other setting it will always stay on low speed.
To stop them I did the sensible thing; pull the 15 amp fuse. Mazda is not sensible though and this did not shut them off so I had to pull the dash apart and disconect the switch.
I would assume the switch is bad but I wanted to see if any on could confirm this. I searched the forum and found a couple post by people with the same problem but all they got was a bunch of people with wipers that did not work at certain speeds jumping in with what they did to fix they different problem. I will guess that people are going to do the same thing to this post. I would like to hear how this particular problem is fixed and I want to know why in the world the pulling the fuse won't shut the wipers off!
To stop them I did the sensible thing; pull the 15 amp fuse. Mazda is not sensible though and this did not shut them off so I had to pull the dash apart and disconect the switch.
I would assume the switch is bad but I wanted to see if any on could confirm this. I searched the forum and found a couple post by people with the same problem but all they got was a bunch of people with wipers that did not work at certain speeds jumping in with what they did to fix they different problem. I will guess that people are going to do the same thing to this post. I would like to hear how this particular problem is fixed and I want to know why in the world the pulling the fuse won't shut the wipers off!
Most of the time on wipers that are always on, you have either a bad motor (most of the time) or a bad switch. Occasionally you also get the hacked up car by someone that tried to put in a aftermarket ECU or remove the emissions and the shorted wires from that can cause the wipers to be always on.

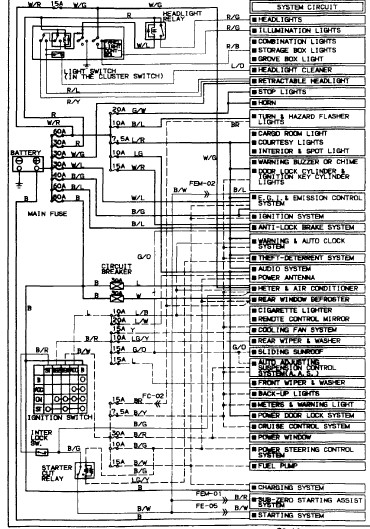

and you probably didn't pull the correct fuse. The 15 amp (blue) fuse for the wipers powers the switch and motor and neither the switch or the motor can work with it removed unless some one has hacked the wiring in the car. Sure you didn't pull the 10 amp wiper fuse?
Last edited by Icemark; 06-14-07 at 03:21 PM.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Feb 2007
Location: Rock Hill, South Carolina?
Posts: 316
Likes: 0
Received 1 Like
on
1 Post
why didn't you just unplug the motor... hell of a lot easier than taking apart the dash to get to the switch.
Most of the time on wipers that are always on, you have either a bad motor (most of the time) or a bad switch. Occasionally you also get the hacked up car by someone that tried to put in a aftermarket ECU or remove the emissions and the shorted wires from that can cause the wipers to be always on.
and you probably didn't pull the correct fuse. The 15 amp (blue) fuse for the wipers powers the switch and motor and neither the switch or the motor can work with it removed unless some one has hacked the wiring in the car. Sure you didn't pull the 10 amp wiper fuse?
Most of the time on wipers that are always on, you have either a bad motor (most of the time) or a bad switch. Occasionally you also get the hacked up car by someone that tried to put in a aftermarket ECU or remove the emissions and the shorted wires from that can cause the wipers to be always on.
and you probably didn't pull the correct fuse. The 15 amp (blue) fuse for the wipers powers the switch and motor and neither the switch or the motor can work with it removed unless some one has hacked the wiring in the car. Sure you didn't pull the 10 amp wiper fuse?
How much do you sell the switch for?
#9
Rotary Freak
iTrader: (1)
Its possible you have a short somewhere - usually, but not always caused by someone messing with the electrical system. Sometimes it's just wires that have cracked or rubbed thru because they aren't secured properly. Since pulling the fuse hasn't worked, try pulling other fuses - if you find, for example, that pulling the cigarette lighter fuse kills the wipers, that suggests a short with something on that circuit.
#10
Former Moderator. RIP Icemark.
I did pull the correct fuse, like I said. Blue 15 amp one space up and one space back from the front of the car. The car is completely stock. I need to fix the switch anyway because I can't be driving such a bad houpty that I need to go under the hood everytime it rains. The dash takes about 5-10 minutes to get apart especially since half the cheap plastic crap is broken anyway. The parts are broken before you even pull the screws out. I read about someone elses method of fixing these broken holes with JB Weld. Pretty redneck but just do not tell anybody and you will be OK.
How much do you sell the switch for?
How much do you sell the switch for?

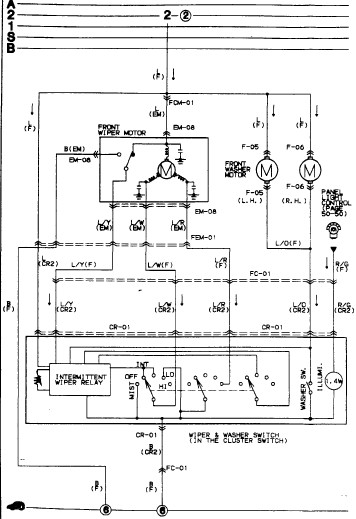

See there is only one power source for the wiper motor and the switch...
and it is the 15 amp wiper fuse. There is no other wires that power both other than that blue wire from the wiper fuse.
I suppose you could have water or something inside the switch shorting out, but I doubt it.
I rebuild your style switch for $50 + shipping (http://www.mazdamark.com/Rebuilding%20Your%20Parts.htm)
#11
Senior Member
Thread Starter
Join Date: Feb 2007
Location: Rock Hill, South Carolina?
Posts: 316
Likes: 0
Received 1 Like
on
1 Post
Icemark,
Will that price also cover fixing the Hazard light switch?
A few other quick questions if you can help me. Are the front floor mats the same for the convertible as the coupe? Did the convertible come with floor mats behind the seats? What did the original black floor mats look like for a '91? Black dragon has mats for $50 but I don't know how close they are to the original mats. Is there a place you know that sells replica mats for a good price?
Will that price also cover fixing the Hazard light switch?
A few other quick questions if you can help me. Are the front floor mats the same for the convertible as the coupe? Did the convertible come with floor mats behind the seats? What did the original black floor mats look like for a '91? Black dragon has mats for $50 but I don't know how close they are to the original mats. Is there a place you know that sells replica mats for a good price?
#12
Former Moderator. RIP Icemark.
they never fail... look at your CPU's flasher board
Yes
No
They matched the carpet
Are the front floor mats the same for the convertible as the coupe?
Did the convertible come with floor mats behind the seats?
What did the original black floor mats look like for a '91? Black dragon has mats for $50 but I don't know how close they are to the original mats. Is there a place you know that sells replica mats for a good price?
#14
Former Moderator. RIP Icemark.
The relays can clog up with carbon (then one or both of the turn signals stop working or work with a fast flash), or cold solder joints, or overheated transistors.
In you case it sounds like cold solder joints, if the turn signals work fine, but the hazards do not.
In you case it sounds like cold solder joints, if the turn signals work fine, but the hazards do not.
#15
Senior Member
Thread Starter
Join Date: Feb 2007
Location: Rock Hill, South Carolina?
Posts: 316
Likes: 0
Received 1 Like
on
1 Post
Both turn signals work. One relay had corrosion and I cleaned it off. I do not see these cold welds you are talking about. Cold welds are those aluminum rivets like in the interior light that make poor contact, right?
#16
Former Moderator. RIP Icemark.
cold solder joints... not welds... the joints fail where the plug meets the circuit board
