DASUPACAT1

Yeah ok it's a dumb ? Well I have a floor jack and stands. I want to do work to the car but don't know where I should jack up the car with the floor jack and place my jack stands safely. Anyone describe where on the underside to do this. Pics?

KNONFS

iTrader: (14)

Up front, Iuse the stock towing hooks for the floor jack, and and the stand jacks right under the torsion bar mounting points.

On the rear, I use the rear diff housing for the jack stand, and the rear frame for the jack stands.

What ever you do, DON'T use the cross member bars\frame!!! (or whatever is called, the ones that look like a mini chassis frame)

DASUPACAT1

I never noticed the towing hooks. Guess i'll have to take another look.

JMY952

This will answer your question.

Properly Jacking Car

It's found in the archives, and its useful.

KNONFS

iTrader: (14)

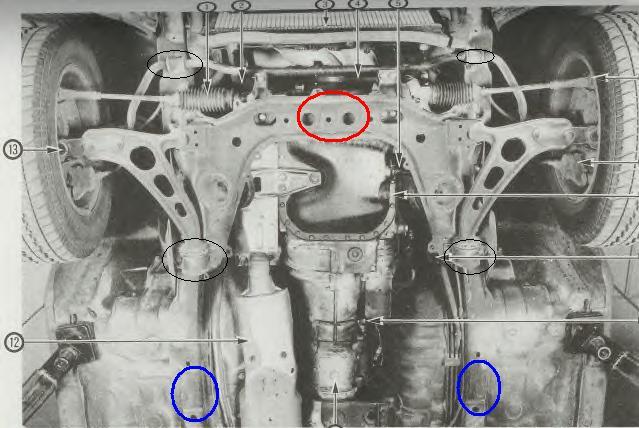

Blue ovals show where I don't like to use the jack stands, black circles show the locations I use for the jack stands.

NZConvertible

The chassis rails (the blue ovals) work fine. They're one of the strongest parts of the car, strong enough for Mazda to bolt a chunky reinforcing crossmember there on 'verts (you can see the empty bolt holes).

oakback

I jack on front tow hooks and the red circle, is the red circle a bad place? Rear jack, I use diff housing. Front jack stands, I use somewhere on the frame rails, there's a spot that looks like it has several layers of metal built up. Rear jack stands I place where the rear subframe mounts onto the car.

Are those good spots?

rotorforce

The black circles are where I put my jack stands. They fit perfect on that because its round.

Icemark

This is also covered in the FAQ for FC sticky thread... please read the FAQ for FC sticky thread before posting. It contains the answers to many commonly asked questions, such as the one this thread was started with.
