Where is the ground point for the warning cluster?
09-02-06, 07:46 AM
#1
Junior Member
Thread Starter
Join Date: Aug 2006
Location: South Wales
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Where is the ground point for the warning cluster?
I would like to know where is the ground point for the warning cluster because the clock is playing, sometimes on, sometimes off, sometimes dim??
09-02-06, 09:43 AM
#3
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
What he said. This problem is rarely due to grounding problems, but almost always cold solder joints in the idiot light cluster. Pull the cluster apart and resolder all large joints. While you are in a soldering mood, do the same to the CPU.
Soldering help:
http://www.aaroncake.net/electronics/solder.htm
Soldering help:
http://www.aaroncake.net/electronics/solder.htm
09-02-06, 11:22 AM
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

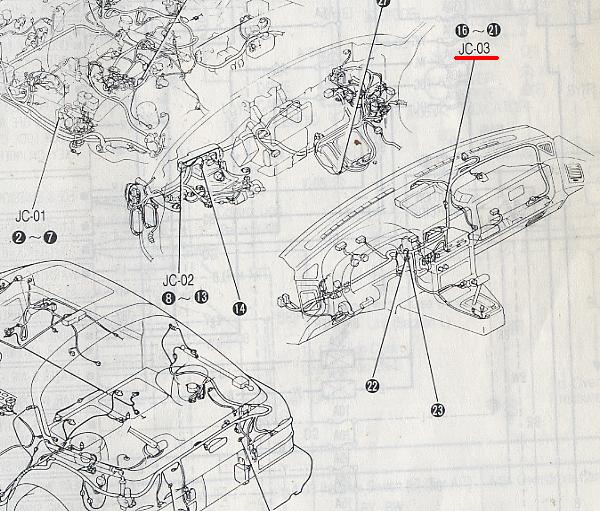

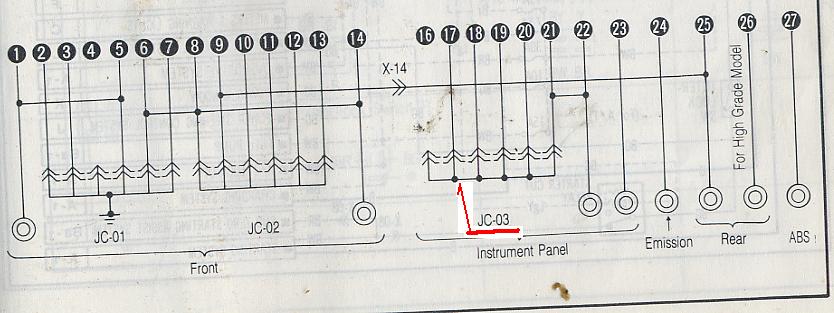

The gnd for it has a designation. It's called gnd 17 and is a part of a gnd cluster called JC-03. It's location is behing the dash as almost shown in the jpg that is attached.
And again, your problem most likely does not lie there.
And again, your problem most likely does not lie there.
