where are the fuses for a 1988 s4???
04-09-03, 05:44 AM
#2
Zoom Zoom Boom!
Join Date: Mar 2003
Location: San Francisco, CA
Posts: 2,312
Likes: 0
Received 0 Likes
on
0 Posts
Not sure if the radio clock is one of the fuses but check for the small black fuse box along the right side when you pop open the hood. Just open up the little latch and voila!
04-09-03, 05:52 AM
#3
Zoom Zoom Boom!
Join Date: Mar 2003
Location: San Francisco, CA
Posts: 2,312
Likes: 0
Received 0 Likes
on
0 Posts
Oh, I forgot to mention theres another fuse block around the dummy foot pedal. I'm not exactly sure about that one so hopefully somene else will reply...
04-09-03, 08:18 AM
#4
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts

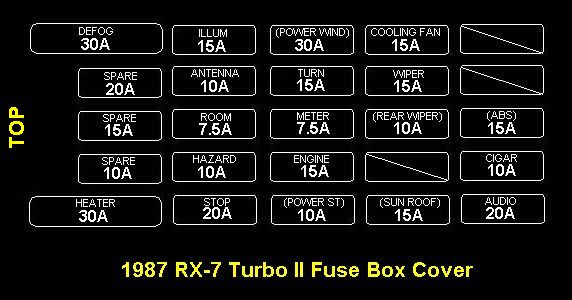

The fuse box you're looking for is in behind the plastic panel next to your right foot. Since yours will probably have Japanese text on the cover, you'll need this:
Good to see another Kiwi here.
Good to see another Kiwi here.
Last edited by NZConvertible; 04-09-03 at 08:25 AM.
04-18-03, 06:24 AM
#6
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
The S5 fuse box is in the same place. The two empty slots at the bottom of the fuse box in the diagram above are used for the fog lights and seatbelts on S5's.
