Where do I get a hose like this??
Where do I get a hose like this??

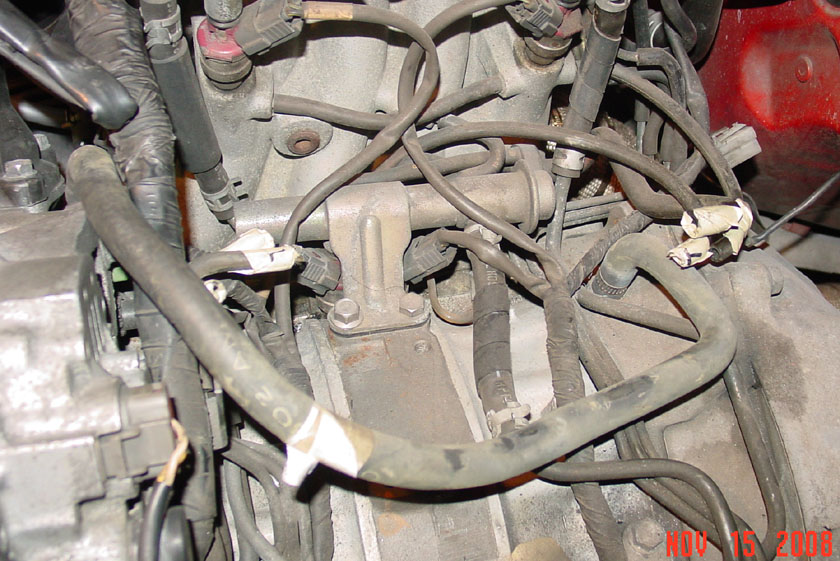

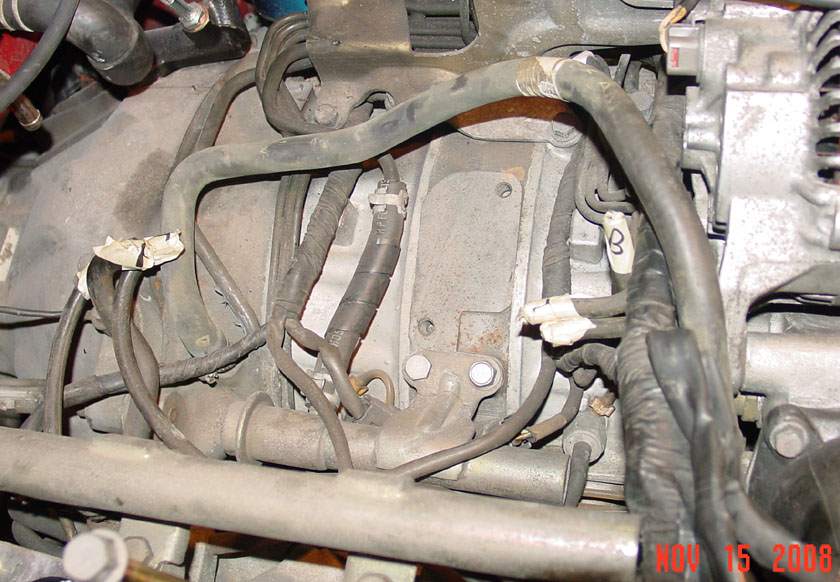

The non-standard hose in the attached images is obviously used to totally bypass the BAC valve and all the AWS stuff that has been removed from the throttle body in this car. If someone can identify the hose and provide a part number I would be very greatful. TIA
HAILERS
Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
That looks like the stock hose that runs from the back of the water pump housing to the front side of the BAC.

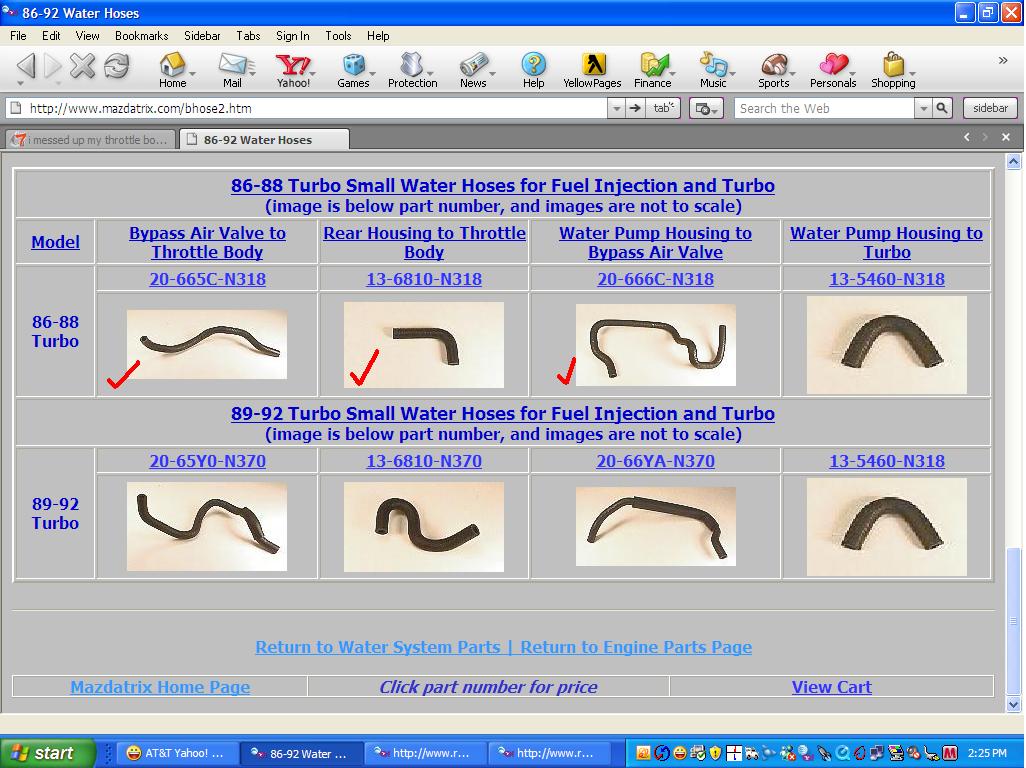

The other hose can be found on Mazdatrix's site. And a third hose is needed for the bottom of the throttle body to the nipple on the rear side housing.
The other hose can be found on Mazdatrix's site. And a third hose is needed for the bottom of the throttle body to the nipple on the rear side housing.
Last edited by HAILERS; Nov 15, 2008 at 02:28 PM.
Thanks HAILERS. I should have mentioned that this is an S5 Turbo. I think I see one in the bottom row that may fit the bill.
Unfortunately, the TB is so hacked up that I can't reconfigure the AWS. On of the TB nipples was actually sawed off.
Unfortunately, the TB is so hacked up that I can't reconfigure the AWS. On of the TB nipples was actually sawed off.
Last edited by Go48; Nov 15, 2008 at 05:26 PM.
