What is this resevoir bottle for?

I'm building a cold air intake that routes through the windshield washer fluid bottle hole. Luckily my model has the washer fluid bottle on the driver's side, so I don't have to deal with that.

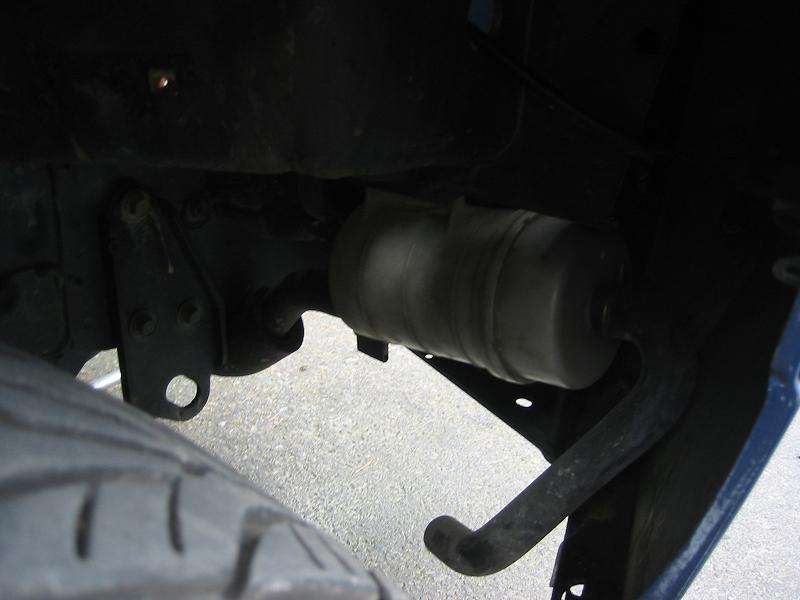

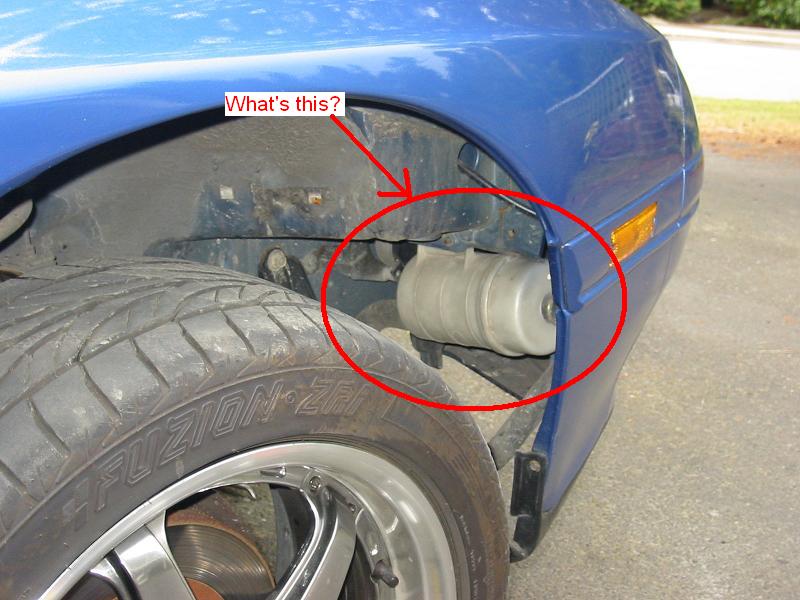

However, when I removed my wheel well cover, I found a strange looking bottle in place of where the washer fluid bottle would have been. I'm not sure what it's for or why it's there. It seems to route right to the engine and has an open end at the front of the car (I'm guessing to allow spillage of whatever's coming out).

My question is, do I need this bottle at all? It's getting in the way of my cone filter, and it seems like I could just remove the bottle and let the end connecting to the bottle leave open.

Does this bottle serve any purpose? Can I remove it and not affect any of my car's functions? This is an 89 N/A (GX Canadian model) if that helps.
Attached Thumbnails What is this resevoir bottle for?-129-2958_img.jpg   What is this resevoir bottle for?-129-2959_img.jpg
Reply
Old Sep 28, 2005 | 01:59 PM
  #2
1987RX7guy's Avatar
Eat Rice Don't Drive it.
Tenured Member: 20 Years
iTrader: (3)

Joined: Nov 2002
Posts: 12,752
Likes: 1
From: Laredo, Tx
That's the air pump's muffler.
Reply
Old Sep 28, 2005 | 02:32 PM
  #3
patman's Avatar
Resident Know-it-All
Tenured Member 15 Years
iTrader: (3)

Joined: Aug 2002
Posts: 3,099
Likes: 4
From: Richland, WA
you dont need the airpump muffler thingy. hell, you dont even need the airpump. take it outta there. you do need the plastic inner fender, tho.
Reply
Old Sep 28, 2005 | 02:32 PM
  #4
rotorbrain's Avatar
fart on a friends head!!!
Tenured Member 15 Years

Joined: Mar 2002
Posts: 4,104
Likes: 2
From: sheppard AFB, TX
i think slip_N_slide83 was referring to the liner. if you dont have the airpump, then theres no need for the air pump muffler. i dont see how theres a need for it anyways, just put a filter on it or something.
Reply
Old Sep 28, 2005 | 02:37 PM
  #5
nataku's Avatar
Thread Starter
Senior Member
Tenured Member 10 Years

Joined: Apr 2003
Posts: 278
Likes: 0
From: Vancouver, Canada
ahhh, I misread that...thanks for the clarification guys....alright, I'm taking the muffler out....will it be louder without a muffler? (Not that it really matters cause my exhaust is loud enough to drown any of that noise out, but I'm just curious)
Reply
Old Sep 28, 2005 | 08:32 PM
  #6
patman's Avatar
Resident Know-it-All
Tenured Member 15 Years
iTrader: (3)

Joined: Aug 2002
Posts: 3,099
Likes: 4
From: Richland, WA
yeah, it is louder, makes kind of a whirring noise. you cant hear it unless the hood is open tho.
Reply
Old Sep 29, 2005 | 01:16 AM
  #7
NZConvertible's Avatar
I'm a boost creep...
Tenured Member 05 Years

Joined: Jan 2002
Posts: 15,608
Likes: 8
From: Auckland, New Zealand
Originally Posted by nataku
...will it be louder without a muffler?
It's a muffler. What do you think?
Reply
Old Sep 29, 2005 | 01:26 AM
  #8
Madrx7racer's Avatar
Banned. I got OWNED!!!

Joined: Nov 2002
Posts: 312
Likes: 0
From: San Jose, CA
it goes whirrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr in my turbo under normal accel..........doesn't bug me. and there is no wayu for dirt to go in there because air comes OUT of that opening
Reply
Old Sep 29, 2005 | 10:16 AM
  #9
Aaron Cake's Avatar
Engine, Not Motor
Tenured Member: 20 Years
iTrader: (1)

Joined: Feb 2001
Posts: 29,798
Likes: 128
From: London, Ontario, Canada
Useless and incorrect replies deleted.

The black tube is the air silencer. It silences the air that is dumped from the ACV at certain times. Without it, the airpump can make odd wooshing and honking sounds. Of course, if you don't have your airpump and ACV, you don't need the air silencer.
