Weird electrical issue
#1
Weird electrical issue
As of 12:05 this morning my 89 RX7 GXL with TII swap runs. As of about 2:20 this morning it drives. Very happy, it has only taken 3 years to get to this point! Been in school and I have three kids. Now onto the electrical issue.
Whenever I open my drivers door the power antenna goes down. Whenever I close the door, the antenna goes up. Very weird. The stereo is stock and non-op. I will be removing it, but has anybody ever seen this happen? Any ideas would be appreciated. Also the dummy lights in the middle always show the doors and hatch as being open. Again any help on where to look will be appreciated.
I will be going through the schematics and seeing what I can find, but any advice is appreciated.
Whenever I open my drivers door the power antenna goes down. Whenever I close the door, the antenna goes up. Very weird. The stereo is stock and non-op. I will be removing it, but has anybody ever seen this happen? Any ideas would be appreciated. Also the dummy lights in the middle always show the doors and hatch as being open. Again any help on where to look will be appreciated.
I will be going through the schematics and seeing what I can find, but any advice is appreciated.
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

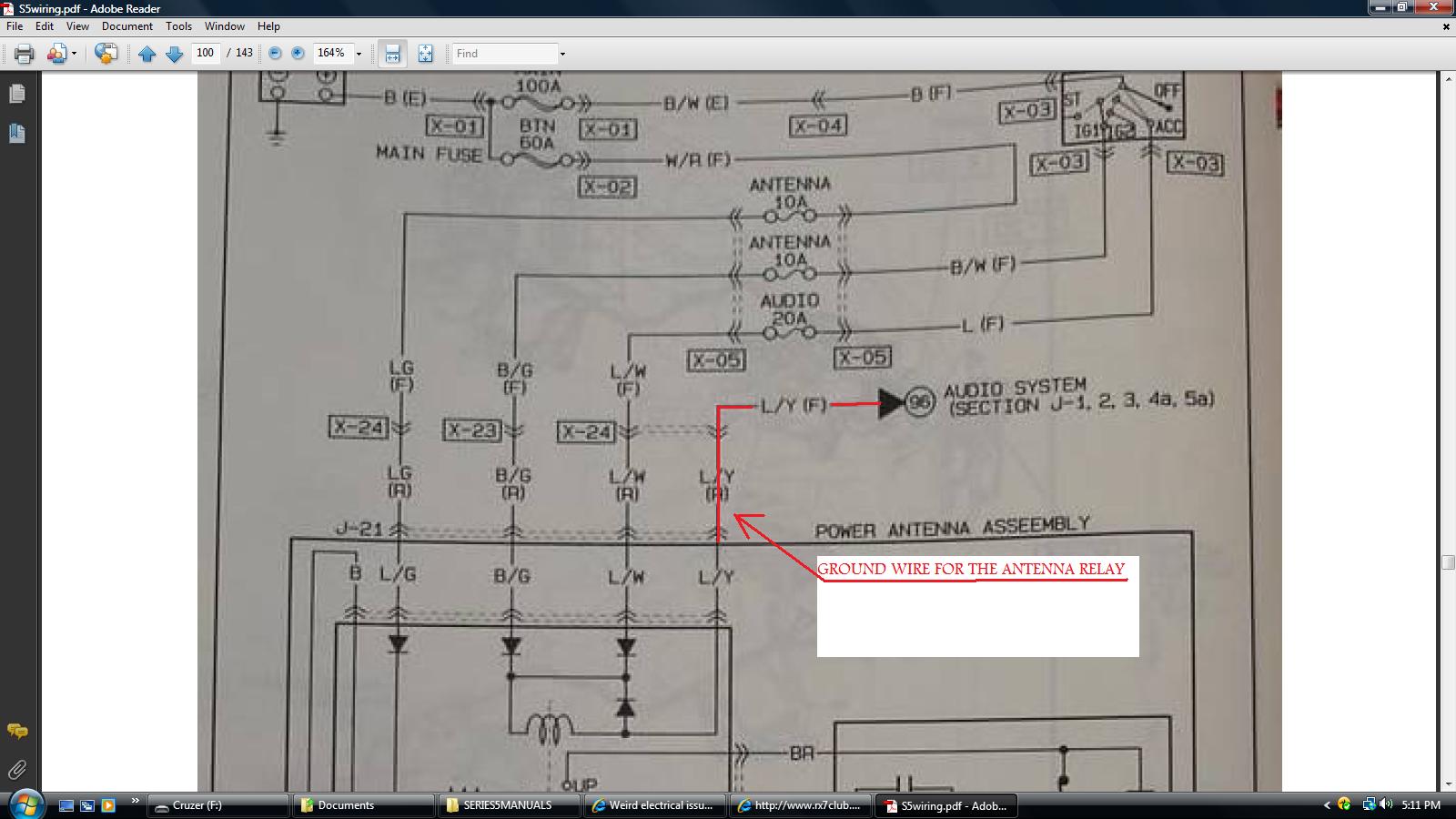

Sounds like the door switch is acting like the gnd for the antenna relay and probably more. Find the ground block for the antenna and make sure it's connected up. I believe that gnd comes from the radio circuit somewhere.

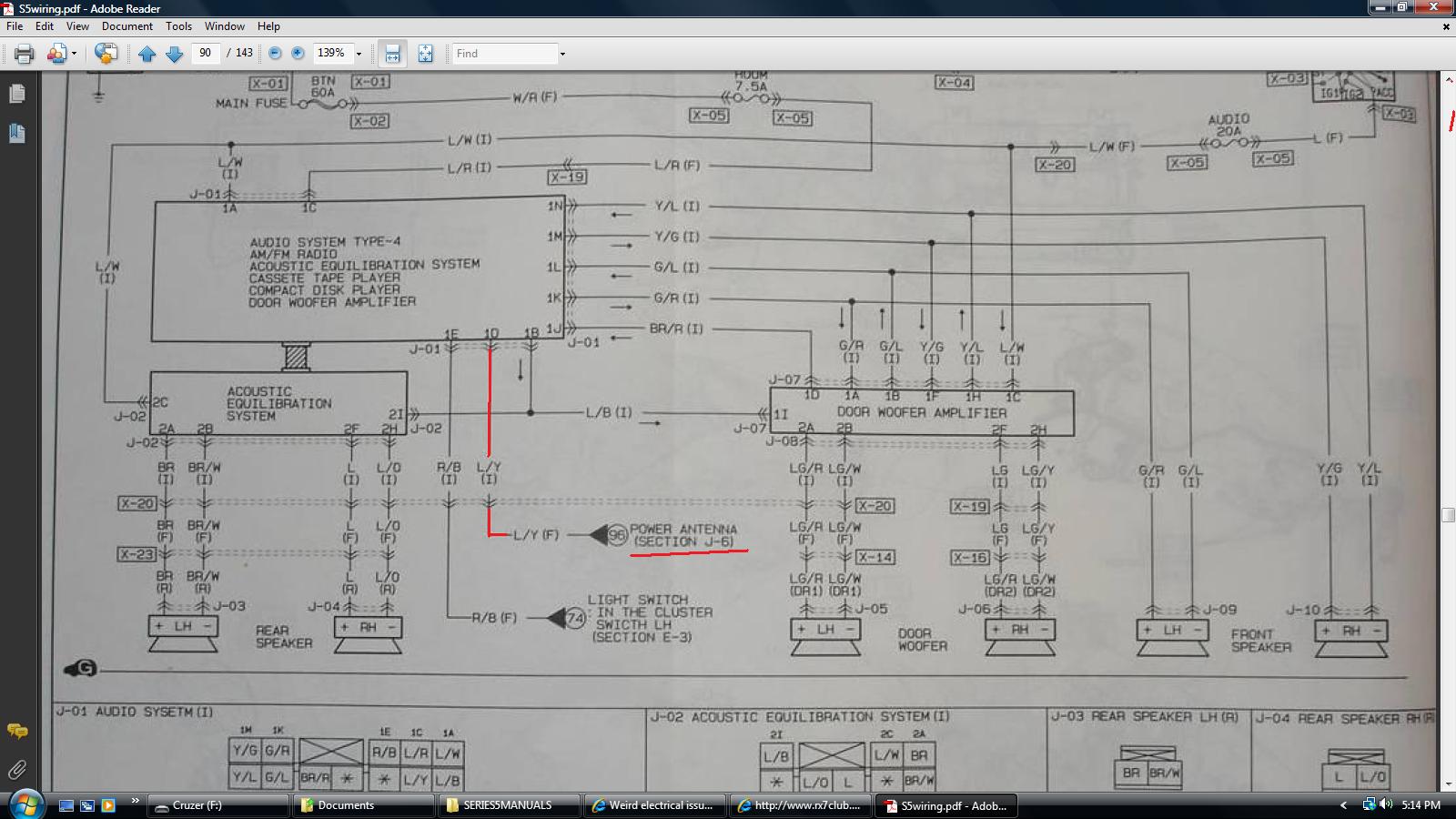

When you turn the radio on, the radio itself puts a gnd on the antenna relay (the L/Y wire) and the antenna deploys. As to where in the radio IT gets the gnd is an unknown to me..........unless the chassis of the radio acts as the gnd. Got me.
When you turn the radio on, the radio itself puts a gnd on the antenna relay (the L/Y wire) and the antenna deploys. As to where in the radio IT gets the gnd is an unknown to me..........unless the chassis of the radio acts as the gnd. Got me.
