Ok never done this before so i need your guy's help. I have everything bolted up but there 2 lines on the wastegate, they are under the spring housing. I don't know where they go. I think one goes to the nipple on the turbo compressor? And the other goes......? Any help appreciated. O and its a Trust 47mm incase u needed to know. Thx



No one knows?



Aftermarket wastegate?
I doubt you'd get much responses here.
You should try the Single Turbo section.

If you're running unmolested boost, IGNORE THE TOP FITTING.
Connect the bottom fitting to any vacuum fitting along the intake tract - most would recommend trying to get a fitting closest to the compressor housing.


-Ted

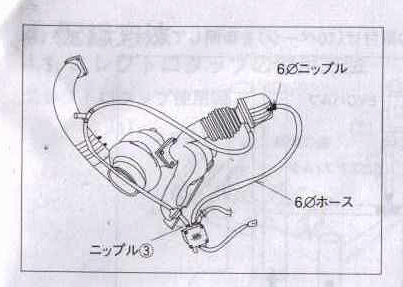

here ya go



wicked thx guys, excpet i have 2 lower fittings and one upper...looks just like the pic though.
