Volvo FMIC Install Pics
Here is the latest side project from the HOUSE of BANZAI:
My 50.00 Volvo FMIC Install.
I removed the existing Radiator support with the trust PLASMA CUTTER, Then started the Mock-Up for the fitting of the Volvo FMIC. The Radiator will be installed 3" behind it. It will require re-working the lower radiator outlet due to interference with the front sway bar.
My 50.00 Volvo FMIC Install.
I removed the existing Radiator support with the trust PLASMA CUTTER, Then started the Mock-Up for the fitting of the Volvo FMIC. The Radiator will be installed 3" behind it. It will require re-working the lower radiator outlet due to interference with the front sway bar.
Last edited by banzaitoyota; 01-28-03 at 08:57 PM.
#6
It's one of the better "junkyard" units to use in TII's. The most talked about ones, and in my opinion in order of performance are
- NPR large
- Volvo
- starion/conquest
- NPR large
- Volvo
- starion/conquest
Trending Topics
#8
Yes, the NPR large is FAR too big for the majority of TII owners.
The starion/conquest intercooler is probably the best junkyard unit for most TII owners. It's not too hard to cut off the ports and put larger ones on, and shouldn't cost more than $50 to have a shop do it.
The starion/conquest intercooler is probably the best junkyard unit for most TII owners. It's not too hard to cut off the ports and put larger ones on, and shouldn't cost more than $50 to have a shop do it.
#13
I'm not too sure of the years either, but if you search for "Volvo Intercooler" on ebay, you will find a handful to choose from. The unit being spoken of in this thread is in a few volvo cars and MAYBE even a saab car or two. Take a look at some of the pics posted above - if it looks like it, then it is it. Other volvo ic's are obviously different looking.
#14
The Volvo IC is pretty decent, and even better when you factor in the price. I have one sitting in my brother's garage he is eyeing...and also an even BIGGER Saab unit that looks pretty similar, as well as the "normal" Saab, a Starion, Tbird, etc. JY IC's are fun!
#15
I no nothing
Join Date: Sep 2001
Location: manshank va.
Posts: 328
Likes: 0
Received 0 Likes
on
0 Posts
this is a volvo i/c http://cgi.ebay.com/ebaymotors/ws/eB...&category=6764
they came in all 740/760 turbo cars. as well as the 940 rwd turbos. the 2XX cars, some had them, some didnt. in theary the have one of the most efficent designs. my 2c
they came in all 740/760 turbo cars. as well as the 940 rwd turbos. the 2XX cars, some had them, some didnt. in theary the have one of the most efficent designs. my 2c
#16
What Subscription?
Thread Starter
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts

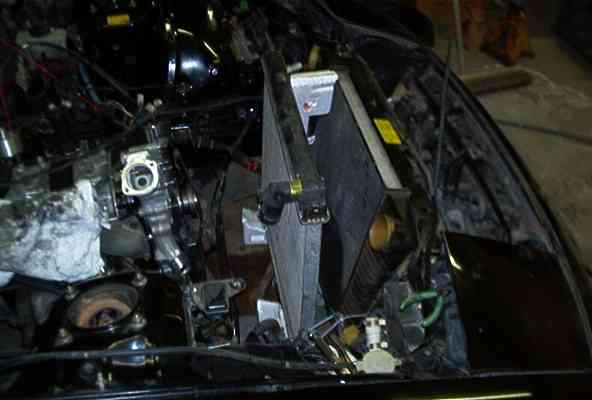

Ok better pics tonight. Here is the first Mock-up of the Rad and FMIC. I have taken the stock mounts off the side of the test rad.
Last edited by banzaitoyota; 01-29-03 at 07:48 PM.
#17
What Subscription?
Thread Starter
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
Here is the main area of concern right now. The lower rad outlet to swaybar clearance. I may solve it with a different radiator. I will now for sure tommorow when I mock up the low splash guard.....
Last edited by banzaitoyota; 01-29-03 at 07:58 PM.
#18
Rotary Enthusiast
Join Date: Mar 2001
Location: Ft. Worth, Texas, USA, Earth, Solar System...
Posts: 1,273
Likes: 0
Received 0 Likes
on
0 Posts
Hmmm... the Supra (Mk III) flows more than any of those, (large OR small NPR, Volvo, or Starion) has a pretty good amount of surface area, (more than the starion or small NPR, less than the Volvo or large NPR) and passes more air more easily through the surface than any of them so it won't restrict cooling as much. It's ugly though.
Brad
Brad
#23
Are supra stock intercoolers that good? Many drag racers running over 30 psi use the NPR large unit, but I don't see any using the stock supra intercooler. This must mean something...
