Vacuum and wiring halp meh
this is a jspec s5 tii swap into a s4 na, i am using jspec harness

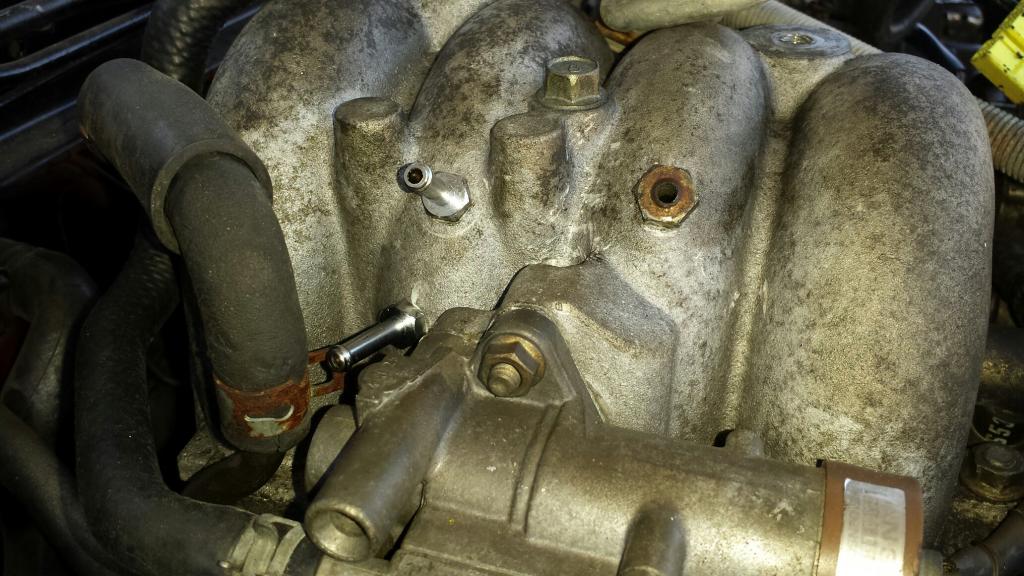

so here are 3 vacuum fittings on my plenum. i think 1 of them might go to boost guage. the other two, i dunno.

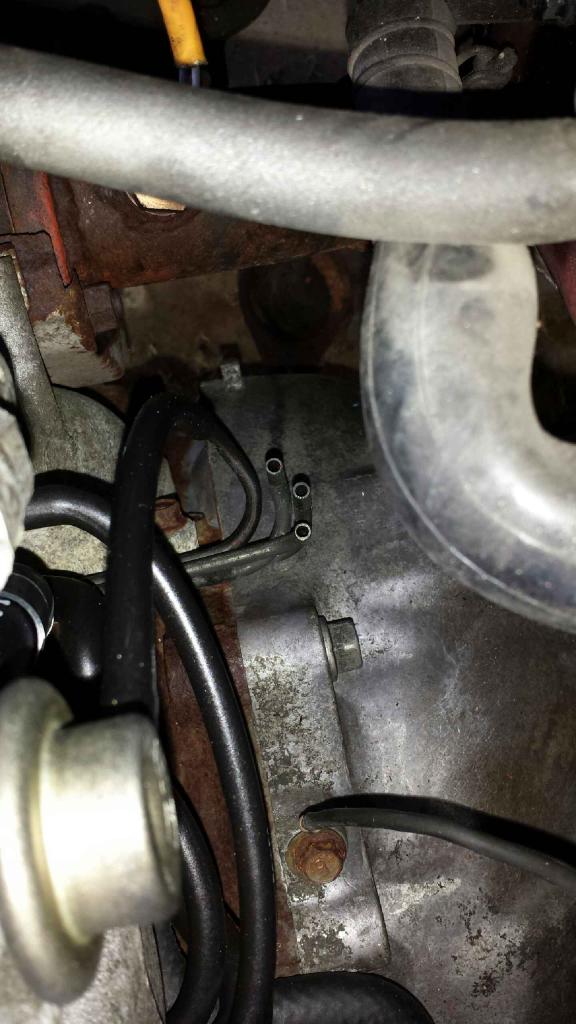

ok this one, air pump is deleted. the 3 lines that go to it are venting into the atmosphere. would capping those be fine? they still go through the valves and back into the intake. in other words from here back, everything is still connected.

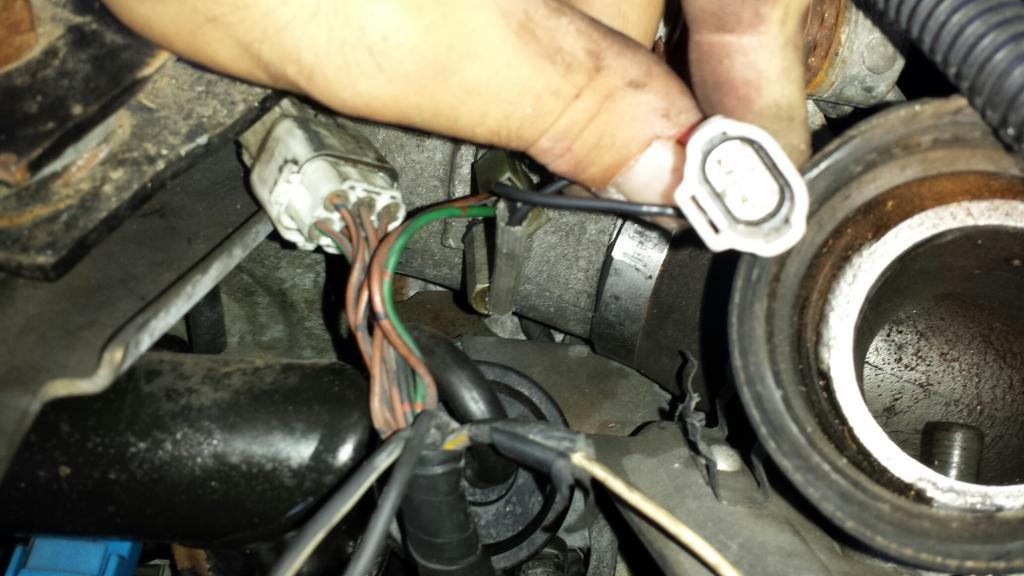

next, this sensor is on the intake tube that would be right after the stock intercooler, before the plenum. there is 2 sensors, look like temp, the bottom one i cant find a spot on the harness for.
thanks for all the help in advance.
so here are 3 vacuum fittings on my plenum. i think 1 of them might go to boost guage. the other two, i dunno.
ok this one, air pump is deleted. the 3 lines that go to it are venting into the atmosphere. would capping those be fine? they still go through the valves and back into the intake. in other words from here back, everything is still connected.
next, this sensor is on the intake tube that would be right after the stock intercooler, before the plenum. there is 2 sensors, look like temp, the bottom one i cant find a spot on the harness for.
thanks for all the help in advance.
