UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.

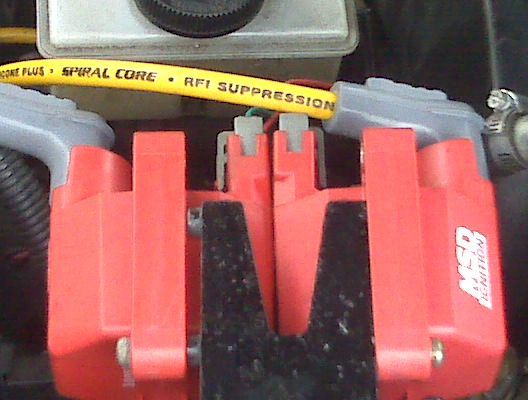

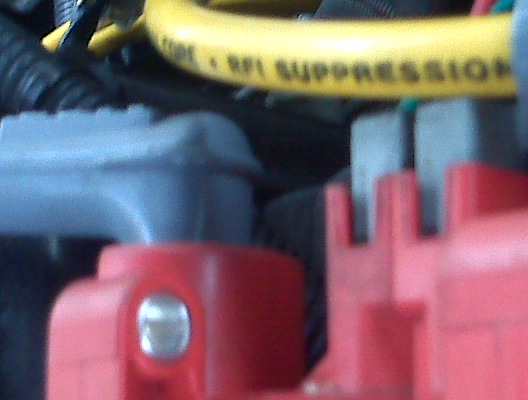

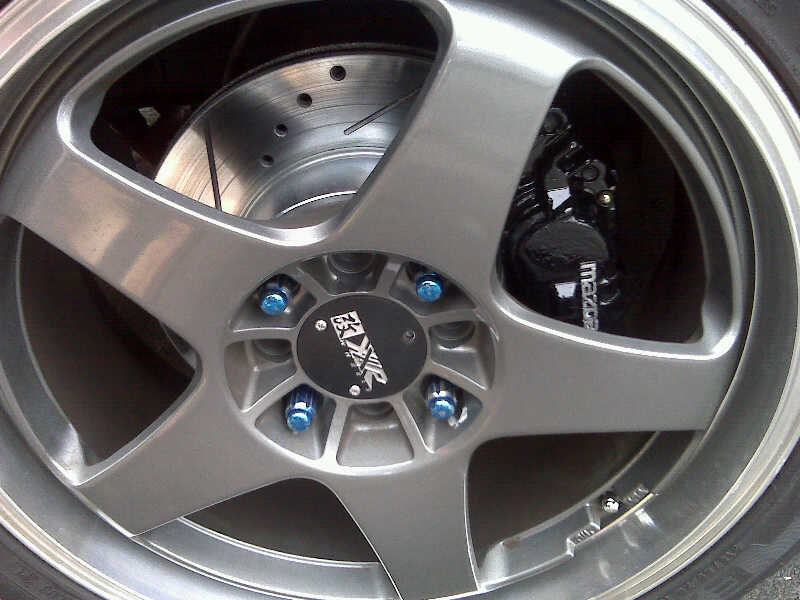

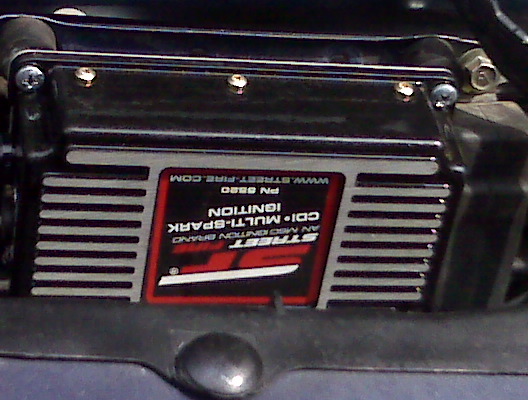

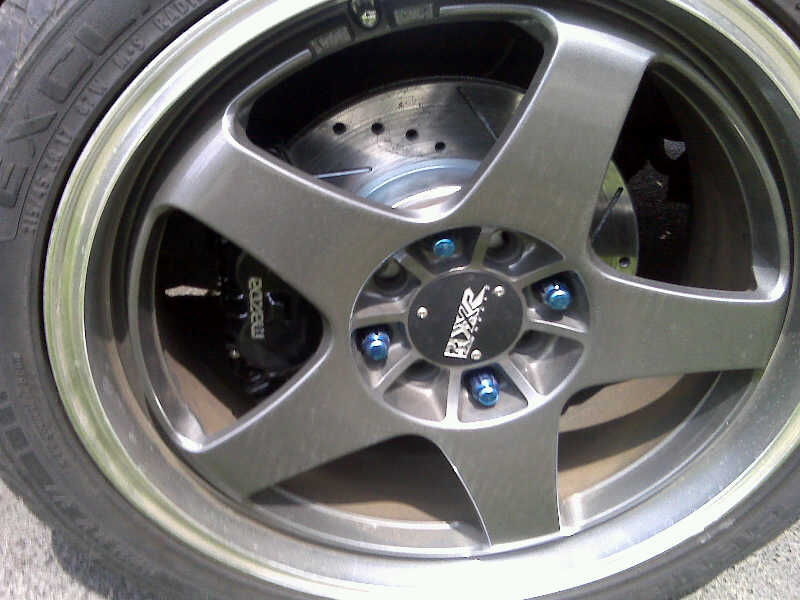

I have been running for around 2 years a 4 lug 4 piston caliper 5 lug rotor hybrid on my car thanks 2 Aaron Cake spacers and let me tell you guys this is one of the best mods that i have done 2 my car,brakes feel awesome and stopping is great,next on the list is my ignition upgrade.I have a Microtech LT8S regular wasted spark setup running 2 MSD single tower coils on trailing firing from the stock igniter and a dual MSD coil box running from a streetfire cdi box for leading.Let me tell you starting the car now is easier(bridgeports are a pain 2 start sometimes cause plugs like 2 go bad on them)and spark is way stronger,dwell is 2.75 and coils dont get hot at all!So far so good.Next on the list is my AEM wideband,i had a LC1 unit that went bad and i did replace it with the AEM unit and i love it.Next on my list is a full suspension upgrade and a full cage for the beast.
Attached Thumbnails UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.-img00068.jpg.jpg   UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.-img00064.jpg   UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.-img00063.jpg.jpg   UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.-img00062.jpg.jpg   UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.-img00061.jpg.jpg

UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.-img00060.jpg.jpg

Last edited by joeylyrech; 04-21-12 at 11:59 AM. Reason: no
Old 04-21-12, 12:02 PM
  #2
87 SE WITH S5 T2 SWAP

Thread Starter
iTrader: (11)

joeylyrech's Avatar

Join Date: May 2004
Location: allentown pa
Posts: 2,071
Likes: 0
Received 3 Likes on 2 Posts
PA test subject

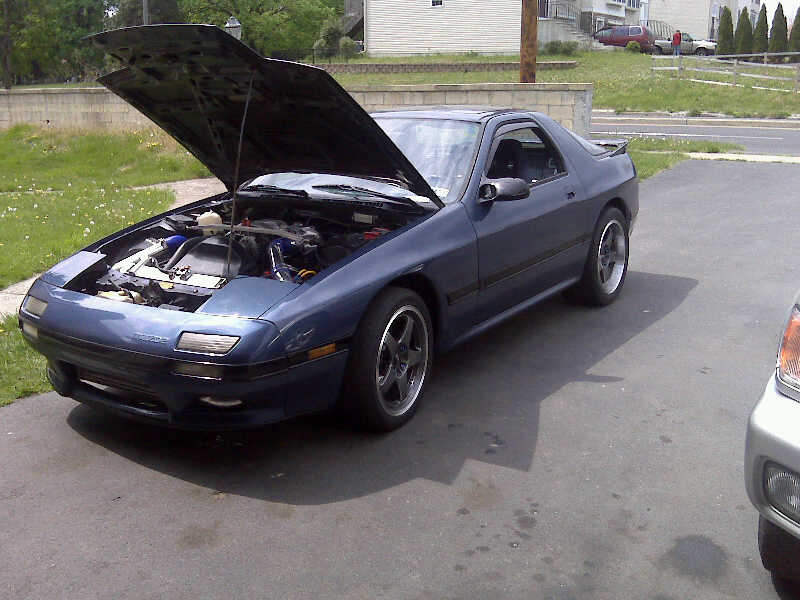

And here is a pic of the test subject for those that have never seen it before.
Attached Thumbnails UPDATES!4piston calipers on 4 lug/MSD coils and CDI boxes install.-img00065.jpg.jpg
Old 04-22-12, 10:43 AM
  #3
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Glad they are working out for you! I think I've had mine on for about 4 years now. No vibrations or weird wear. Though I do need to upgrade the master cylinder.
Old 04-22-12, 11:01 AM
  #4
87 SE WITH S5 T2 SWAP

Thread Starter
iTrader: (11)

joeylyrech's Avatar

Join Date: May 2004
Location: allentown pa
Posts: 2,071
Likes: 0
Received 3 Likes on 2 Posts
Thanks Aaron for the spacers!I am still using the 4 lug master and brake cilinder and it does seem fine,what makes you thing that you need 2 upgrade the master?
Old 04-22-12, 03:27 PM
  #5
On the fasttrack!

iTrader: (22)

magus2222's Avatar

Join Date: Oct 2006
Location: virginia beach, virginia
Posts: 2,493
Likes: 0
Received 0 Likes on 0 Posts
think your rotors are on backwards

Lloyd
Old 04-23-12, 09:21 AM
  #6
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Originally Posted by joeylyrech
Thanks Aaron for the spacers!I am still using the 4 lug master and brake cilinder and it does seem fine,what makes you thing that you need 2 upgrade the master?
The original S4 single piston master has a lot of travel with the bigger brakes. Plus, mine is over 10 years old so it's about that time when I'd replace it just because of age anyway. Probably go with the 626 (or is that 929?) master.
Old 04-23-12, 09:30 AM
  #7
87 SE WITH S5 T2 SWAP

Thread Starter
iTrader: (11)

joeylyrech's Avatar

Join Date: May 2004
Location: allentown pa
Posts: 2,071
Likes: 0
Received 3 Likes on 2 Posts
rotors

Originally Posted by magus2222
think your rotors are on backwards

Lloyd
Now im confused cause they have a R an L stamped on them and they were installed according 2 that.Let me look at it again,thanks for letting me know buddy!
Old 04-24-12, 10:40 PM
  #8
This sh*t burns oil!

iTrader: (7)

SpikeDerailed's Avatar

Join Date: Oct 2006
Location: Charlotte, NC - USA
Posts: 1,239
Received 5 Likes on 5 Posts
Originally Posted by magus2222
think your rotors are on backwards

Lloyd
The outside slots are irrelevant, its the direction of the internal cooling vanes that determine left from right.
Old 04-24-12, 11:29 PM
  #9
On the fasttrack!

iTrader: (22)

magus2222's Avatar

Join Date: Oct 2006
Location: virginia beach, virginia
Posts: 2,493
Likes: 0
Received 0 Likes on 0 Posts
i only say this since i have the same rotors, this had me confused, so i had to look up how they go on the car

Lloyd
