Up grade from 40mm wastegate to Turbosmart 45mm wastegate

Thread Tools

Search this Thread

Old 04-13-15, 03:42 AM
  #1
RE for life

Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,209
Likes: 0
Received 30 Likes on 26 Posts
Up grade from 40mm wastegate to Turbosmart 45mm wastegate
Been fighting boost creep ever since I fix the exhaust leak
Try increase back pressure by put back Cat n silencer it help but still creep after 6000

So finally decide to upgrade to wastegate

Man talking about the size different !!
Will report tonight when I finish the install !!

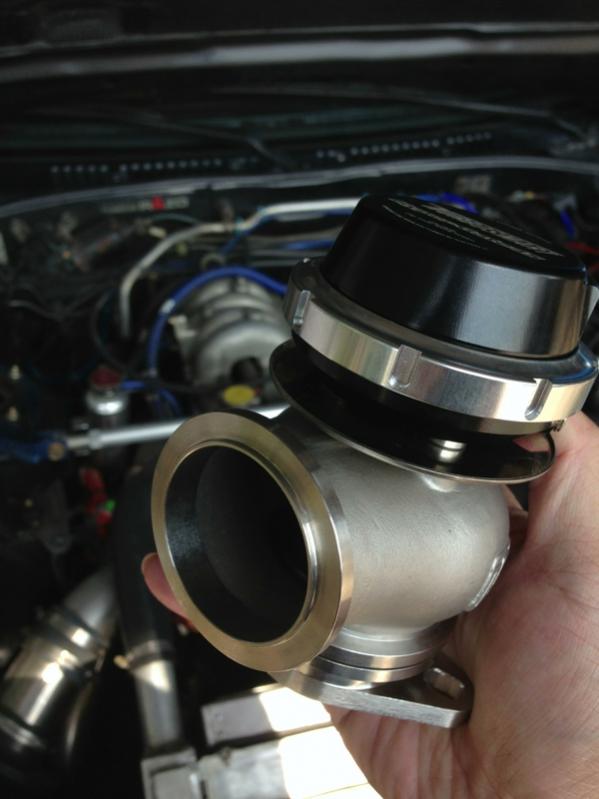

Up grade from 40mm wastegate to Turbosmart 45mm wastegate-image-2889236561.jpg



Up grade from 40mm wastegate to Turbosmart 45mm wastegate-image-4143621671.jpg

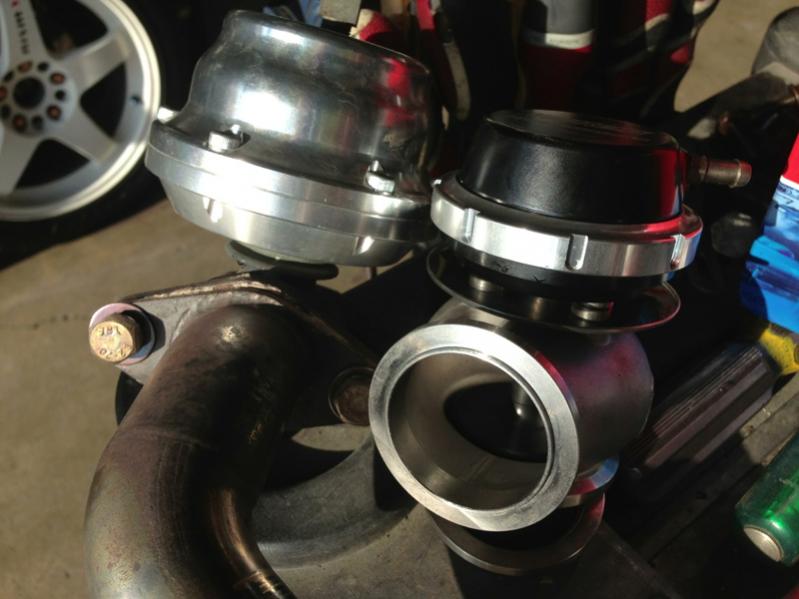

Up grade from 40mm wastegate to Turbosmart 45mm wastegate-image-2521295114.jpg

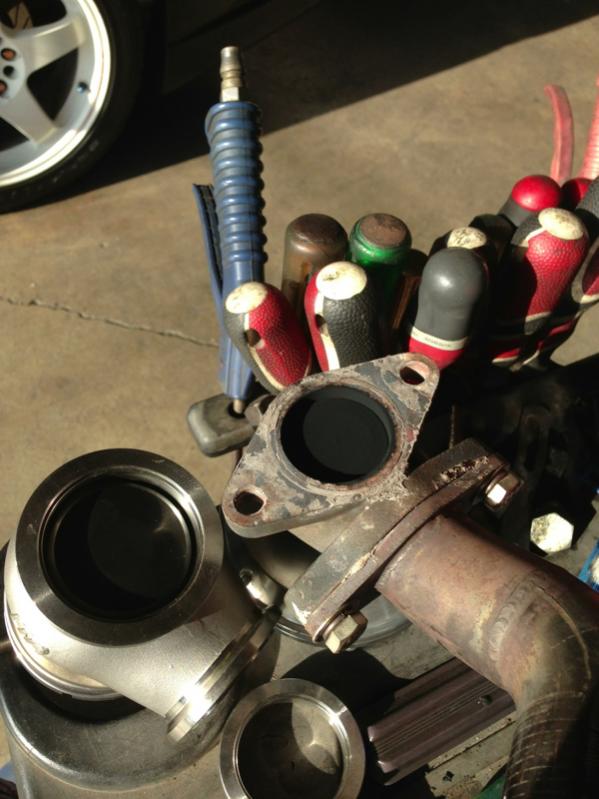

Up grade from 40mm wastegate to Turbosmart 45mm wastegate-image-3179358341.jpg
diyman25 is offline
Reply Like
Old 04-13-15, 04:55 AM
  #2
RE for life

Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,209
Likes: 0
Received 30 Likes on 26 Posts
The reason of Boost creep the location of wastegate , last owner install in such funky location with knight sport hight flow , there is no way 38mm wastwgate will be enought !!
But beside that , every thing work fine, lets why decide still keep same location , but just upgrade the wastegate instead

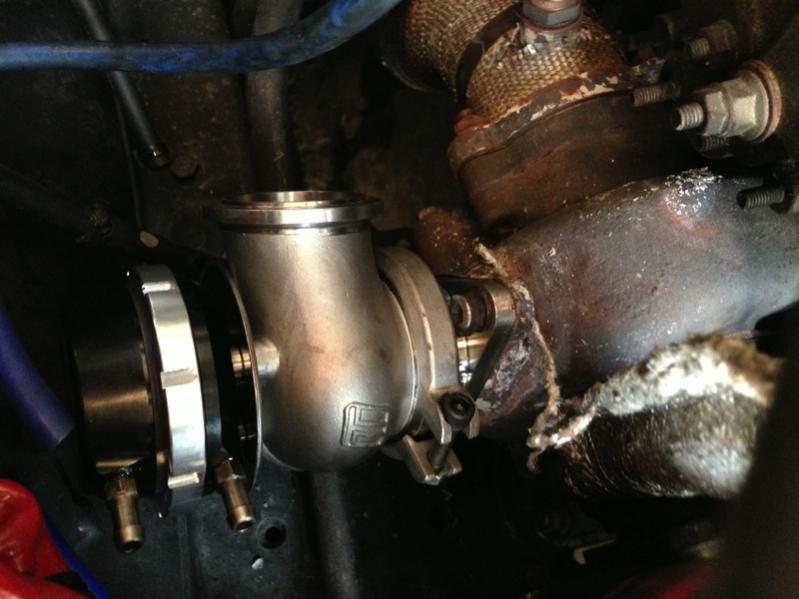

Up grade from 40mm wastegate to Turbosmart 45mm wastegate-image-3933487858.jpg

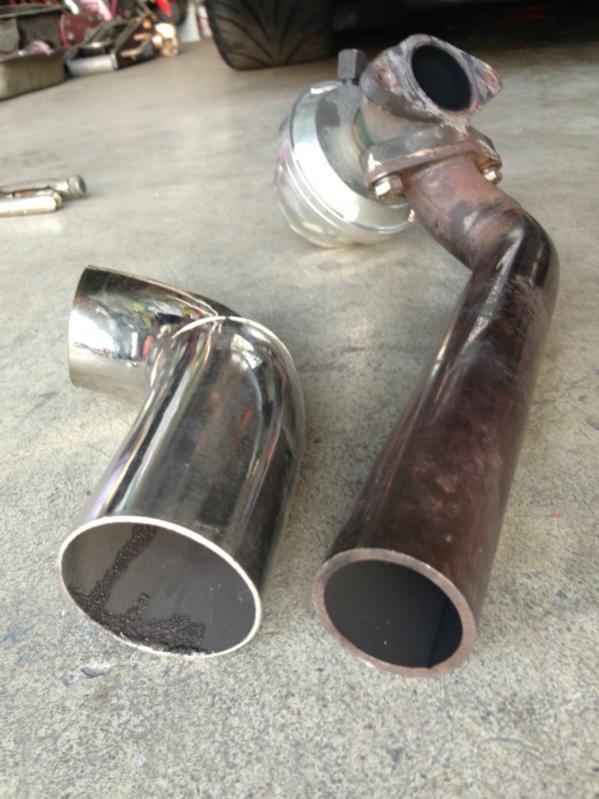

Up grade from 40mm wastegate to Turbosmart 45mm wastegate-image-333286802.jpg
diyman25 is offline
Reply Like
Old 04-15-15, 07:53 AM
  #3
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
High velocity spot with bad entry angle means you need a lot of wastegate surface area.
Turblown is offline
Reply Like
Old 04-15-15, 10:12 AM
  #4
Rotary Enthusiast

iTrader: (6)

brian_skotch's Avatar

Join Date: Dec 2008
Location: ABQ, NM
Posts: 954
Received 16 Likes on 10 Posts
PO placed the wg right on the hotside of the turbo?
brian_skotch is offline
Reply Like
Old 04-18-15, 09:50 AM
  #5
RE for life

Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,209
Likes: 0
Received 30 Likes on 26 Posts
Originally Posted by Turblown
High velocity spot with bad entry angle means you need a lot of wastegate surface area.
That's right, but still cheaper to build manifold

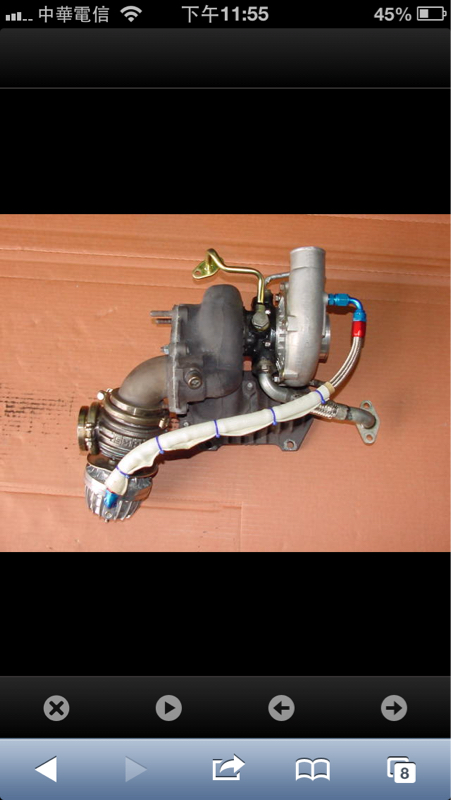

Up grade from 40mm wastegate to Turbosmart 45mm wastegate-image-725136306.jpg

Here anther forum members idea
diyman25 is offline
Reply Like
Old 04-18-15, 09:51 AM
  #6
RE for life

Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,209
Likes: 0
Received 30 Likes on 26 Posts
Originally Posted by Brian_Reynolds123
PO placed the wg right on the hotside of the turbo?
The 40mm wastegate was on hot side since 2000
So no problem yet
J
diyman25 is offline
Reply Like
