Tread size front iron oil feed (BNR S5 turbo)
#1
Tread size front iron oil feed (BNR S5 turbo)
Hi frnds!
I wanna make a AN04 stainless steel oil feed line for my S5 irons and BNR S5 turbo.
What is the size and thread pitch of the front iron oil feed ?
is it M14x1.5 or is it M12X1.5?
from searching a lot of people say its both.... anyone who recently has done this ? Feed back is needed
I plan on using one of these for the turbo adapter
http://www.himni-racing.com/index.ph...pffim5in5mf9j1
I wanna make a AN04 stainless steel oil feed line for my S5 irons and BNR S5 turbo.
What is the size and thread pitch of the front iron oil feed ?
is it M14x1.5 or is it M12X1.5?
from searching a lot of people say its both.... anyone who recently has done this ? Feed back is needed
I plan on using one of these for the turbo adapter
http://www.himni-racing.com/index.ph...pffim5in5mf9j1
#2
the fc archive says m12x1.5
https://www.rx7club.com/2nd-gen-archive-72/master-list-thread-sizes-2nd-gen-nuts-bolts-367392/
this thread post #18 says m14x1.5
https://www.rx7club.com/showthread.p...light=oil+feed
https://www.rx7club.com/2nd-gen-archive-72/master-list-thread-sizes-2nd-gen-nuts-bolts-367392/
this thread post #18 says m14x1.5
https://www.rx7club.com/showthread.p...light=oil+feed
#4
Yeah I emailed Brian yesterday, waiting to hear back. What exactly would you want measured ? you talking about the banjo bolt i assume?

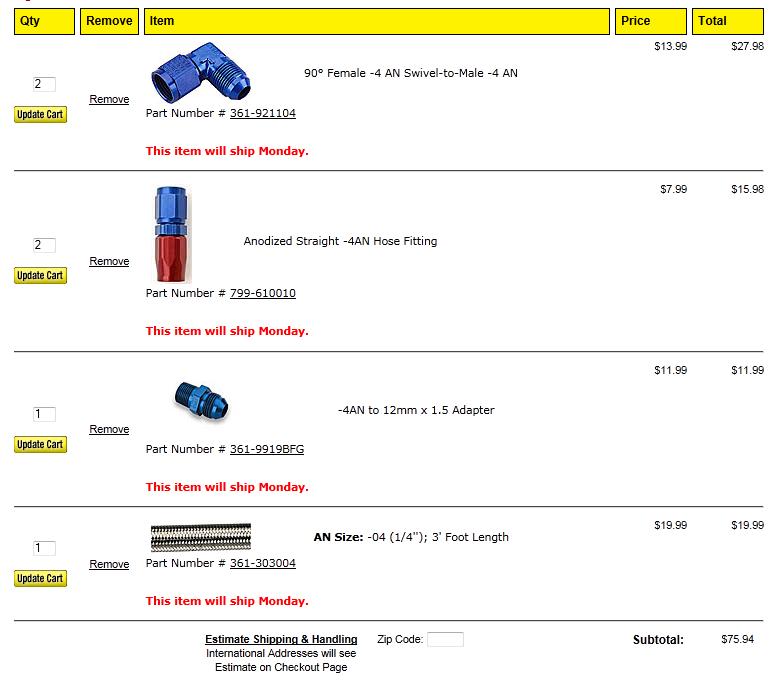

I made a attachment of what parts would be necessary (minus the flange in the first post) to insure a nice oil feed kit. I'm not too sure this whole oil feed line business is worth the $140 it would cost to complete (the flange is $45 shipped to my house alone!!!)
I made a attachment of what parts would be necessary (minus the flange in the first post) to insure a nice oil feed kit. I'm not too sure this whole oil feed line business is worth the $140 it would cost to complete (the flange is $45 shipped to my house alone!!!)
#5

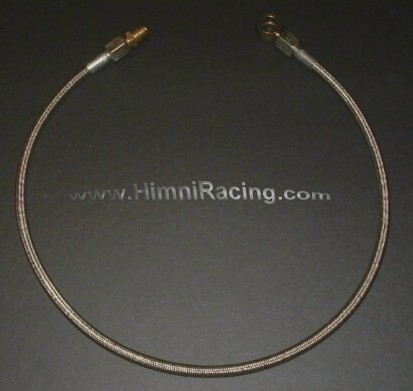

then there is this option for $70, although doesn't look as cool, and still requires the $28 flange.
http://www.himni-racing.com/index.ph...oducts_id=1017
http://www.himni-racing.com/index.ph...oducts_id=1017
#7
rotorhead
iTrader: (3)
this is what you want http://www.atpturbo.com/mm5/merchant..._Code=ATP-OIL2 . I want to say the FD and possibly the Cosmo 13B are M14
