Tips for driving FC with my prosthetic leg?
#1
Tips for driving FC with my prosthetic leg?
Maybe this is more well suited to a general area, or a driving techniques section, but I know it'll get some traffic here, sooo...
Some of you may have heard that due to an unfortunate incident while hiking in Death Valley a while back, I lost my left leg. I've since had a replacement, but I was wondering, does anyone have any advice for how to better control the clutch with my new mechanical wonder of a leg?
Some of you may have heard that due to an unfortunate incident while hiking in Death Valley a while back, I lost my left leg. I've since had a replacement, but I was wondering, does anyone have any advice for how to better control the clutch with my new mechanical wonder of a leg?
#2
rotary tech
iTrader: (9)
Join Date: Jan 2007
Location: tracy/stockton ca
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts
sell your car to me
nah the only thing i can say is practice. its gonna be a whole new learning experience for you. i would find an empty parking lot and re learn. sorry to hear about that man. keep your head up though
nah the only thing i can say is practice. its gonna be a whole new learning experience for you. i would find an empty parking lot and re learn. sorry to hear about that man. keep your head up though
#3
Maybe this is more well suited to a general area, or a driving techniques section, but I know it'll get some traffic here, sooo...
Some of you may have heard that due to an unfortunate incident while hiking in Death Valley a while back, I lost my left leg. I've since had a replacement, but I was wondering, does anyone have any advice for how to better control the clutch with my new mechanical wonder of a leg?
Some of you may have heard that due to an unfortunate incident while hiking in Death Valley a while back, I lost my left leg. I've since had a replacement, but I was wondering, does anyone have any advice for how to better control the clutch with my new mechanical wonder of a leg?
#4
japan connection
iTrader: (52)
practice is the best option,
other than that you could find someone to design you a hand controlled clutch lever. Shouldnt be all that difficult and could be something almost like a handbrake but attached to the slave master. They sell hydraulic hand brakes so all you would need to do is attach that line to the clutch master cyl and you are off to the handicap 500!
other than that you could find someone to design you a hand controlled clutch lever. Shouldnt be all that difficult and could be something almost like a handbrake but attached to the slave master. They sell hydraulic hand brakes so all you would need to do is attach that line to the clutch master cyl and you are off to the handicap 500!
#6
World 427ci 7.0 liters
Join Date: Aug 2005
Location: Las Vegas
Posts: 104
Likes: 0
Received 0 Likes
on
0 Posts
My friend Joey of Island Racing has a right prosthetic leg (Aerospace computerized prototype-aluminum/titanium).
He drives a 1971 Toyota Corolla 3TC with Nitrous. On the stick shift is a thumb throttle (activated with his right thumb). The nitrous system has two switches that must be activated, the first is activated when the clutch pedal is fully released, the second is a button on the steering wheel (activated with his left thumb).
As often as he beats the car in the next lane you wouldn't classify him as handicapped.
His only hardship is when staging as it can take a little more time to get the staging lights lit. But you wouldn't know it if you saw him racing.
Vid: 12 second run beating a Pro Bracket Nova:
http://videos.streetfire.net/video/1...-v8_111449.htm
He drives a 1971 Toyota Corolla 3TC with Nitrous. On the stick shift is a thumb throttle (activated with his right thumb). The nitrous system has two switches that must be activated, the first is activated when the clutch pedal is fully released, the second is a button on the steering wheel (activated with his left thumb).
As often as he beats the car in the next lane you wouldn't classify him as handicapped.
His only hardship is when staging as it can take a little more time to get the staging lights lit. But you wouldn't know it if you saw him racing.
Vid: 12 second run beating a Pro Bracket Nova:
http://videos.streetfire.net/video/1...-v8_111449.htm
#7
japan connection
iTrader: (52)
Well the button on the shifter makes sense but he wont be any better off in regards to feeling than he is now. Thats why I figured if you cant get the sense of touch from your leg why not get it from your hand, but now since it is clear you cant get it from your hand unless it was a hoop behind the steering wheel like in some rally cars then you may just have to resort to you last limb. Your love muscle (thats not really a muscle at all).
Might be time to look into a sequential mission!
Trending Topics
#8
destroy, rebuild, repeat
iTrader: (1)
a lever attached to the left hand side of the steering wheel sounds like the best option to me, its not hard to always have a hand there, with the other hand for shifting.
where is your leg amputated, knee down? If it was up at the hip, that would be near impossible to operated a clutch, but I can see you learning how just by lifting your knee
where is your leg amputated, knee down? If it was up at the hip, that would be near impossible to operated a clutch, but I can see you learning how just by lifting your knee
#9
Rotary Freak
iTrader: (2)
Join Date: Mar 2006
Location: Wayne NJ
Posts: 2,508
Likes: 0
Received 0 Likes
on
0 Posts
yeah my father lost his left leg in a bad motorcyle accident a few years back too. sinch then he has givin up stick shift and solumly drives automatics. if you fingure out a decent way to attack this please let me know. i would think the easiest way would be a rod attatched to the clutch but that could cause a number of other problems due to one hand shiftin and the other depressing the clutch what are you usin to hold the wheel strait? I have given this a great deal of thought also but have not come to a realistic conclusion. my father still has a knee but has been moved further up causing limited bending and a rather long prostisis. well you could always shell out the lut and get a cluchless trans
james
james
#10
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
I wonder if it's worth building a "socket" onto the pedal with captures the foot until you get used to the leg? My assumption being that with a ridged "ankle" joint the foot may be more prone to slipping?
#11
Senior Member
Join Date: Feb 2008
Location: South Florida
Posts: 309
Likes: 0
Received 0 Likes
on
0 Posts
hand clutch like an F1 car... and if you could maybe get a paddle shift system that we could all take advantage of and put it on our cars.... my advice go to your local university engineering dept and tell them of your problem and the young geniuses can help you figure it out for one of there projects, I remember a group doing something along those lines during our senior projects. And the University will gladly fund it.
#12
World 427ci 7.0 liters
Join Date: Aug 2005
Location: Las Vegas
Posts: 104
Likes: 0
Received 0 Likes
on
0 Posts
The above system should be able to work if the clutch pedal and brake pedal were moved to the right so it will be in line with his right leg (weld extensions on the clutch and brake arms to move pedal location over).
Joey has 100's of runs with his current sytem and he speed shifts between gears (no throttle lift)
Joey has 100's of runs with his current sytem and he speed shifts between gears (no throttle lift)
#13
Play in my tree house.
Join Date: Aug 2004
Location: VA 2 FL
Posts: 485
Likes: 0
Received 0 Likes
on
0 Posts
Well I found this on another forum.
Found these guys who do retro fits to sports cars. http://www.rediautosport.com/
I remember this article in Super street as well. Weld Racing built a drift car for a guy in a wheel chair. If I remember correctly he had no use of both his legs.
The inner mechanics of gears and clutch control come from Italian manufacturer, Guidosimplex. Installed by Ito-san, they allow Yoshi to direct everything with his hands. Controlling the works is a major feat for regular driving, but throw in the fast response required for drifting and you get an idea of how well-attuned Yoshi has become to his car. A Nardi Gara leather steering wheel was refitted to include an inner-circular accelerator control and the brakes are now handled by a pull **** left of the steering wheel. While the original hand brake is still in place, a new one was installed on the left side that sits higher to give Yoshi more pulling leverage during turns while he holds the steering wheel with his right hand. Clutching is controlled with a push lever which sits beside the shift ****, altered slightly from Guidosimplex's original.
Hope that helps man. Good luck with your build.
look in the Super Street (feb 2002)... the 5Zigen team made a clutchless transmission by integrating the clutch in the shift ****... you should probably e-mail them on the specs on how to's on that and get yourself hooked up.
Found these guys who do retro fits to sports cars. http://www.rediautosport.com/
motorcycle clutch lever attached to the shifter, hydraulic set up.
I remember this article in Super street as well. Weld Racing built a drift car for a guy in a wheel chair. If I remember correctly he had no use of both his legs.
The inner mechanics of gears and clutch control come from Italian manufacturer, Guidosimplex. Installed by Ito-san, they allow Yoshi to direct everything with his hands. Controlling the works is a major feat for regular driving, but throw in the fast response required for drifting and you get an idea of how well-attuned Yoshi has become to his car. A Nardi Gara leather steering wheel was refitted to include an inner-circular accelerator control and the brakes are now handled by a pull **** left of the steering wheel. While the original hand brake is still in place, a new one was installed on the left side that sits higher to give Yoshi more pulling leverage during turns while he holds the steering wheel with his right hand. Clutching is controlled with a push lever which sits beside the shift ****, altered slightly from Guidosimplex's original.
Hope that helps man. Good luck with your build.
#15
Leah Dizon > Roast Beef
iTrader: (1)
Join Date: Feb 2007
Location: Québec
Posts: 1,006
Likes: 0
Received 0 Likes
on
0 Posts
I'd go with the hand clutch on the shifter too. Everytime you want to change gear you'll have to reach for it anyway and it'll allow you to keep your left hand busy with steering only.
#16
Senior Member
Join Date: Feb 2008
Location: South Florida
Posts: 309
Likes: 0
Received 0 Likes
on
0 Posts
What that big red handle he got in there to the left of the E-brake
maybe I shuld have just read it well the first time.
Thats still alot of levers to control... for drifting they should have gave him a clutchless paddle shift system with accelarator & braking triggers on the e brake.
maybe I shuld have just read it well the first time.
Thats still alot of levers to control... for drifting they should have gave him a clutchless paddle shift system with accelarator & braking triggers on the e brake.
Last edited by ATRON3000; 06-10-08 at 11:04 AM.
#21
World 427ci 7.0 liters
Join Date: Aug 2005
Location: Las Vegas
Posts: 104
Likes: 0
Received 0 Likes
on
0 Posts
My friend Joey owner/driver of the above Corolla suggested that a Harley Davidson hydraulic clutch lever system can be used on the shifter, keeping the install easy/simple and cost effective. Factory brakes and clutch pedal won't need any modifications.
#22
Senior Member
iTrader: (11)
Join Date: Feb 2008
Location: drifting .pa
Posts: 368
Likes: 0
Received 0 Likes
on
0 Posts
just mount a hydro lever like on a bike or 4 wheeler to your shifter kinda like the way some rachet shifters are setup that way u could squeeze it as you grip the shifter i had as shifter cart with that setup worked awsome
#23
Marvelous Hedonist
Join Date: Oct 2007
Location: Old-Town BrightTown, CO
Posts: 761
Likes: 0
Received 0 Likes
on
0 Posts
Collin, Sorry to hear that.
A few details might help. . .
Where does the prosthetic begin?; Do you still have a knee?

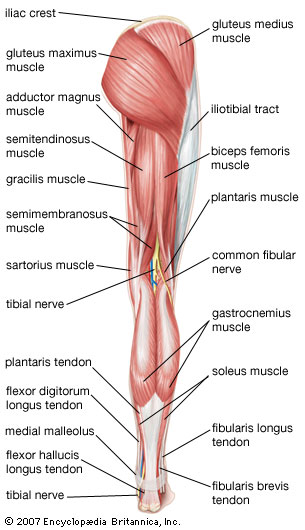

Using the picture provided; Which muscles would you be using to move the prosthetic?
A few details might help. . .
Where does the prosthetic begin?; Do you still have a knee?
Using the picture provided; Which muscles would you be using to move the prosthetic?
