The previous owner modified the throttle body and got rid of the thermal wax assembly. I am installing a TB that has the 2 plates removed but still retains the thermalwax. I cant find the line for it. Can someone maybe give me direction to where to look for the line. Better yet, can someone draw out the line route? Thanks!

~Dave



all the anwers are in here------------------------>http://www.mirror.wreckedyouth.com/man/

link to the FSM. Hope this will help.

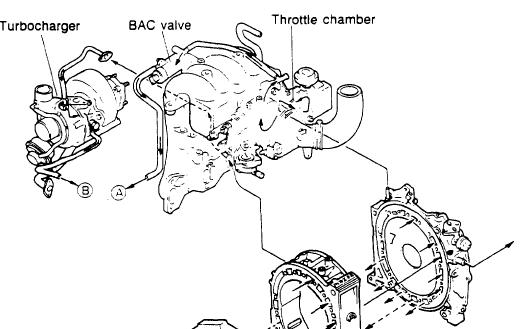

Thanks for the link. So according to the diagram I'm postin, the coolant goes from the rear iron to the throttle body then to the BAC valve? am I correct?

thanks again.



yes swifttone that is correct
TwEaK



...and then to the back of the water pump to complete the circuit.
