Testing ECU/wiring, unsure about some voltage...
When expected voltage is below 1.5V, and my multimeter reads about 2.5 mV, is that normal, or is that too low? Reason I ask is that when it says expected voltage should be 0V (as in ground) and it reads 85mV, then I don't really understand the difference between "below 1.5V" and "0V". Should 0V be actually no voltage at all? Or is my "below 1.5V" voltage too low?
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
As said above, if it's in milivolts, ignore it on the whole UNLESS it's the O2 sensor input that is being looked at.
Just what item are you looking at ???????? What wire in the ECU plug?
Just what item are you looking at ???????? What wire in the ECU plug?
#5
Senior Member
Thread Starter
Join Date: Sep 2008
Location: Seattle, WA
Posts: 622
Likes: 0
Received 0 Likes
on
0 Posts
I'm looking at everything, checking whole ECU harness on my S3. Want to determine if anything at all is bad. O2 sensor actually shows about 0.4V, even though it should read 0V. Maybe I didn't warm the car up enough.
Pretty much everything that's marked as "below 1.5V" or "0V" in the FSM is reading in mV. All the other stuff is close to the numbers mentioned in the FSM, except for the pins related to the switching and relief solenoid valves, since I don't have ACV and they're disconnected. And lastly my neutral switch is sending "in gear" voltage - I don't think I even have a neutral switch, 12A tranny.
Pretty much everything that's marked as "below 1.5V" or "0V" in the FSM is reading in mV. All the other stuff is close to the numbers mentioned in the FSM, except for the pins related to the switching and relief solenoid valves, since I don't have ACV and they're disconnected. And lastly my neutral switch is sending "in gear" voltage - I don't think I even have a neutral switch, 12A tranny.
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
O2 Sensor output being 0.4 vdc is normal for a car without an airpump/acv.
NORMAL series four/five cars 02 will read close to zero vdc BECAUSE the airpump air goes thru the ACV to the EXHAUST PORTS
NORMAL series four/five cars 02 will read close to zero vdc BECAUSE the airpump air goes thru the ACV to the EXHAUST PORTS
Trending Topics
#9
Senior Member
Thread Starter
Join Date: Sep 2008
Location: Seattle, WA
Posts: 622
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, since GSL-SE is fuel injected, it uses ECU in a manner similar to S4. Actually carbed FBs have an ECU as well, it's just different and it's purely for emissions and it's called Emissions Control Unit instead IIRC.
So are there any actual methods for testing the functionality of the ECU itself? Or should I just pull it open and do a visual inspection?
So are there any actual methods for testing the functionality of the ECU itself? Or should I just pull it open and do a visual inspection?
#11
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Foot to the floor and the 02 has no influence. Idle the car in the driveway and the 02 has no influence.

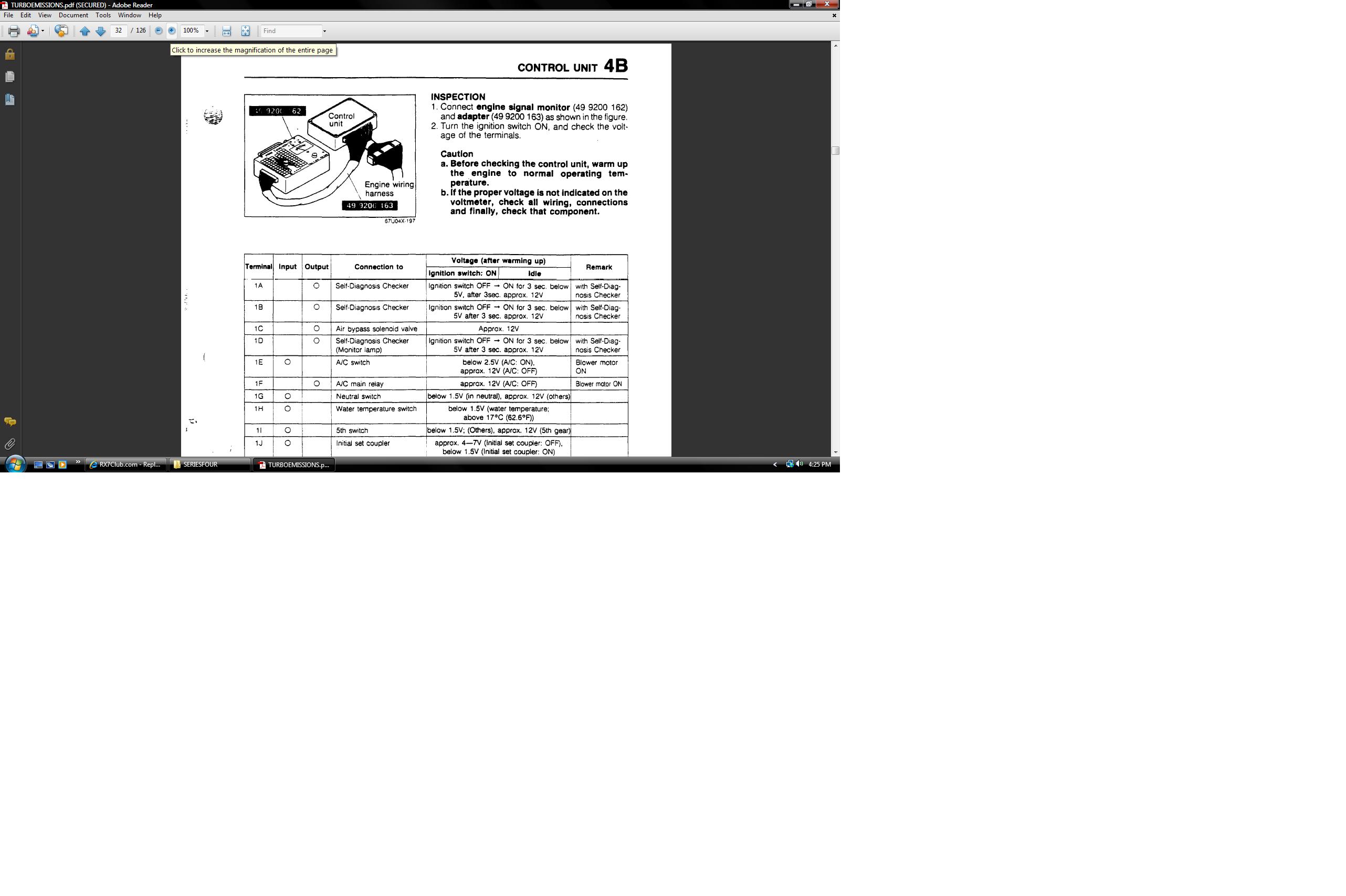

Each pin on the ECU can be checked using the FUEL AND EMISSONS section of the FSM, subsection called CONTROL UNIT. That section shows both INPUTS and OUTPUTS of the ECU.
Mixture at idle can be changed on a series four using the Variable Resistor. This VR has NO influence while driving the car.
Why are you suspecting fuel mixture problems??????? I almost forgot, I usually see afr/voltage outputs from the narrow range 02 sensor, of about .7vdc or .8vdc when at idle with the engine fully hot and no airpump/acv working on the car. You seem to see 0.4vdc which is real close to 14.7afr and to me that is a bunch tooooo lean at idle. Idle being 750-850 rpms more or less.
