Tapping oil return for 6 port turbo
11-14-17, 06:13 AM
#1
Full Member
Thread Starter
Tapping oil return for 6 port turbo
Hi guys
I've heard of people tapping the front cover for oil return but I'm worried about metal shards getting inside my engine. I've decided to tap my oil pan instead. Is there a specific location that I need to tap on the oil pan? Any help would be greatly appreciated!
Thanks
I've heard of people tapping the front cover for oil return but I'm worried about metal shards getting inside my engine. I've decided to tap my oil pan instead. Is there a specific location that I need to tap on the oil pan? Any help would be greatly appreciated!
Thanks
11-18-17, 10:27 AM
#3
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts

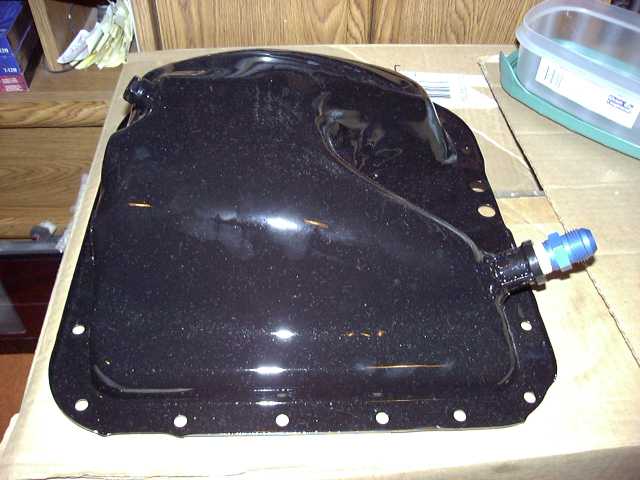

I've always just welded a fitting onto the oil pan.
On the front of the pan, passenger side, as high as you can on the front "butt cheek" which surrounds the engine mount.
Use a fitting of your choice. I usually use 1/2" NPT or -10 AN
[img]https://www.aaroncake.net/misc/rebui...il%20Drain.jpg[/img]
And in this video I add a -10 to the Cosmo oil pan:
On the front of the pan, passenger side, as high as you can on the front "butt cheek" which surrounds the engine mount.
Use a fitting of your choice. I usually use 1/2" NPT or -10 AN
[img]https://www.aaroncake.net/misc/rebui...il%20Drain.jpg[/img]
And in this video I add a -10 to the Cosmo oil pan:
