im planning on installing my old hybrid turbo on a 95 eclipse cause the car needs a new turbo and this is a nearly brand new turbo i took off my S4 TII..the only problem is that the rx7 turbo has a crazy stupid flange with the offset bolt on the one corner so i have to build a custom manifold...does anyone know where i can buy just a flange that would fit the turbo from the rx7 so i can build off of that?



im not much help, but wouldnt it be easier to buy a manifold then just hack of the flange and weld on teh S4 flange? We have a metal place here that made me some flanges for like $20 each or so. I would call around to some machin/metal shops in your area



dude you will be a lot better off just getting a used 16G



lol a 16g is a POS compaird to what i have...it has a 16g on it now..the turbo i want to put on is a sweet hybrid with a 49 lb per min compressor and it will support 400 hp...plus it only has like 4,000 miles on it and its just sitting in my garage...im hoping i dont have to buy a whole ss autocrap manifold just to get a flange



cut.......it...........off...........an........... .old...........mani!!!



i guess i can try to find an old one to cut it off of i only have the stock cast manifold



That'll work. Just need a hacksaw now



i can give you a CAD model for a S4 turbo flange. Any compitent machine shop should be able to make it for you.



i didnt know you could weld cast to steel???



awesome could you email it to me at mazdaturbo@gmail.com ....thanks



yeah. I could also machine it for you, if you can wait a week or so until i get the coolant system set up on my CNC mill.



yeah i could wait a week or so thanks man shoot me a pm when your ready



Sure you can, its just teidious and not that ****-hot.

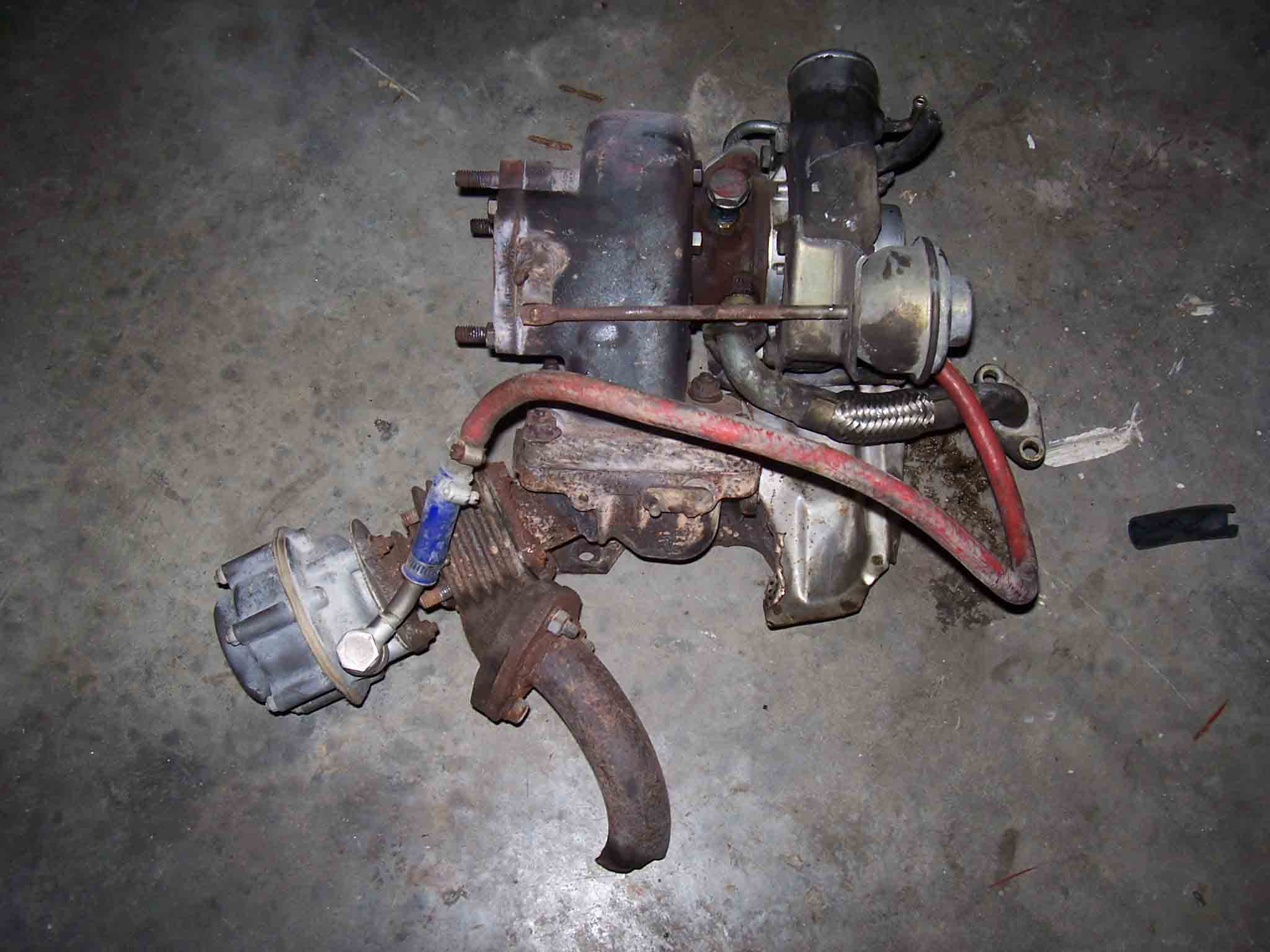

Here's what was done on an old S4 mani...

But having one made up isn't a big deal either, whichever floats you boat man.



sent you an email with the files
