soild motor mounts
#1
Banned. I got OWNED!!!
Thread Starter
Join Date: May 2004
Location: San Antonio
Posts: 778
Likes: 0
Received 0 Likes
on
0 Posts
soild motor mounts
i was wondering about creating some solid motor mounts on my lathe...on a difficulty level what do you guys think its gunna be like? and how many of you guys rock solid motor mounts...i have made plugs and smaller things on it so i mean i already have it planned out in my head im just wondering whay you guys think?
thanks
thanks
#2
1 miracle from sainthood
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
after looking at many dolid motor mounts they look easy. (i am a fabricator too on my lathe and bridgeport milling mach) you're basically making a hole in the center of your stock then turning it down until they are the proper dia(~2.5" +/- .1"). cut em to length and bolt them in.
Keep in mind that you have to make solid Engine Mounts, Tranny Mounts, and Rear Diff Mounts to keep stress off the drive system.
rumor that i have heard are you get more vibration through the car (duh) , but there is no lag for shifting and better response for acceleration. I think I'll make some poly or delrin ones and see how those are.
Ryosuke

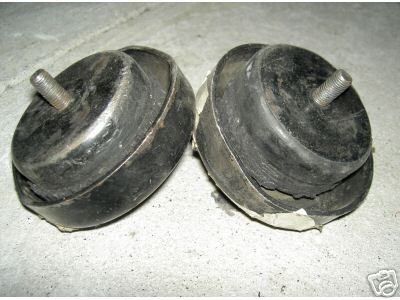

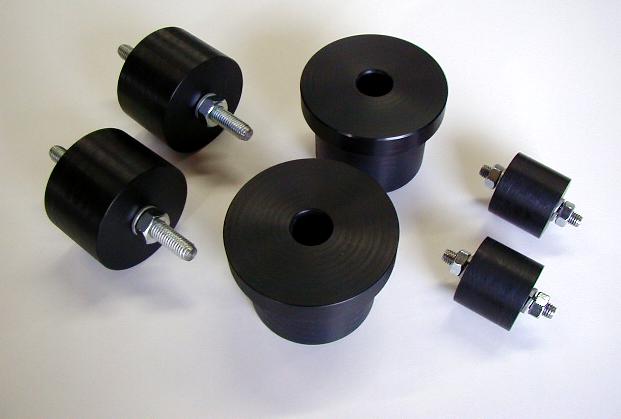

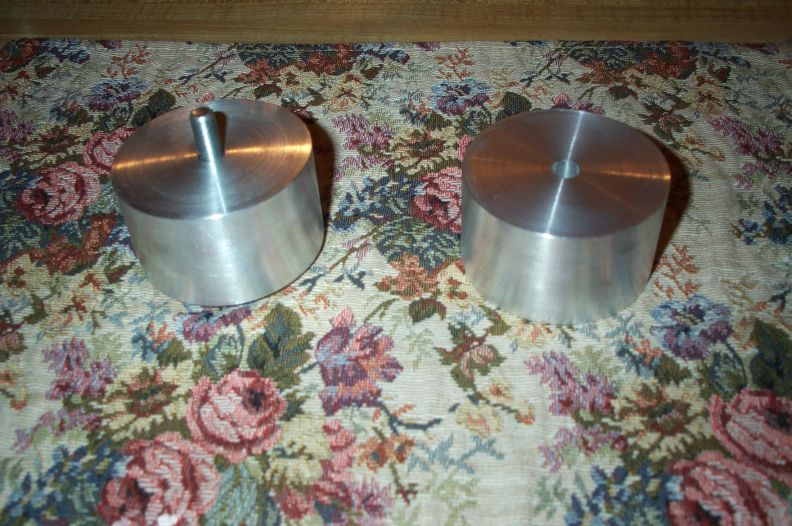

Pics: 1- original Mounts, 2- Solid 2.5" motor mounts, 3- Solid Tranny mounts w/bracket, 4- Polyetheline mounting set motor, tranny, Diff
Keep in mind that you have to make solid Engine Mounts, Tranny Mounts, and Rear Diff Mounts to keep stress off the drive system.
rumor that i have heard are you get more vibration through the car (duh) , but there is no lag for shifting and better response for acceleration. I think I'll make some poly or delrin ones and see how those are.
Ryosuke
Pics: 1- original Mounts, 2- Solid 2.5" motor mounts, 3- Solid Tranny mounts w/bracket, 4- Polyetheline mounting set motor, tranny, Diff
#3
BRAAAAAP pssh BRAAAAAP
iTrader: (11)
Join Date: Mar 2004
Location: cali
Posts: 1,461
Likes: 0
Received 0 Likes
on
0 Posts
i have them and like that there is no play in the motor mounts nor tranny but it does give some vibration not too bad but then again mine is not a daily driver i think for a daily driver i would prefer stock or the extra firm but not poly or solid
#4
1 miracle from sainthood
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
good to know Cosmo, i was thinking of making myself a set out of Delrin or PolyU, but knowing that my car will be a daily drive I may just go more for an engine torque brace to absorb the rotation during... spirited driving.
Ryosuke
Ryosuke
#5
Crash Auto?Fix Auto.
iTrader: (3)
I run solid mounts on my 87...I drove it daily last summer - MINOR vibrations but really there is no actual NEED to go solid at those horsepower levels........with that said.....I will be TO4-S'ing this summer and I just ordered the poly drivetrain mount set.......
