S5 T2 exhaust?

Thread Tools

Search this Thread

Old 11-09-12, 08:09 AM
  #1
Full Member

Thread Starter
iTrader: (3)

RX-7FCS5's Avatar

Join Date: Sep 2012
Location: Edmonton alberta
Posts: 192
Received 5 Likes on 3 Posts
S5 T2 exhaust?
Hey, so clearly I'm new at all of this hahaha but anyways, I'm stumped on another thing, how is the turbo exhaust run? Does it just go from the down pipe to basically exhaust or what? And help would be great!
RX-7FCS5 is offline
Reply Like
Old 11-09-12, 08:18 AM
  #2
Senior Member

iTrader: (7)

MMoore4545's Avatar

Join Date: Dec 2008
Location: WNC
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
Factory? Aftermarket? Emissions Compliant?

Factory is:
Downpipe/Precat into a connecting pipe into a Main Cat into the Y Pipe and finally into the mufflers.
MMoore4545 is offline
Reply Like
Old 11-09-12, 10:38 AM
  #3
Full Member

Thread Starter
iTrader: (3)

RX-7FCS5's Avatar

Join Date: Sep 2012
Location: Edmonton alberta
Posts: 192
Received 5 Likes on 3 Posts
Okay, but it goes basically out the block, turbo and then the down pipe?
RX-7FCS5 is offline
Reply Like
Old 11-09-12, 12:42 PM
  #4
Senior Member

iTrader: (7)

MMoore4545's Avatar

Join Date: Dec 2008
Location: WNC
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
yep, that's how it goes

From the block, through the manifold, then the turbo, then the downpipe to the rest/
Are you planning on modifying it?
MMoore4545 is offline
Reply Like
Old 11-09-12, 05:46 PM
  #5
Full Member

Thread Starter
iTrader: (3)

RX-7FCS5's Avatar

Join Date: Sep 2012
Location: Edmonton alberta
Posts: 192
Received 5 Likes on 3 Posts
No, just my '91 T2 project car came without any of the exhaust so I have to buy all new, well new to me at least
RX-7FCS5 is offline
Reply Like
Old 11-10-12, 08:56 AM
  #6
Senior Member

iTrader: (7)

MMoore4545's Avatar

Join Date: Dec 2008
Location: WNC
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts

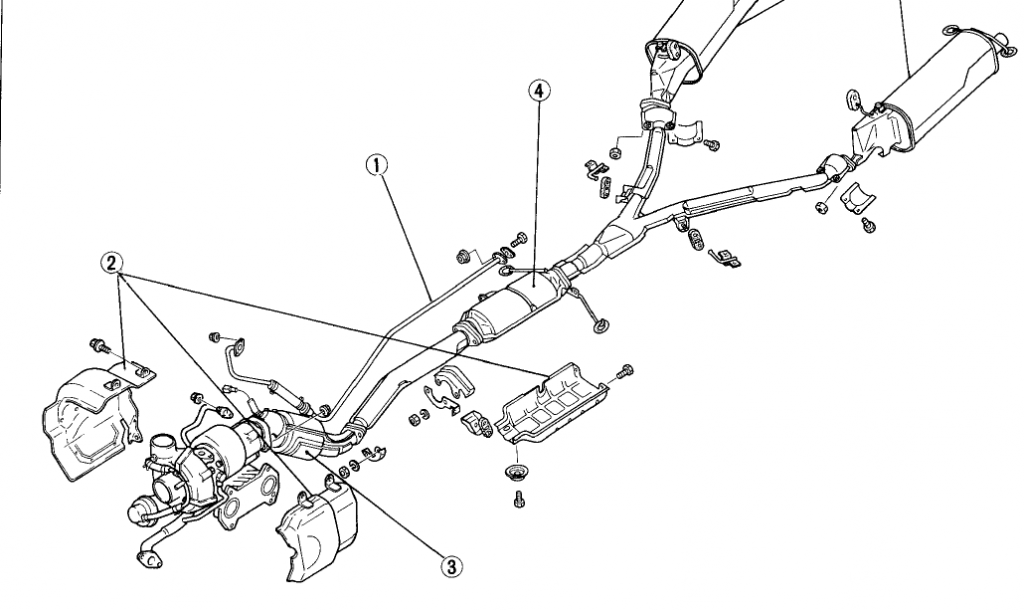

Right on, here's a diagram of the whole system Name: exhaustfactory.png Views: 42 Size: 309.5 KB


Also, I am sure you're aware if you upgrade parts the factory wastegate will cause your boost will creep on you pretty hard, into fuel cut unless you buy a FCD
MMoore4545 is offline
Reply Like
