S5 Fuel injector installation
Can someone help me? Which way do the plugs on the primary fuel injectors face? I think the face the middle of engine right? Also do the injector plugs on the end of the harness go to the primary injectors? Thanks
#5
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Pics

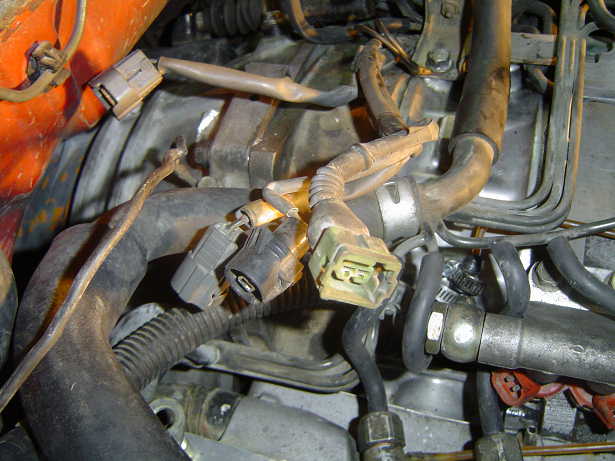

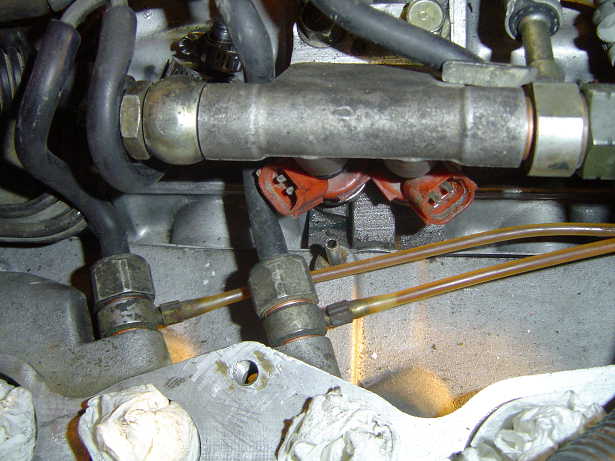

here are some pics. Are the injectors installed in the right position? Also do these plugs at the end of harness go to primary or seconday injectors?
#6
just dont care.
iTrader: (6)
turn those primary injectors around so the plugs are facing the drivers side.
also, those plugs at the end of the harness go to the secondaries. the ones farther up the harness (not pictured) go to the primaries. the other two plugs in that pic (square green one and black round one) go to the back of the water pump housing.
also, those plugs at the end of the harness go to the secondaries. the ones farther up the harness (not pictured) go to the primaries. the other two plugs in that pic (square green one and black round one) go to the back of the water pump housing.
Trending Topics
#9
Jesus is the Messiah
Originally Posted by jacobcartmill
turn those primary injectors around so the plugs are facing the drivers side.
also, those plugs at the end of the harness go to the secondaries. the ones farther up the harness (not pictured) go to the primaries. the other two plugs in that pic (square green one and black round one) go to the back of the water pump housing.
also, those plugs at the end of the harness go to the secondaries. the ones farther up the harness (not pictured) go to the primaries. the other two plugs in that pic (square green one and black round one) go to the back of the water pump housing.
#10
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
I left them facing this direction and arranged the harness so the plugs would reach. I have the primary injector plugged into the connector at the end of the harness. Secondaries will be plugged from the plugs near the acv plugs on the harness....
