1coolmazda

iTrader: (7)

Hello,

I have a new motor and I am trying to figure out if it is a s4 or s5 it has Electric Oil Metering Pump, That I know comes on the s5 but did s5 come with EGR valves because mine has a EGR valve and Electric Oil Metering Pump?

Thanks

need RX7

iTrader: (4)

No EGR on S5s. It could be an S4 with S5 front cover, or a rebuilt S5 with S4 plates[s].

Turbo II Rotor

iTrader: (2)

A picture is worth a thousand words.

1coolmazda

iTrader: (7)

Hello,

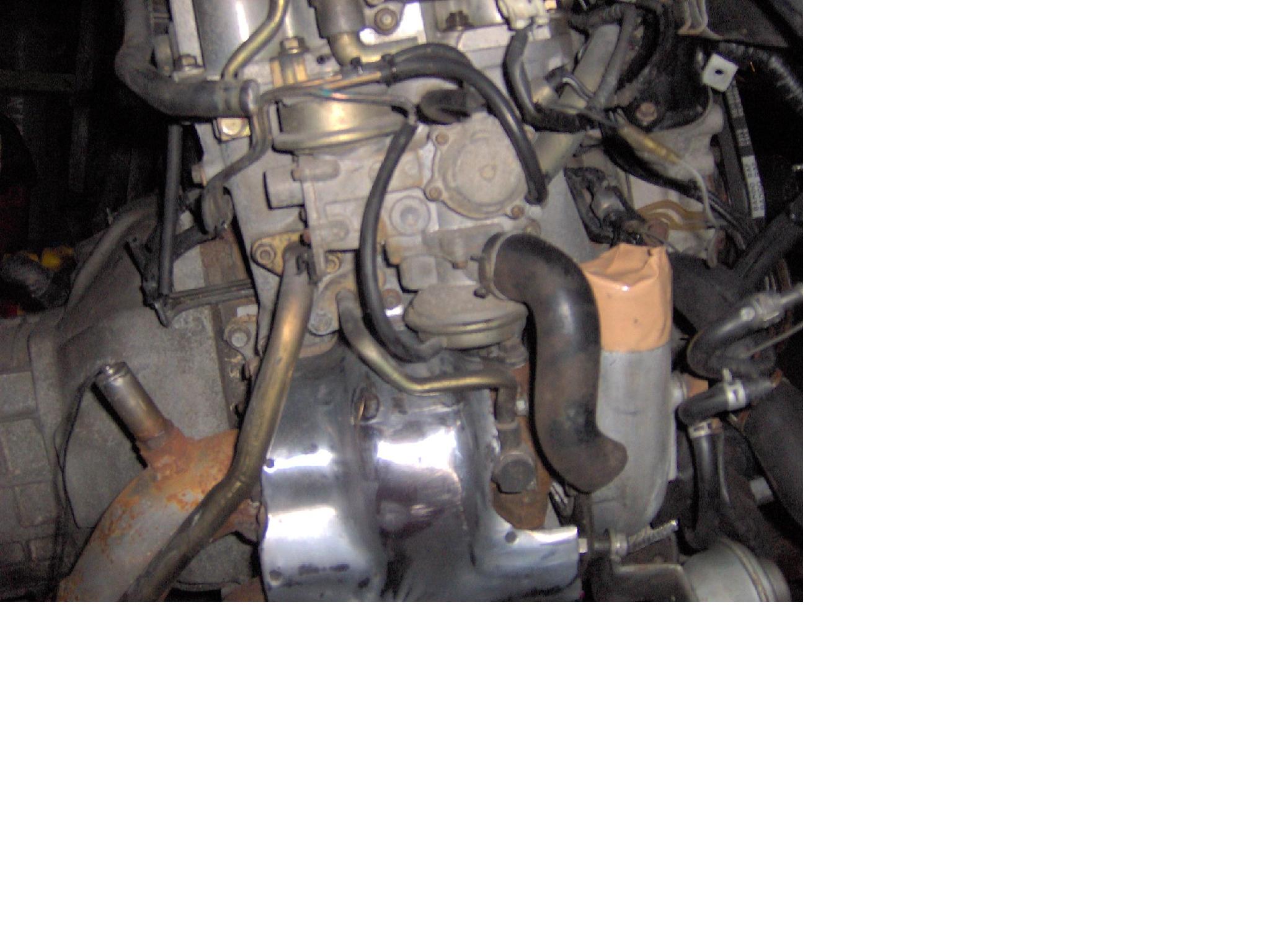

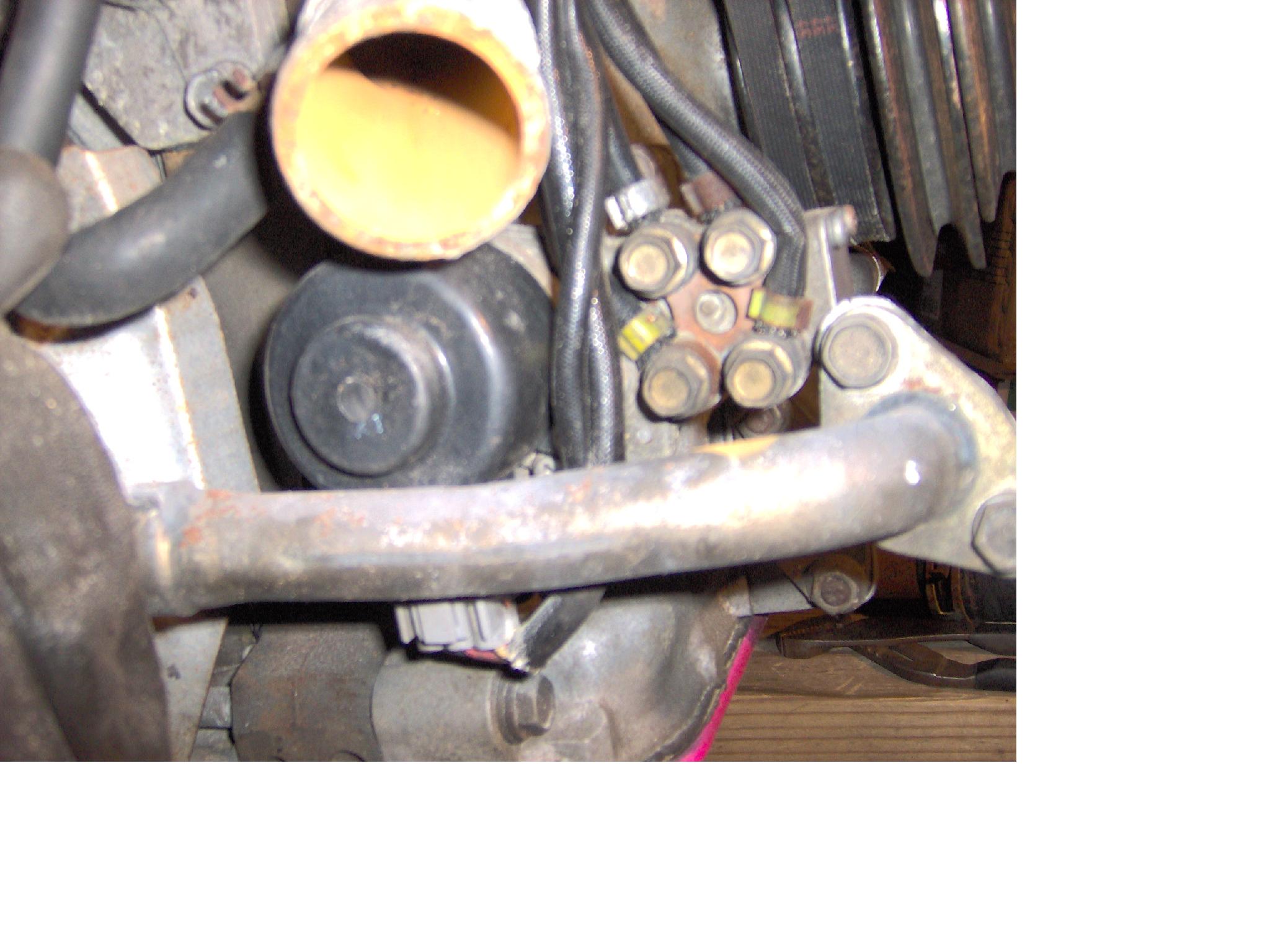

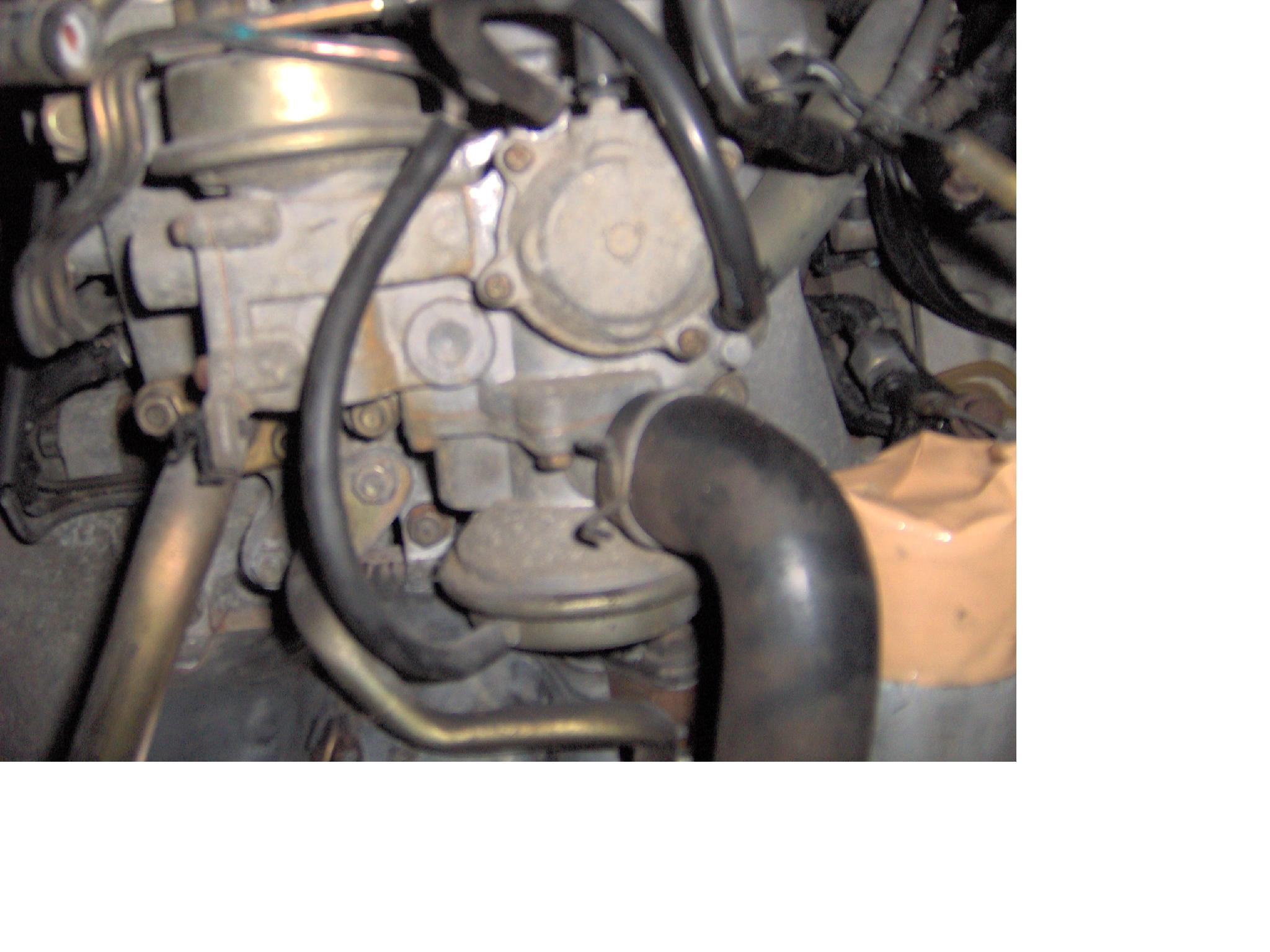

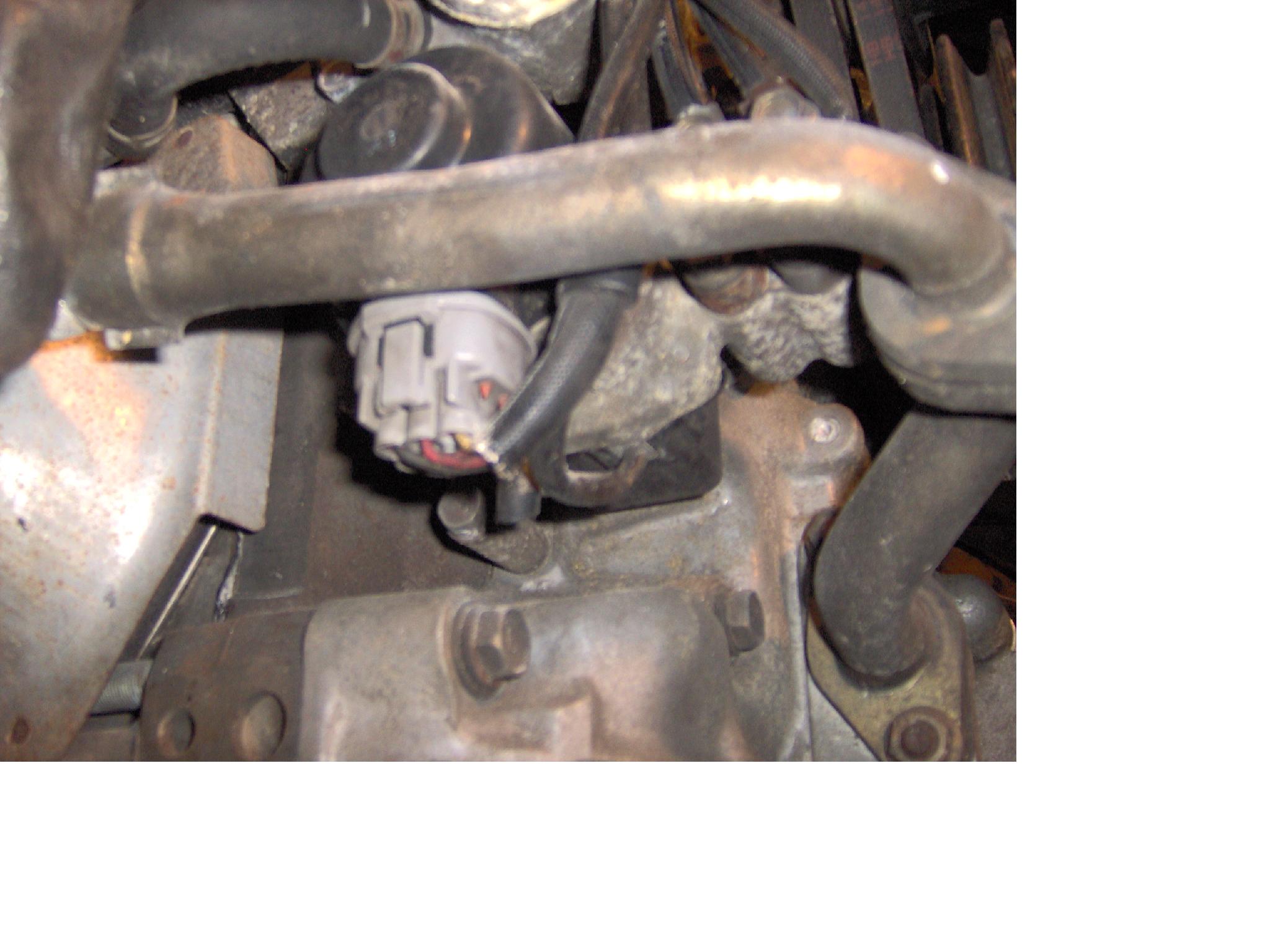

Here are some pictures of the EGR valve and the Electric Oil Metering Pump.

Turbo II Rotor

iTrader: (2)

That's an S5, it has a plastic thermostat neck.

K-Tune

iTrader: (26)

agreed, S5

RotaryRocket88

iTrader: (7)

That's not an EGR valve, it's the air control valve (ACV).

This is what an EGR looks like (S4s only):
http://www.mazdatrix.com/B-EGR.HTM

And yeah, that's a S5 motor. The turbo is clearly S5 along with the OMP & water filler neck. I can tell it's J-spec too from the brake booster hardline on the LIM.
