Removing cat FC RX7
#1
FC3C
Thread Starter
Removing cat FC RX7
I was wondering of how difficult is it to remove the cat off my s5 vert. I want to install some headers which I already have (RB streetable headers). My local muffler shop will just cut off the end of the cat since it is welded due to a cat back I already have. What tools will I need? I tried looking up videos on how to do it but I just couldn't find anything. Not even on any forum. I would really appreciate for any help.
#2
MECP Certified Installer
It is against US federal law to remove a catalytic converter unless removal is for replacement for a stock or more efficient catalytic converter.
With the disclaimer out of the way, the stock cat is kind of a bitch to get off. It has 2 studs on each side and the bolts are 17mm if I remember correctly (it's been years since I *cough* replaced my main cat).
If you unbolt it, the next step is making yourself able to maneuver the "cat back" portion of the exhaust. You need to do this in able to pull the studs free from the front section that is ridged and cannot be moved.
Easy way: Pop all of the exhaust doughnuts and drop the whole cat back section off the car and just slide the cat out. The doughnuts are on there tight so you need a LONG screw driver or pry bar to get them off.
Lazy way: This is how I did it in fear of tearing the rubber on the hangers, especially on the rear. Pop the 2 exhaust doughnuts closest to the cat on the y pipe ( still need large screw driver or pry bar) then you can maneuver the back section down to clear the studs, but you must be careful not to mare your rear bumper doing this.
With the disclaimer out of the way, the stock cat is kind of a bitch to get off. It has 2 studs on each side and the bolts are 17mm if I remember correctly (it's been years since I *cough* replaced my main cat).
If you unbolt it, the next step is making yourself able to maneuver the "cat back" portion of the exhaust. You need to do this in able to pull the studs free from the front section that is ridged and cannot be moved.
Easy way: Pop all of the exhaust doughnuts and drop the whole cat back section off the car and just slide the cat out. The doughnuts are on there tight so you need a LONG screw driver or pry bar to get them off.
Lazy way: This is how I did it in fear of tearing the rubber on the hangers, especially on the rear. Pop the 2 exhaust doughnuts closest to the cat on the y pipe ( still need large screw driver or pry bar) then you can maneuver the back section down to clear the studs, but you must be careful not to mare your rear bumper doing this.
#4
MECP Certified Installer
May I suggest that you sell your old cat to a recycler? I sold mine for $400 in Garland.
#5
FC3C
Thread Starter
#6
MECP Certified Installer
Penetrating lube is a must.
As far as recyclers, that was years ago so call around. I had one recycler quote me $12 and I laughed and hung up. Rx7 cats are the biggest cats on the market so you should get at least at bare minimum $300. Just got to get on the phone and call.
As far as recyclers, that was years ago so call around. I had one recycler quote me $12 and I laughed and hung up. Rx7 cats are the biggest cats on the market so you should get at least at bare minimum $300. Just got to get on the phone and call.
Trending Topics
#10
Living on the North Coast
iTrader: (31)

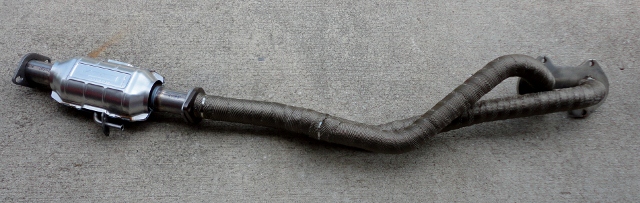

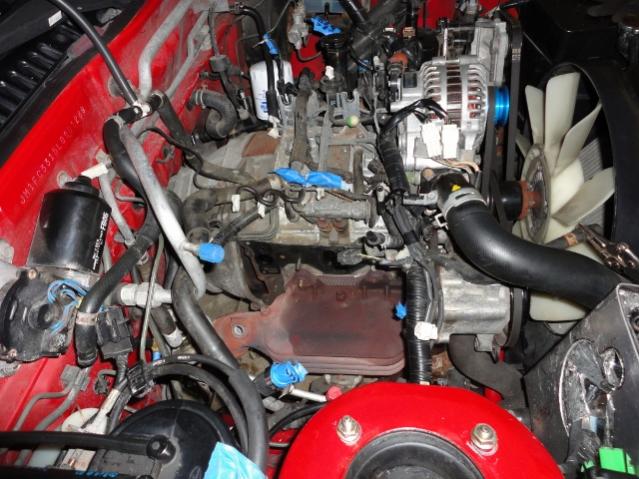

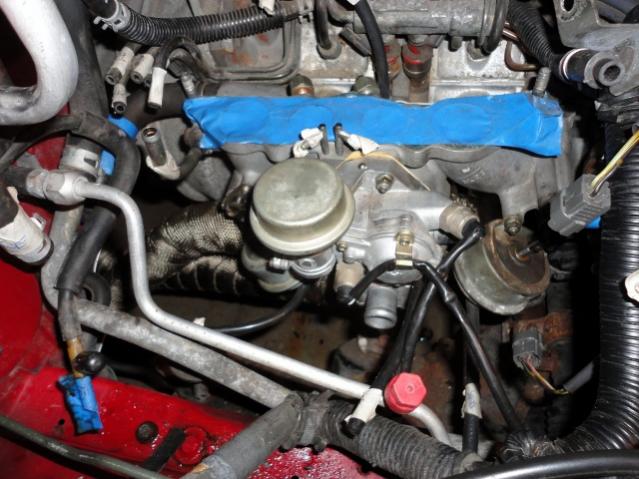

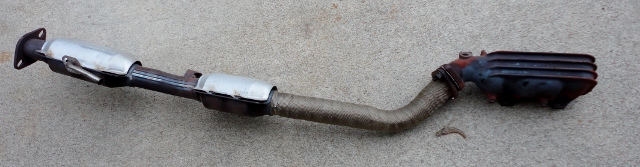

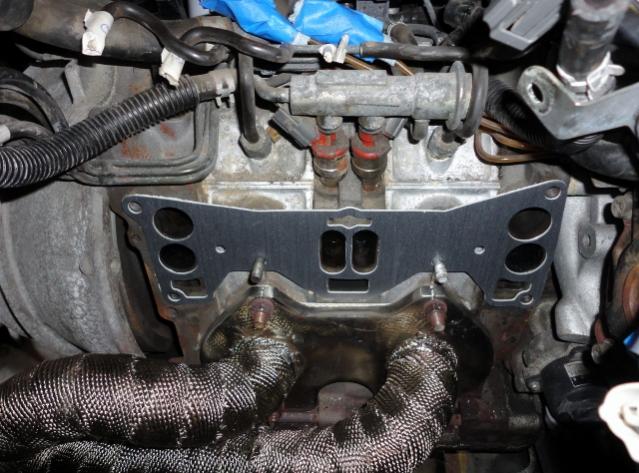

I replaced my factory S5 pre-cat and main cat assembly with a SS CorkSport shorty header (with DEI Titanium wrap) and CatCo main cat. The car was on jack stands, it much easier with the intake removed (working on the 6-port setup and installing PineApple sleeves). But it would have also been easier with the car up in the air, but I don't have a lift at home.
#13
MECP Certified Installer
The RX7 main cat is one of the largest catalytic converters ever fitted to a passenger car. I pulled up to the recylers place and the guy standing there got on the radio and said "Uh, this ones a monster" and the guy on the other end said "Must be from an RX7, give him $320".
