BklynRX7

WHat are the 2 relays behing the passenger headlight? It seems my fake K&N filter (came with the car) was rubbing against some wires and an unused a/c line that sit below it. Well not onyl was the filter torn open but the wire screen of the filter shredded some wires and almost halved the ac line.

The wires are attached to 2 small relays right behind the headlight next tot he low impediance resistor box. I check haynes and searched but could find an answer, atleast none i could understand.

HAILERS

In spite of common folk lore, the early RX-7 had headlight retractor relays. I believe that is what your seeing.

I made a post on these relays in the past and gave part numbers, locations wire colors etc. It's out the somewhere.

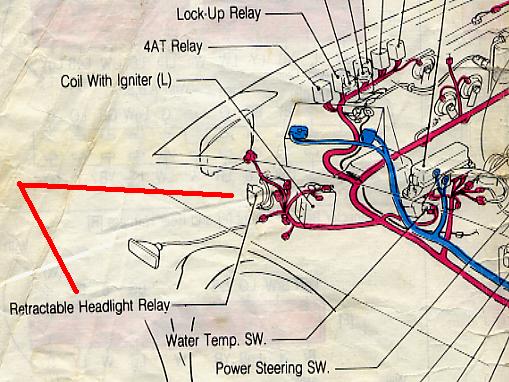

EDIT: Here is a thread out of the recent past with a picute of one and a lot of blather.. https://www.rx7club.com/forum/showth...adlight+relays

E https://www.rx7club.com/forum/attach...chmentid=84700

BklynRX7

I dont think they are headlight relays since the wires are shredder to **** and my headlights still work perfectly fine.

HAILERS

Well then read the FSM. It's free and online.

If you want to know what a plug does in life you have to give the wire colors,the number of wires and the exact location.

KompressorLOgic

iTrader: (6)

lol i had my filter do the same thing!!!, it cut my AC line over time.... and it was charged too .....

BklynRX7

eesh!!

HAILERS

On 86 non turbo there is a Air Bypass Solenoid Relay there. It has four sockets/wires. One Black, one Black/White, one Black/Yellow and a Red/Yellow.
