2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

rear counter weight

Thread Tools

Search this Thread

Old Jun 29, 2011 | 10:33 AM
  #1
youngfc's Avatar
Thread Starter
Full Member
iTrader: (1)

Joined: Apr 2011
Posts: 160
Likes: 0
From: wilmington nc
rear counter weight

it wont come off like the front one did. is there a special way to do it or is this just stuck.its on a auto car.
il post pics in a min.
Reply
Old Jun 29, 2011 | 10:47 AM
  #2
youngfc's Avatar
Thread Starter
Full Member
iTrader: (1)

Joined: Apr 2011
Posts: 160
Likes: 0
From: wilmington nc
pics

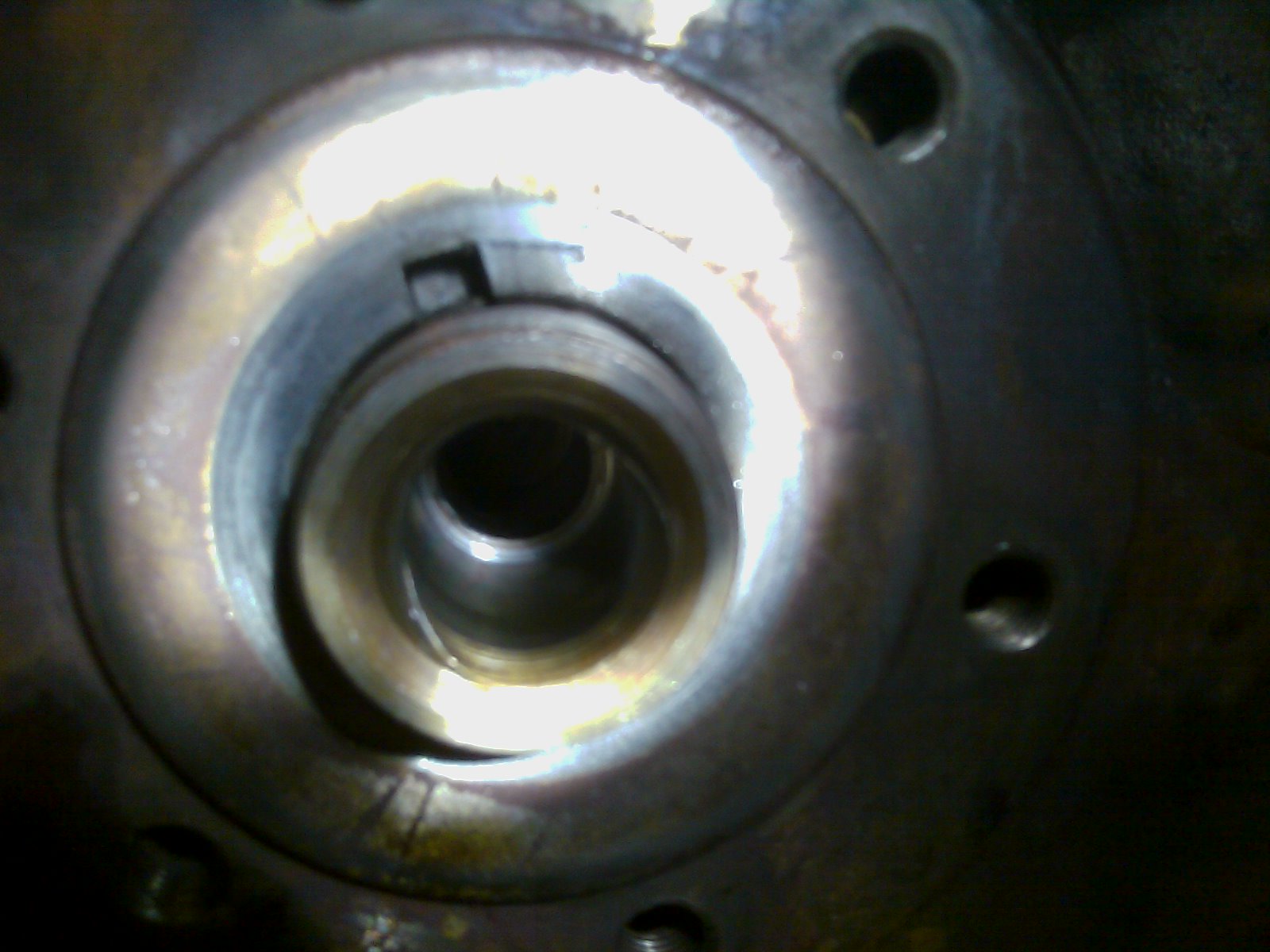

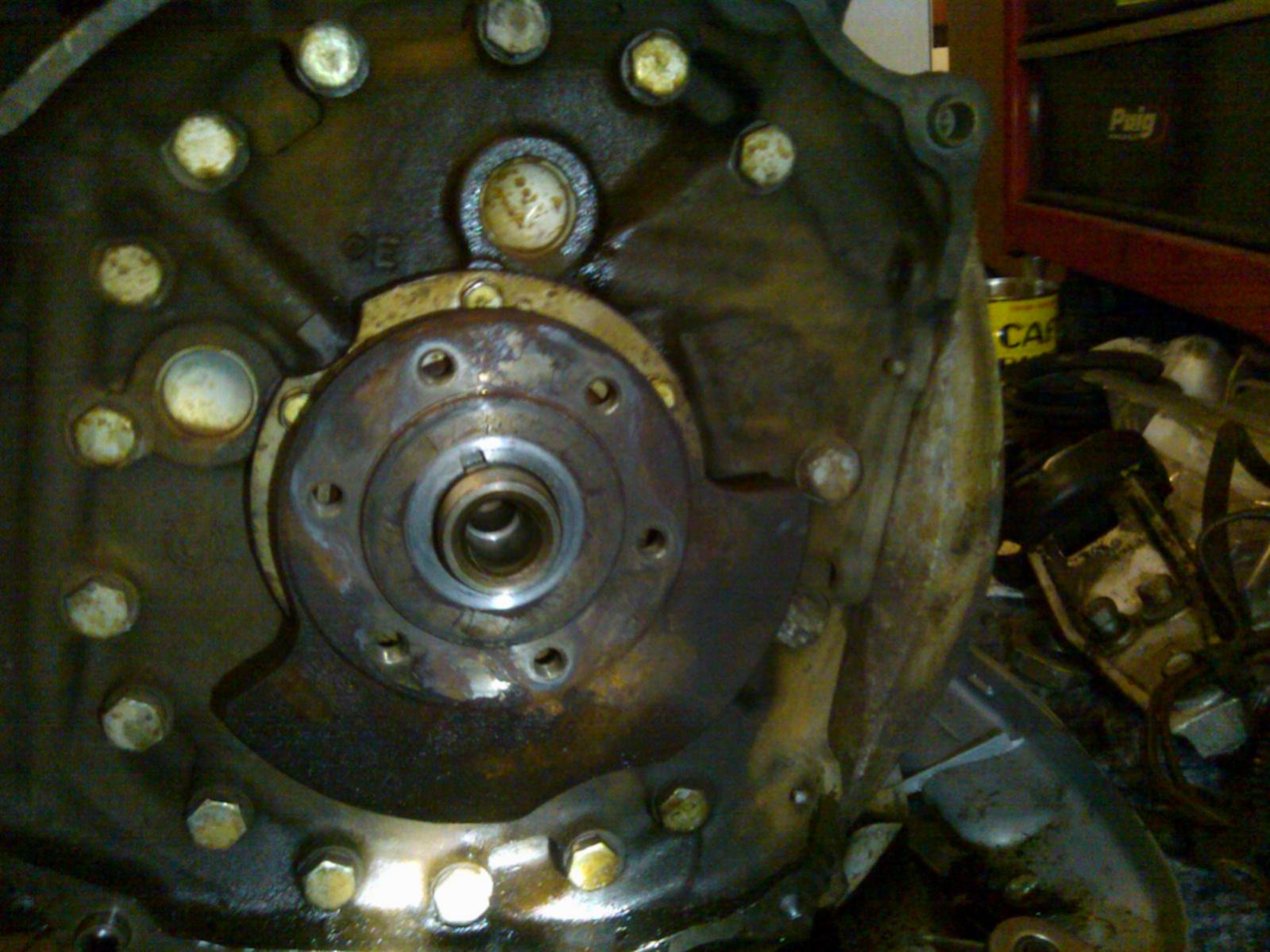

Attached Thumbnails rear counter weight-028.jpg   rear counter weight-029.jpg
Reply
Old Jun 30, 2011 | 10:38 PM
  #3
youngfc's Avatar
Thread Starter
Full Member
iTrader: (1)

Joined: Apr 2011
Posts: 160
Likes: 0
From: wilmington nc
can nobody help me?
Reply
Old Jul 1, 2011 | 02:51 AM
  #4
TheAbsence's Avatar
s4 Pride
Tenured Member 15 Years
iTrader: (19)

Joined: Oct 2006
Posts: 3,350
Likes: 3
From: Rancho Cucamonga, CA
You posted in the wrong section buddy, ask a moderator to move this to the 2nd gen tech section.
Reply
Old Jul 1, 2011 | 03:16 AM
  #5
bumpstart's Avatar
talking head
Tenured Member 05 Years

Joined: Apr 2008
Posts: 2,775
Likes: 15
From: Perth, WA, OZ
take a thin piece of metal plate ( i use the clutch inspection clover off top of motor )
and wedge it behind the counterweight ,, this is to protect the rear seal
wind in a couple of bolts that suit the threads in the weight so that they bite onto the tin plate and strain on the weight

tap the weight edge with soft blow hammer and it should jump off
PS
as a good work practice it is advisable you leave the nut on by a few threads to catch the weight ( or more importantly a flywheel ) so that it doesnt jump right off onto floor or toes and fingers
Reply
Old Jul 2, 2011 | 12:17 AM
  #6
youngfc's Avatar
Thread Starter
Full Member
iTrader: (1)

Joined: Apr 2011
Posts: 160
Likes: 0
From: wilmington nc
thanks and can any moderators move this to the 2nd gen tech section.please
Reply
Old Nov 9, 2011 | 05:16 PM
  #7
youngfc's Avatar
Thread Starter
Full Member
iTrader: (1)

Joined: Apr 2011
Posts: 160
Likes: 0
From: wilmington nc
how about on a stick engine? just got one and she needs a rebuild
Reply
Old Nov 9, 2011 | 08:13 PM
  #8
Derekcat's Avatar
Rotary Zealot!
Tenured Member: 20 Years
iTrader: (8)

Joined: Jun 2004
Posts: 1,736
Likes: 2
From: Milwaukie, Or
The flywheel on a manual is removed by:
Installing the nut a few turns and smacking the outer edge - NOT the friction surface NOR the ring gear - one of the flat spots that the pressure plate bolts to, with a hammer,alternating sides, until it's loose.
Reply
