Quick Vaccume question

Im looking at the vacumme diagram and im unsure where what this is going to plug into.. Any help? Its right under the cold start which I just blocked off.

Reply Like

04-18-10, 01:58 PM

Stefan2057

In Atlanta? Hit me up.

Thread Starter

Join Date: Apr 2005

Location: Atlanta

Posts: 186

Likes: 0

Received 0 Likes on 0 Posts

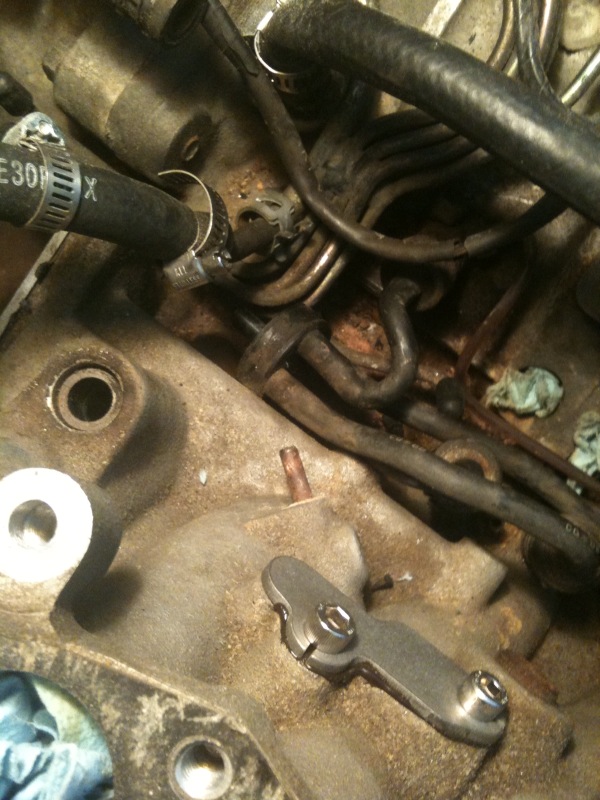

forgot photo, or it didn't work sorry

Attached Thumbnails

Reply Like

04-18-10, 07:16 PM

beefhole

Boosted. I got BLOWN!!!

iTrader: (29)

Join Date: Sep 2003

Location: Queens, NY

Posts: 3,742

Likes: 0

Received 1 Like on 1 Post

The one dead center? That's the Fuel Pressure Regulator source. Best to plug that one back in

Reply Like

04-18-10, 09:03 PM

Stefan2057

In Atlanta? Hit me up.

Thread Starter

Join Date: Apr 2005

Location: Atlanta

Posts: 186

Likes: 0

Received 0 Likes on 0 Posts

To the primary fuel rail? But I replaced the pulsation dampener with a banjo bolt so do I just cap this off?

Reply Like

04-18-10, 09:23 PM

hiroichi1515

Rotary Enthusiast

iTrader: (17)

Join Date: Dec 2007

Location: Texas

Posts: 785

Likes: 0

Received 0 Likes on 0 Posts

No, the primary fuel rail has the pulsation dampener. The secondary has the fuel pressure regulator at the end. You connect a vacuum line from the nipple on the lim to the fpr nipple.
