quick coil question (help)
ok i pulled my trailing coils for cleaning and painting.i belive i got some wires mixed up.will one of you guys pull the caps off the trailing coils and tell me what color wires are doing where?i have 2 beigh,1 blue,and 1 black.also which coil is for the front rotor?is the front coil for the front rotor?
thanx again fella's
thanx again fella's
#2
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
The Factory Service Manual can be found in the FAQ For FC thread. It contains all this information and more, and is an essential tool for any sort of service work that needs to be performed on these cars.
Additionally, the Haynes service manual for the 1986 thru 1991 RX-7 (both turbo and NA) can be found at most local auto parts stores or purchased from any good bookstore (ISBN number 1 56392 007 7). It is only about $25 and is a great quick reference for things like this. Not only does it contain most of the information in the FSM condensed into an easy to read format, but it includes full wiring diagrams as well.
These manuals will answer 99% of service related questions for the car and if you intend to do your own repair work, you will need at least one of them. Preferably both, since the FSM is a free download.
Additionally, the Haynes service manual for the 1986 thru 1991 RX-7 (both turbo and NA) can be found at most local auto parts stores or purchased from any good bookstore (ISBN number 1 56392 007 7). It is only about $25 and is a great quick reference for things like this. Not only does it contain most of the information in the FSM condensed into an easy to read format, but it includes full wiring diagrams as well.
These manuals will answer 99% of service related questions for the car and if you intend to do your own repair work, you will need at least one of them. Preferably both, since the FSM is a free download.
#4
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts

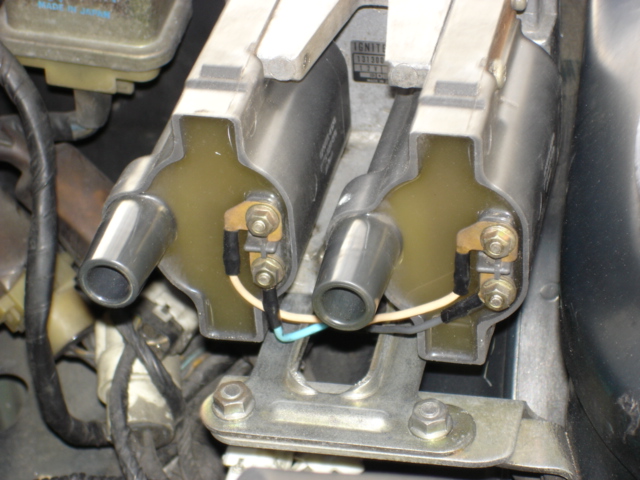

Next time take a photo or write it down before pulling it apart... ![Wink](https://www.rx7club.com/images/smilies/wink.gif)
https://www.rx7club.com/attachment.p...hmentid=206408
This is one of the very few things the FSM or Haynes don't actually cover, since pulling the coils apart is not something Mazda would do. They'd just replace them. But definitely follow Aaron's advice anyway.
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
https://www.rx7club.com/attachment.p...hmentid=206408
This is one of the very few things the FSM or Haynes don't actually cover, since pulling the coils apart is not something Mazda would do. They'd just replace them. But definitely follow Aaron's advice anyway.
#5
adiabaticly inefficient
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Aug 2001
Location: nw houston,TX or w. hollywood,CA
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NZConvertible
Next time take a photo or write it down before pulling it apart... ![Wink](https://www.rx7club.com/images/smilies/wink.gif)
https://www.rx7club.com/attachment.p...hmentid=206408
This is one of the very few things the FSM or Haynes don't actually cover, since pulling the coils apart is not something Mazda would do. They'd just replace them. But definitely follow Aaron's advice anyway.
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
https://www.rx7club.com/attachment.p...hmentid=206408
This is one of the very few things the FSM or Haynes don't actually cover, since pulling the coils apart is not something Mazda would do. They'd just replace them. But definitely follow Aaron's advice anyway.
thanx
