IhartMyFC

will i need a exhaust spacer if im putting a turbo on my n/a s4?

SonicRaT

iTrader: (6)

It depends on what turbo you're using, what manifold, if you've modified your existing intake in any way and about 5,000 other factors. My guess is you're probably new here (and probably to the car?) and just want to make it a turbo and haven't really looked at what will be involved? I'd suggest checking the FAQ at the top of the page, it explains pretty well all the different methods.

REDFC3S86

Yeah there's actually lots involved with adding a turbo to your n/a engine. My thought is: unless u have a fresh rebuilt or relatively healthy n/a motor to work with, just do a full t2 swap......why turbo a tired old engine that will blow in no time? Youd be back to square one again with a turbo and no motor.....

dvs71990

check out arroncakes website.

jjwalker

I'll probably be flamed for this, but why not spend the money on rebuilding and doing a nice port job on your motor? Money better spent than slopping a turbo on.

dawicka2

^^More time, more money and less horespower is usually not someone's goal.

+1 on aaroncakes website.......it may be possible that aaron could be maybe working on a turbo "KIT" for you 6 port guys.


john ny

jjwalker

Not what I mean. It would seem (due to lack of info) that the OP's intention is to slap a turbo on an engine that has not been rebuilt. What I am saying is, his money would be better spent rebuilding the motor getting it ported in the process, and worry about the turbo later.

austin2490

http://www.aaroncake.net/

Go there look around, see what your about to be getting into.

HAILERS

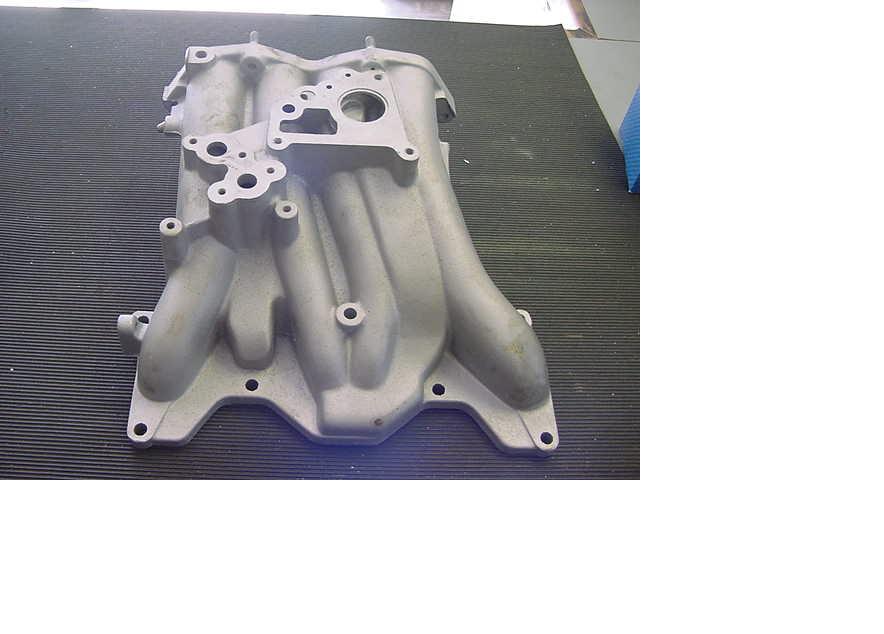

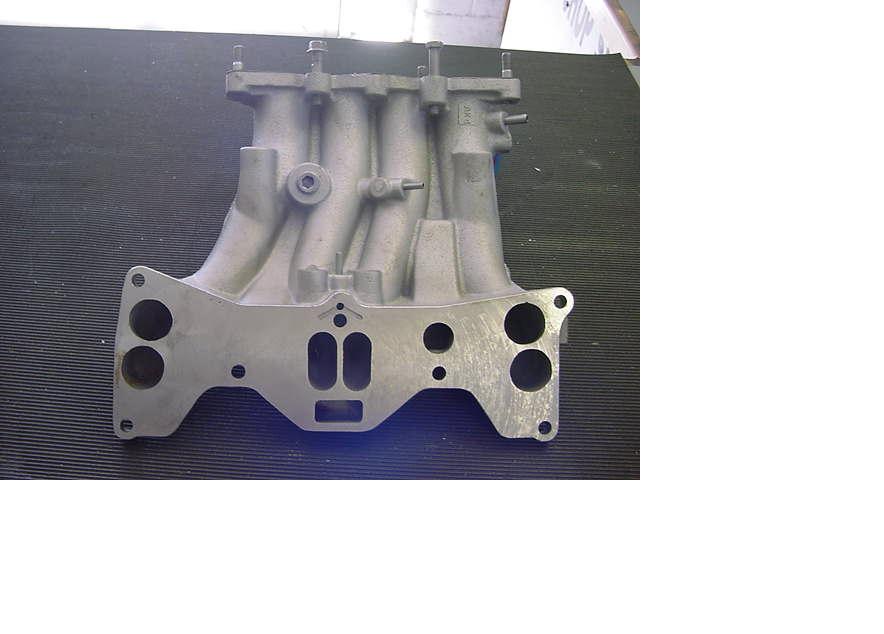

You don't need an exhaust spacer if you buy a turbo upper and lower intake manifold and either do some fabrication on the lower turbo intake manifold to match the non turbo intake ports OR buy a lower intake manifold from JAPAN2LA (or send your turbo lower intake manifold to him and let him machine/weld it right).

REDFC3S86

That's a nice looking manifold. I didn't realize there was a company that pre-fabbed these

dawicka2

There isnt. Japan2la is the most reliable jspec engine importer on this site, who also happens to machine the manifold.

jjwalker: If the engine has poor compression and he is going to slap the turbo on....then ofcourse its a bad idea. His engine would be like......DYNOMITE!!! If hes gotta be in there anyway, i agree with porting the engine, then turboing it.


OP: dont rush ****....but if you do have a healthy engine, properly turbo it, then tuning it is even more important.

John ny

IhartMyFC

the guy i bought the turbo from said it came off a s4 stock. so the turbo and exh. manifold are stock too. i just wanna put it on just to have a feel for the whole turbo thing. im not planning on going NHRA pro. lol. im pretty sure 6-8 psi is not bad to run. i appreciate those who gave me the advice to dump on a new engine or port it but i just want to be unique and do something cool. lol.

Hazard15301

iTrader: (5)

Blowing up your engine is not unique. Or cool. Actually it's been done many, many times...


Please do some research first. For the love of turbos everywhere. If you do what you are intending you will regret it in the end.

Scrims

iTrader: (2)

Rather more complicated than just slapping it on. You're going to want AT THE VERY LEAST a turbo II fuel pump, turbo II 550cc injectors, TII ecu (i've heard you can get away with the NA, but seems like a rather stupid idea imho), and a boost guage. Then you're going to need simple things, like an intercooler (and a hood if you go with the stocker), all the intake manifolds, and a downpipe.

Then on top of those, about a million other different little things, all so you don't blow it up. Pretty much leave anything out of that, especially the fuel, and you'll blow your engine very very quickly.

IhartMyFC

thanks guys i appreciate your concerns for the FC.

*TOUCH*

iTrader: (29)

as scrims said, its not just putting the turbo on. there are a couple of "main" ways to turbo your n/a, but no standards. everyones six port turbo is different, thats how custom it is. there is ALOT involved, the least of which is buying the right parts (which will all depend on whoch way you wanna do it). do LOTS of research or else you will have the car halfway apart and the end up having it in the garage for a year cuz your planning and executing simeoultaneously. gl man, if you take your time, find the info and really hink it through several times before even picking up a wrench/ordering a part, youll be fine

IhartMyFC

theres this video on you tube of a 6port na turbo. check it out this guy is only running 5psi though and he pushed 185whp. thats not bad. i think.

http://www.youtube.com/watch?v=ZD5aPAfhpzE

IhartMyFC

what do some of you think about that video? some one ask aaroncake to watch that one and get his opinion on that one.

KhanArtisT

iTrader: (2)

There was a guy here that put down 253whp@8psi on an S5 6PT with a Haltech. The setup will make more power than a TII and have better off-boost reponse. The conversion really is no big deal...I think its overhyped. It only sounds complicated because there are a lot of ways to do it.

Get some intake manifolds from Japan2LA, re-route coolant lines to go through the turbo, get an oil filter pedestal from Banzai for $25, remove and weld a fitting on your oil pan.

Thats IT for the custom stuff, everything else (ECU/SENSORS/TURBO/MANI/DP/INJECTORS/FD PUMP) will bolt on. Just read up on plumbing, and find a hardware store and plumbing store nearby. If you want the setup to be reliable make sure to use heat shielding and route lines/harness away from high-heat areas.

just startn

iTrader: (33)

Im running s4na motor, turbo rotors, 3mm seals, 3rd gen corners, stock ports, atkins built, microtech lt8. car put down a little over 300 on 10 pounds, BNR 3, 650's. So i started parting the car out over winter now its getting warm outside and i want the top down so i got a 88vert for free to put mine back together. New setup. same motor, same standalone, looking for some 1600's for my secondarys, and stole my brothers HX35 off is 300zx lol i think he might be pissed at first.

Aaron Cake

iTrader: (1)

Being different for the sake of being different is cool, but you can't "just put it on there". You'll need all the supporting mods to make it reliable. At 6-8 PSI (which I think isn't really worth it considering the labour involved) then you can get away with the NA ECU and an S-AFC, with a set of upgraded injectors. If you take the spacer approach (which is the worst way to do it) then you need to fabricate everything to fit. If you modify the TII lower intake, you can use all TII stuff and it bolts right on. Then again, if you are buying that much TII stuff, a TII block is cheap. Finally you could make a custom exhaust manifold. Space the turbo so you can keep the aux ports functional. That makes for a great setup. In all instances the stock turbo kind of sucks. Going to something aftermarket which will make more power for less boost will be a big increase in reliability. Run a standalone and you have nothing to worry about...assuming you can tune it.

Not much to say really. Looks like a 6 port block with all TII stuff. This works well but I always wonder why not go with a TII bock in this case?

*TOUCH*

iTrader: (29)

khan is definately right, at least halfway. its not as big a deal as everyone makes it seem, especially if you use TII intake components. this is what i did on my 6 port turbo and it is the most straightforward way to do it, much less headache and custom stuff than keeping your na intake.

however, the reason i told you to make sure you do the research is that first, your obviously new to fc's, and theres nothing worse then gettin your new ride and then getting bogged down on stuff when you were only trying to make it better. second, its the little things that create the biggest hang ups, and most of them are not "custom" problems. they are simply things that you forgot. also, depends on how far you wanna take it (swapping the tranny too? non-stock turbo? ss lines?). also,

*TOUCH*

iTrader: (29)

this is true, in most cases a full 4 port swap is the "best" choice. however, ppl have their reasons in some situations. mine was that i have just rebuilt the motor (0miles), massively streetported it and put TII rotors in it (it was for my previous F.I. setup). i was planning on goin turbo until it was already in the car!

Scrims

iTrader: (2)

HAHAHA, I know the owner of that car. Though that car now has a 13B-RE in it now.

the guy is actually helping me do my 6-port turbo project this summer. I have an s5 turbo and all the s4 TII intakes, including a modified lower intake. Plans for probably a BNR hybrid in the future, along with full standalone. I decided to do this instead of a full engine swap because I just rebuilt my NA engine not 5k ago, so it's very strong and healthy.

*TOUCH*

iTrader: (29)

just make sure you get an s5 turbo mani. the s5/s5 manis and turbos are not interchangeble.
