Pulley Installation/Timing, Help!

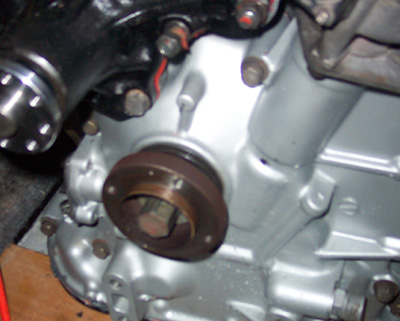

I removed my distributor and pulley and need to installed again. How can I install the pulley to be sure that the timing marks are at the right position? I looked at the haines book but I am still not sure.

Attached Thumbnails

Pulley Installation/Timing, Help!-pulley-installation.jpg

Reply Like

10-03-04, 08:35 PM

SonicRaT

Super Raterhater

iTrader: (6)

Join Date: Dec 2001

Location: NY, MA, MI, OR, TX, and now LA or AZ!

Posts: 10,624

Likes: 0

Received 2 Likes on 2 Posts

It only bolts on in one direction, the bolt holes are offset so that it can only fit back on in the right direction.

Reply Like

10-04-04, 07:18 AM

70ghiavert

Full Member

Thread Starter

Join Date: Jul 2004

Location: Florida

Posts: 69

Likes: 0

Received 0 Likes on 0 Posts

duh!

You are right. I should had look at it closer.

Thanks,

Edwin
