Post Pics of your FMIC setup
03-03-05, 11:35 PM
#1
Rotors? What Are Those?
Thread Starter
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
Post Pics of your FMIC setup
hey guys i just got my FMIC in but thing im afraid of is that the muffler shop wont be able to do the bend so im wondering if some people here can post pics of there intercooler how they mounted it and pics of the intercooler piping...
Thanks
TwEaK
Thanks
TwEaK
03-03-05, 11:47 PM
#3
first thing's first.... the muffler shop does have a mandrel pipe bender i hope?!
you can also have angled pipes cut and welded to get the right fitment. my FMIC project hasn't started yet and i don't plan on putting it in the traditional position way up front anyhow so it would be of little use to you.
you can also have angled pipes cut and welded to get the right fitment. my FMIC project hasn't started yet and i don't plan on putting it in the traditional position way up front anyhow so it would be of little use to you.
03-04-05, 09:54 AM
#6
Rotors? What Are Those?
Thread Starter
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
well thing is im not shure if the supports on the side of the intercooler will get in the way of the piping here are some pics (scroll down) https://www.rx7club.com/showthread.p...ighlight=TwEaK youll see my setup how it is.. give me your opinions
TwEaK
TwEaK
Trending Topics
03-04-05, 11:55 AM
#8
Mad Man
Search my posts, I've posted my set-up many times, 3 pipes, very stright shot, 33x10x2.5" FMIC. Or search Member cars on TeamFC3S.ORG under '88TIIs, and my name for more pics. Carl
03-04-05, 12:04 PM
#9
Senior Member
Join Date: Nov 2004
Location: co
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts
here is what he was talking about
http://www.teamfc3s.org/forum/member...tos&car_id=562
I am curious too because i have my core 24X10X3 sitting in my garage. I think Im going to mount it up front but the pic above(yellow) looks to be in the way of the rad how does that work.
http://www.teamfc3s.org/forum/member...tos&car_id=562
I am curious too because i have my core 24X10X3 sitting in my garage. I think Im going to mount it up front but the pic above(yellow) looks to be in the way of the rad how does that work.
03-04-05, 01:22 PM
#11
Banned. I got OWNED!!!
Join Date: Nov 2002
Location: San Jose, CA
Posts: 312
Likes: 0
Received 0 Likes
on
0 Posts
here you go.....http://photobucket.com/albums/v164/madrx7racer/FMIC/
hope it helps....I have the core but I need the piping also.....
hope it helps....I have the core but I need the piping also.....
03-04-05, 01:43 PM
#15
Locust of the apocalypse
Join Date: Apr 2003
Location: Directly above the center of the earth (York, PA)
Posts: 2,553
Likes: 0
Received 1 Like
on
1 Post
Pipes are 180 degree 2.5 inch mandrel bends, cut in half to make 90's, or more or less to get other angles. I ground them till they fit exactly and then marked them with a sharpie across the joints with "a" "b" ect on the marks so that the weld should could just line up the marks and put it together. Fit just like i fabbed it up when i got the pipes back
03-04-05, 01:44 PM
#16
Mad Man
Originally Posted by crashdummy
heres mine............
pics are kinda self explanatory
pics are kinda self explanatory
03-04-05, 01:47 PM
#18
Rotary Enthusiast
Join Date: Aug 2003
Location: columbia, md
Posts: 1,178
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Madrx7racer
How and where did u mount it? I can't tell by the pics.....May I add you pics to the folder above?
no prob..... it took about 4 hours maybe more to get everything in.......

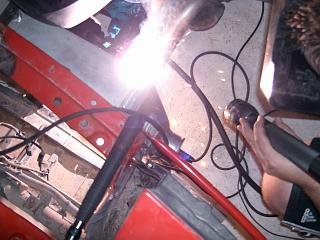

took soo long because its a little hard to weld on the ground (props to 2a+ron for the welding)
all custom mounting.... just mount it to wherever it fits....
i think the easiest way to get measurements for the piping is to use the flexible dryer hose.. get the shape and **** first then start cutting and welding.
03-04-05, 04:22 PM
#21
Mad Man
Originally Posted by bigturbo
sow hat do you ahve to do to make the turbo compressor housing point downward.
03-04-05, 07:17 PM
#22
Rotors? What Are Those?
Thread Starter
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
Years Of Decay could you give me some more detailed pictures of your setup my FMIC is exactly where yours is would like to see how you did that piping..
TwEaK
TwEaK
03-04-05, 11:36 PM
#23
Locust of the apocalypse
Join Date: Apr 2003
Location: Directly above the center of the earth (York, PA)
Posts: 2,553
Likes: 0
Received 1 Like
on
1 Post
Originally Posted by TwEaK
Years Of Decay could you give me some more detailed pictures of your setup my FMIC is exactly where yours is would like to see how you did that piping..
TwEaK
TwEaK

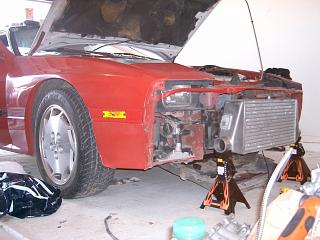

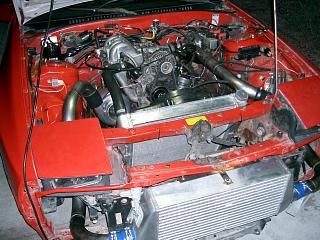

I cut holes here
and here

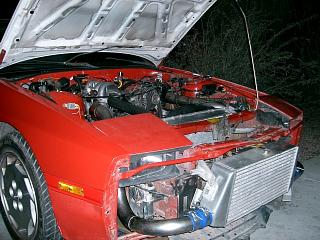

Pipes are made out of a 180 mandrel bend cut into two 90's and rotated 180 degrees and welded back together to make an S shaped jog through the radiator support.
03-04-05, 11:44 PM
#24
Locust of the apocalypse
Join Date: Apr 2003
Location: Directly above the center of the earth (York, PA)
Posts: 2,553
Likes: 0
Received 1 Like
on
1 Post
One word of advice.... there is one problem with mounting the IC like this.... it makes running an electric fan not a good idea if you have the stock bumber on the front...
the end tanks (mine are 3X8X3) take away about 48 square inches of duct space....
My black magic fan had a hard time pulling through the thicker Koyo rad AND the FMIC.. No prob with stock fan..n (in fact it runs a bit to cold in the winter..) but I'm working on making an aluminum underbelly pan to duct air in from under the FMIC and thus get more air to the rad with less restriction...... and I'll try the e-fan again.
the end tanks (mine are 3X8X3) take away about 48 square inches of duct space....
My black magic fan had a hard time pulling through the thicker Koyo rad AND the FMIC.. No prob with stock fan..n (in fact it runs a bit to cold in the winter..) but I'm working on making an aluminum underbelly pan to duct air in from under the FMIC and thus get more air to the rad with less restriction...... and I'll try the e-fan again.
